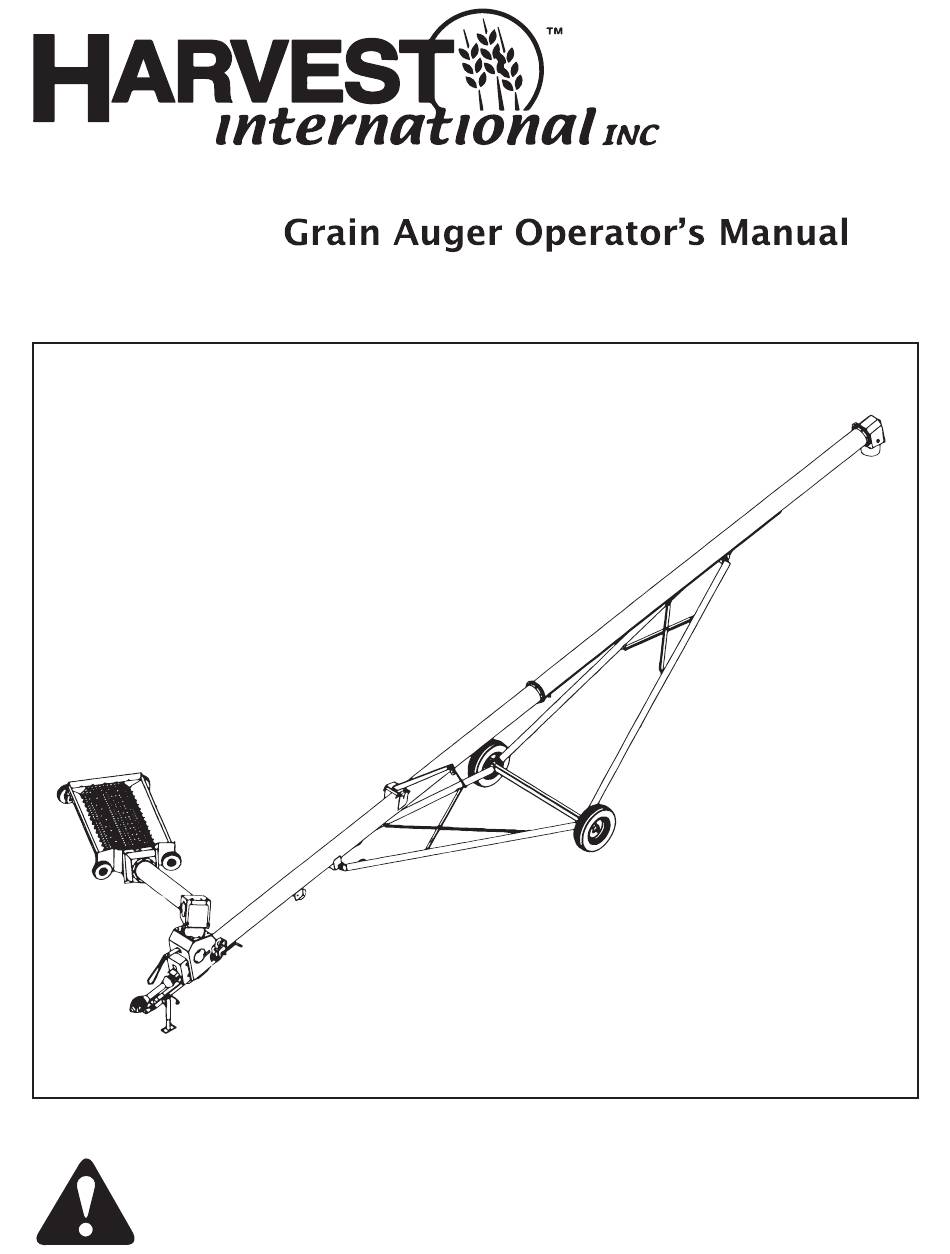

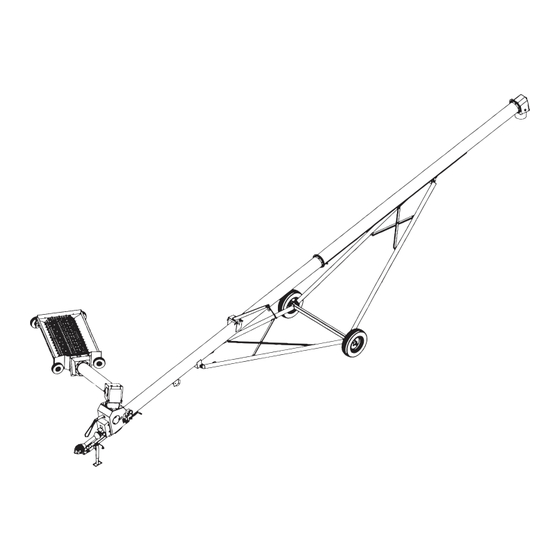

- Page 1 A1042 Read this manual before using product. Failure to follow instructions and safety precautions can result in serious injury, death, or property damage. Keep manual for future reference.
- Page 2 H10XX Series Augers: Important Notes At 15-20 miles, tire lug nut tightness and wheel hub temperature need to be checked. At 50-60 miles, check these a second time. For all models, the maximum transport speed is mph.
- Page 3 Harvest International thanks you for your purchase of the best quality auger on the market. We are proud to have you on our team. Our equipment is manufactured in the United States of America and is made to improve your farming operation. Before you operate this auger, we advise that you read this manual and familiarize yourself with each of the features.
-
Page 4: Table Of Contents
TABLE OF CONTENTS 1. Introduction_____________________________________________________4 2. Safety First______________________________________________________5 3. Transportation & Placement_________________________________________6 3.1 Before Transporting Your Auger______________________________________6 3.2 Transport Procedure_______________________________________________6 3.3 Placement of Auger_______________________________________________7 3.4 Final Placement__________________________________________________8 3.5 Lowering the Auger_______________________________________________9 4. Operation______________________________________________________10 4.1 Pre-Operation Checklist___________________________________________10 4.2 Auger Drive & Lockout____________________________________________10 4.3 Start Up &... -
Page 5: Introduction
Keep this manual handy for frequent reference and to pass on to new operators or owners. Call your Harvest International distributor or dealer if you need assistance, information, or additional copies of the manual. -
Page 6: Safety First
2. Safety First Safety is a priority in your everyday work habit, especially if you work with machinery. Whether you are an owner, an operator, or an employee, it is your responsibility to know the operational requirements and safety precautions of the machinery. -
Page 7: Transportation & Placement
Failure to do this could cause damage to the auger, and serious injury or death. All Harvest International augers have minimum clearance positions when in transport mode. Place auger in full down position. -
Page 8: Placement Of Auger
Transport the auger no faster than 15 mph. When roads are rough or surfaces are uneven, slow down to ensure safe travel. DANGER: Do not transport the auger on slopes greater than 20 degrees. This could cause the auger to tip, resulting in damage to the auger, and personal injury or death. -
Page 9: Final Placement
Make sure that the hitch is secured to the tractor, and that all hydraulic connections are tight and in good working condition. If there are any leaks or damaged hoses, you must replace these before using your auger. Replacement hoses and hose ends must have a minimum strength of 1900psi working pressure. -
Page 10: Lowering The Auger
Use tractor hydraulics to raise the auger into position. Slowly back the auger into position until the spout is over the opening of the bin or storage facility and use tractor hydraulics to slowly lower the spout into the opening. As soon as the auger is in position, the wheels of the auger must be chocked on both sides. -
Page 11: Operation
4. Operation Wear protective gear at all times when operating auger, such as hard hats, protective shoes, eye protection, and gloves. Do not wear loose clothing, and be sure that hair is tied back. 4.1 Pre-Operation Checklist Before operating the auger, the operator must follow this checklist: All safety shields are in place, secure, and in good working order. -
Page 12: Start Up & Break In
Drive System and PTO Driveline: Ensure that the PTO drive on the tractor is in the off position before starting the tractor. Stay clear of PTO hazard area. Do not exceed the maximum operation length of 34 inches of PTO driveline, or the maximum angularity of 30 degrees. -
Page 13: Everyday Operation
4.4 Everyday Operation WARNING: When auger is in operation, keep your hands, clothing, and other objects away from intake hopper, drive chains, and all other parts of auger to avoid personal injury. For normal auger operations, the following procedure and safety precautions are strongly recommended: Complete the pre-operation checklist before using your auger. -
Page 14: Completion & Cleanup
CAUTION: Starting the auger under load may result in damage to the auger. Make sure there is no blockage. 4.6 Completion and Cleanup At completion of operation, the auger needs to be moved into storage position. Make sure that the entire work area is clean, remove all supports and wheel chocks, move auger out of working position, and fully lower the auger (see lowering procedure below). -
Page 15: Hydraulics
Escaping hydraulic fluid can be nearly invisible under high pressure. Use some type of backdrop when searching for leaks. Harvest International augers have a velocity fuse for hydraulic safety. If the hydraulic line breaks, it locks the system. Our shut off valve is equipped with a flow restrictive orifice. -
Page 16: Cylinder Hydraulics
5.2 Cylinder Hydraulics The testing done on Harvest International auger hydraulics was done using a pressure gauge with 3000psi maximum rating. This was used simply as a guide. The psi requirements for an individual auger may vary slightly. Auger Size H1062 10”... -
Page 17: Storage & Maintenance
Always replace damaged or worn parts before using the auger. Use only replacement parts manufactured by Harvest International, Inc. Use of unauthorized parts will void the warranty of your auger. Contact your Harvest International dealer to order parts. Harvest International augers are designed and tested for a safe, efficient operation. -
Page 18: Storage Of Auger
Lube Recommendation: Lube cross and bearing every 8 hours of use. Lube telescoping members yearly. NOTICE: Replacement parts are not lubricated. When you receive these parts in, make sure to lubricate and tighten screws. Mechanical Chain Drive: Keep drive chain tension adjusted to about ¼” deflection by loosening the four bolts on the lower bearing, then retightening. -
Page 19: Appendix & Forms
" 1 8... - Page 20 " 1 9...
- Page 21 " 2 0...
- Page 22 " 2 1...
- Page 23 " 2 2...
-
Page 24: A1042 Parts Book
PART/ASSEMBLY DESCRIPTION MODEL(S) A1042 AUGER ASSEMBLY, A1042 DESCRIPTION ITEM NO. PART NO. INFEED HOUSING ASSEMBLY, A10XX PBA10003 TUBE ASSY,SWING HOPPER,10" PBA10004 TUBE ASSEMBLY, INFEED, A1042 PBA10009 TUBE ASSEMBLY, DISCHARGE, A1042 PBA10010 HOPPER ASSEMBLY, H1062, H1072, H1082, A1072 PBH10012 DRAWING NO. PBA1042 CARRIAGE ASSEMBLY, T1342 PBT13009... - Page 25 "+, #5'+"(1)!+3607 -#"./#00+1234(&)* -#"./#00+1234(!+08"%-.%)& INFEED HOUSING A1072 ASSEMBLY Detail B NOTE: PARTS NOT SHOWN !"#$%&'(&)* PART NO.- 30109 - CHAIN, PTO SUPPORT PART NO.- 30087 - PTO SHAFT - COMPLETE PBA1003 " 2 4...
- Page 26 " 2 5...
- Page 27 " 2 6...
- Page 28 AUGER MODEL(S) PART/ASSEMBLY DESCRIPTION A1072 TUBE ASSY,SWING HOPPER,10" DETAIL A NOTE: ITEM #6 USED ONLY ON MODELS WITHOUT GEARBOX GUSSET DRAWING NO. DETAIL B PBA10004 " 2 7...
- Page 29 AUGER MODEL(S) PART/ASSEMBLY DESCRIPTION A1072 TUBE ASSY,SWING HOPPER,10" DESCRIPTION ITEM NO. PART NO. KEY, 1/4 X 1-1/2", SQUARE 10309 LYNCH PIN, 1/4" X 2-1/8" 10364 SCREW, SET, 5/16-UNC x 1.25" SELF LOCKING 10382 COVER PLATE, CLEAN OUT 10528 GUSSET, GEARBOX REINFORCE, H10XX & A1072 11083 PLATE, SWING TUBE RETAIN, 10”...
- Page 30 PART/ASSEMBLY DESCRIPTION MODEL(S) A1042 TUBE ASSEMBLY, INFEED, A1042 DETAIL D DETAIL A DETAIL B DETAIL C DRAWING NO. PBA10009 " 2 9...
- Page 31 MODEL(S) PART/ASSEMBLY DESCRIPTION A1042 TUBE ASSEMBLY, INFEED, A1042 DESCRIPTION ITEM NO. PART NO. BENT PIN, 1/2"X7", SWING HOPPER LIFT RETAIN 10191 CABLE ROLLER,SWIVEL BLOCK,SWING HOPPER LIFT 10315 HAIRPIN, .093 X 1.625 10381 FLIGHTING ASSEMBLY, 10" INFEED, STAGE 2 30003A FLIGHTING ASM, 10" INFEED, STAGE 1 30003B LIFT ASSEMBLY, SWING HOPPER TRANSPORT, 10"...
- Page 32 PART/ASSEMBLY DESCRIPTION MODEL(S) A1042 TUBE ASSEMBLY, DISCHARGE, A1042 DETAIL B DETAIL A DRAWING NO. PBA10010 " 3 1...
- Page 33 MODEL(S) PART/ASSEMBLY DESCRIPTION A1042 TUBE ASSEMBLY, DISCHARGE, A1042 DESCRIPTION ITEM NO. PART NO. LYNCH PIN, 1/4" X 2-1/8" 10364 NUT, 1/2-20, 60 DEGREE LUG NUT, ZINC 10434 STOP, LIFT ROLLER, T AUGERS 10959 EXTENSION SPRING 11357 RAIL, SHORT, T8XX, T1032, T1042 11436 RAIL, LONG, T8XX, T1032, T1042 11442...
- Page 34 " 3 3...
- Page 35 " 3 4...
- Page 36 PART/ASSEMBLY DESCRIPTION AUGER MODEL(S) T1342 CARRIAGE ASSEMBLY, T1342 DETAIL B DETAIL A DETAIL C DRAWING NO. PBT13009 " 3 5...
- Page 37 PART/ASSEMBLY DESCRIPTION AUGER MODEL(S) T1342 CARRIAGE ASSEMBLY, T1342 DESCRIPTION ITEM NO. PART NO. SCREW, SELF TAPPING, #12 x 3/4" 10304 NUT, 1/2-20, 60 DEGREE LUG NUT, ZINC 10434 X-BRACE, SUPPORT ARMS, A10XX 10693 ZIP TIE, MANUAL CANISTER MOUNT 10960 BRACE, X, T1042, T842, T836 10988 HOUSING, LIFT ROLLER, T AUGERS 11673...
-
Page 38: Warranty Policy & Forms
Warranty Policy Harvest International warrants its products for a period of one (1) year or 90 days for commercial applications from original date of purchase by the original purchaser to be free from defects in material and workmanship under correct, normal agricultural use and proper applications. - Page 39 Customer Name: Dealer Name: Address: Address City: City: Postal Code: Postal Code: Phone # Phone # Email: Email: Warranty Claim Description: Date of purchase________________________________ Date of occurrence______________________________ Model_________________________________________ Serial Number__________________________________ All claims subject to Harvest International approval. " 3 8...
- Page 40 401 West 20 Street Storm Lake, Iowa 50588 PHONE: 712-213-5100 TOLL FREE: 1-888-218-5373 FAX: 712-213-5109 EMAIL: info@harvestauger.com WEB: www.harvestauger.com © Harvest International Inc. Printed in the United States of America " 3 9...
- Page 41 City: State: Zip Code: Phone # Cell Phone: Email: Date of Purchase: Dealer Name: Dealer Address: Model: Serial #: Please return within 10 days to: Harvest International, Inc. 401 West 20 Storm Lake, IA 50588 712-213-5100 www.harvestauger.com " 4 0...
