Adjustments

5 Adjustments
5.1

Gripping range adjustment

Adjust the brackets accordingly, depending on the inner diameter of the shaft elements (manholes).
5.1.1

Bracket II

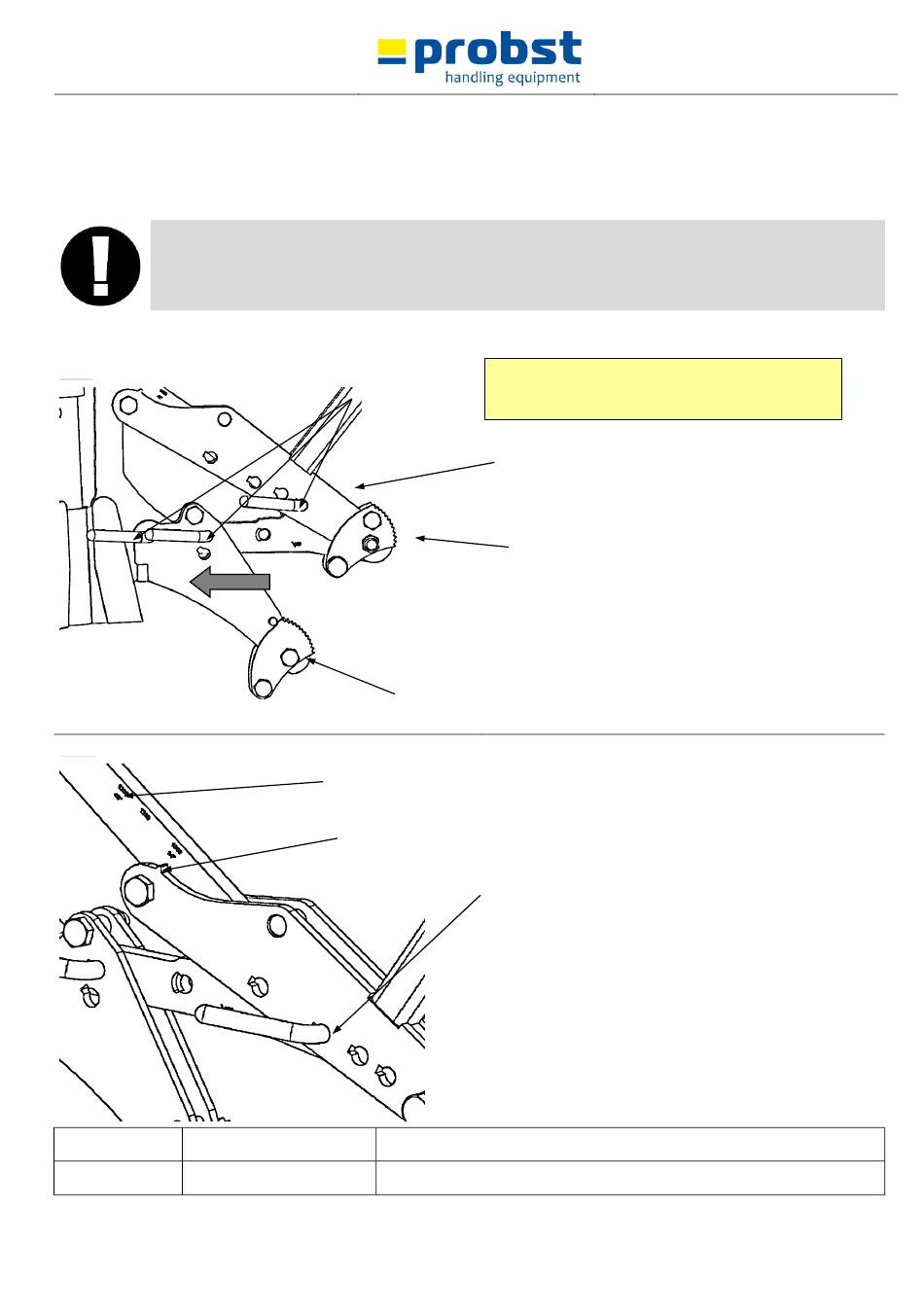

Fig. 1
Fig. 2
Variant: Application for:
Bracket II manholes
*
= (NW) Nominal width of gripping goods
** = Tolerance ± 10 mm (± 7/16")
54000047
When using the bracket II, move the bracket III
inwards (see arrow)!
Pos.1
Bracket holder

Bracket III

Nominal width
Marking
Pos.1
*
NW (Inner-Ø) mm
1000, 1050, 1200, 1250, 1350, 1500
V1
Bracket II
**
15 / 28
