Adjustments

5 Adjustments
5.1

Adjustment of the gripping range

•
The device can be used by the adjustment of the grab
arms for lifting different sizes.
•
The adjustment of the gripping range is executed as
follows:
•

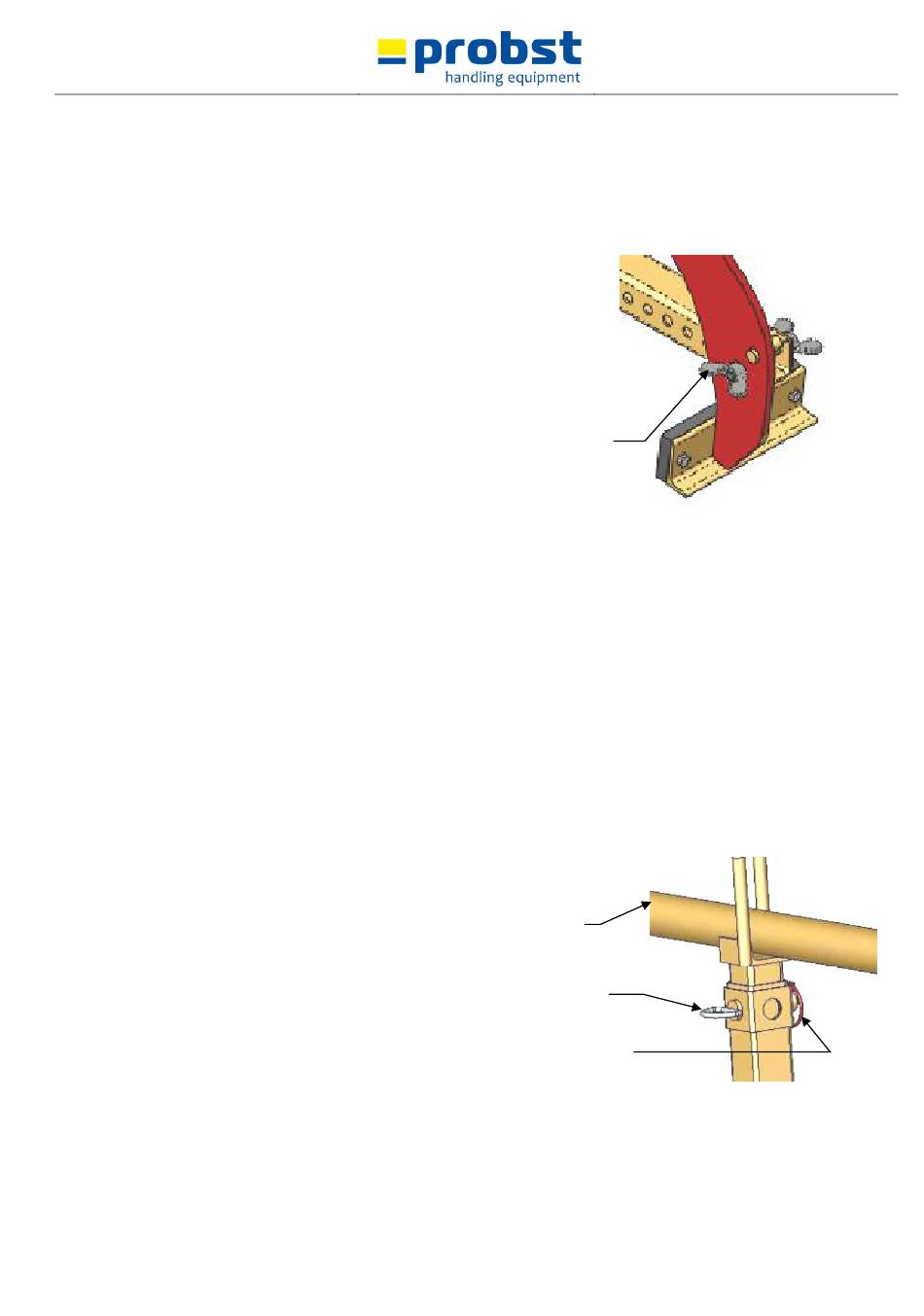

Butterfly screws loosen and pull out.
•
Shift the arms , until the gripping range is accordingly
adjusted. Note that both grab arms are symmetrically
arranged and that the distance between the grippers
and the load is not bigger than 2 cm.
•
Put the butterfly screws into the suitable bores and
tighten it.
6

Operation

6.1

General

•
Connect the device (ASZ/TSV) with the lifting equipment
or use the handle for manual operation by 2 persons.
•
Adjust the gripping range.
•
Set the device centrically on the load and release the
lever of the half-automatic release while lifting the
device.
•
Lift the device with the load.
•
Lowering the load, the automatic release will lock and
the device can be lifted without the load.
5310.0259-005
Butterfly screw
With lack of space the handle of the device can be turned
.
around °90
•
Remove the split pin of the locking pin and pull locking
pins out.
•
Pull the handle from the rectangle pipe and turn around
90 °.
•
Plug in the locking pins again and protect it with split
pin.
Handle
Socket pin
Folding split pin
V3
13 / 18
GB
