Device communication
8.1.6

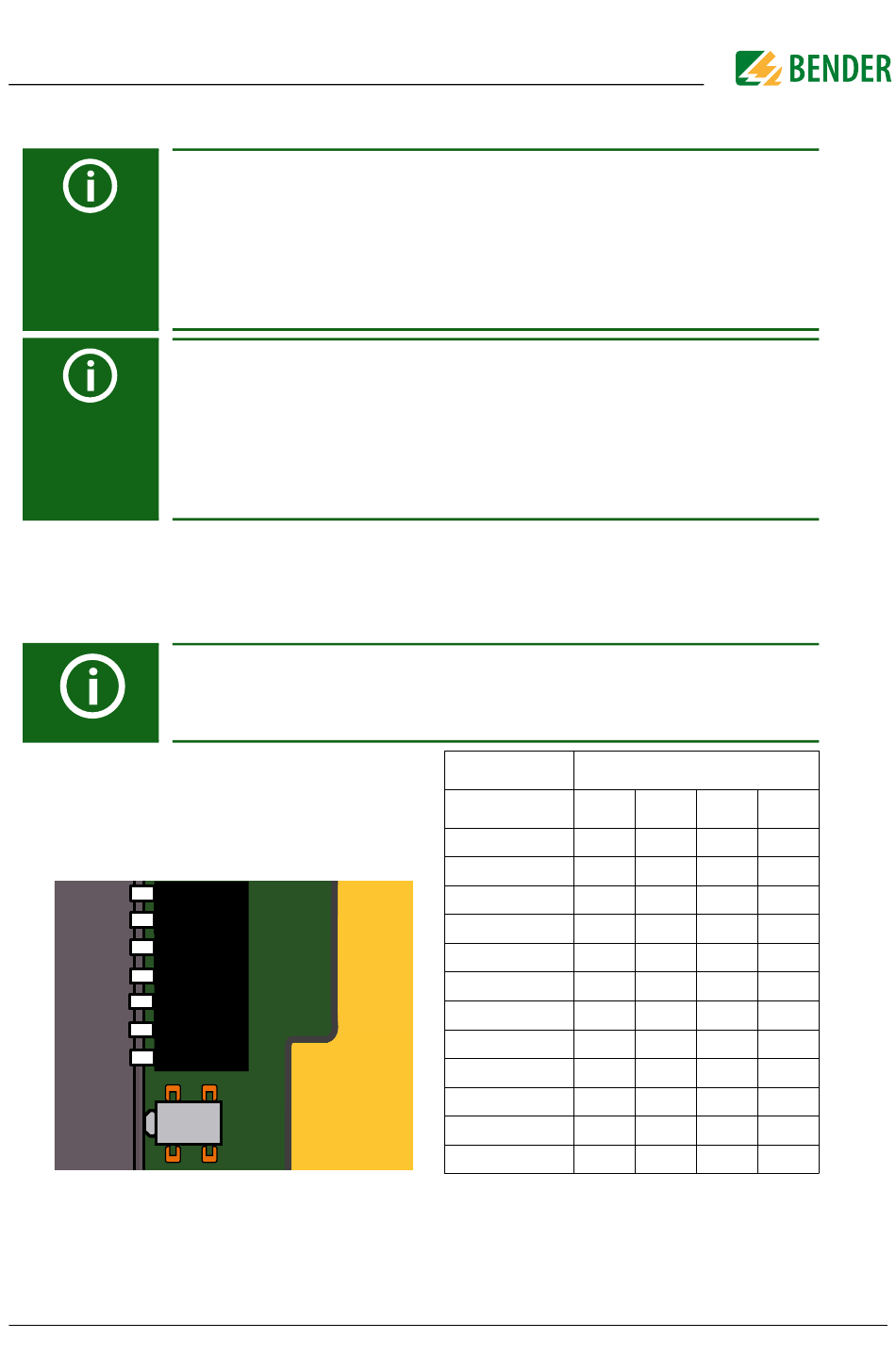

Setting the BMS address

Set the BMS address ((1)2...90) in the device menu via the following path:
Device settings > Interface > BMS > BMS address.
isoPV1685RTU:
Switch position:
Up = Off
Down = On
2 A3
A2
3
A1
4
A0
5
6
7
8
isoPV1685xxx_D00007_08_M_XXEN/03.2023
The ISOMETER® cannot switch on a potential termination at the BMS
bus. Even though this is not expected to cause communication
problems, the ISOMETER® should be operated as BMS slave if possible
(BMS address > 1).
If no other device with master capabilities is available on the bus, the
ISOMETER® can be set to master (BMS address 1).
Before the ISOMETER® takes over the backup master function after
being switched on, it waits to see if another master connects to the
system.
Waiting period: BMS address minus 1 = waiting period in minutes.
Example: The iso1685DP has BMS address 3. It waits 3 minus
1 minutes (= 2 minutes) for a master to connect.
The A4 switch of the dip switch SS8103 is used to switch between BMS
and Modbus (refer to
on page 40).
8.4 "RS-485 interface with Modbus protocol"
BMS addr.
2
3
4
5
6
7
8
9
10
..
...
17
DIP switch SS8103
A3 A2 A1
0 0 0
0 0 0
0 0 1
0 0 1
0 1 0
0 1 0
0 1 1
0 1 1
1 0 0
.. .. ..
... ... ...
1 1 1
A0
0
1
0
1
0
1
0
1
0
..
...
1
