PROLiNK Master III Series User Manual page 54

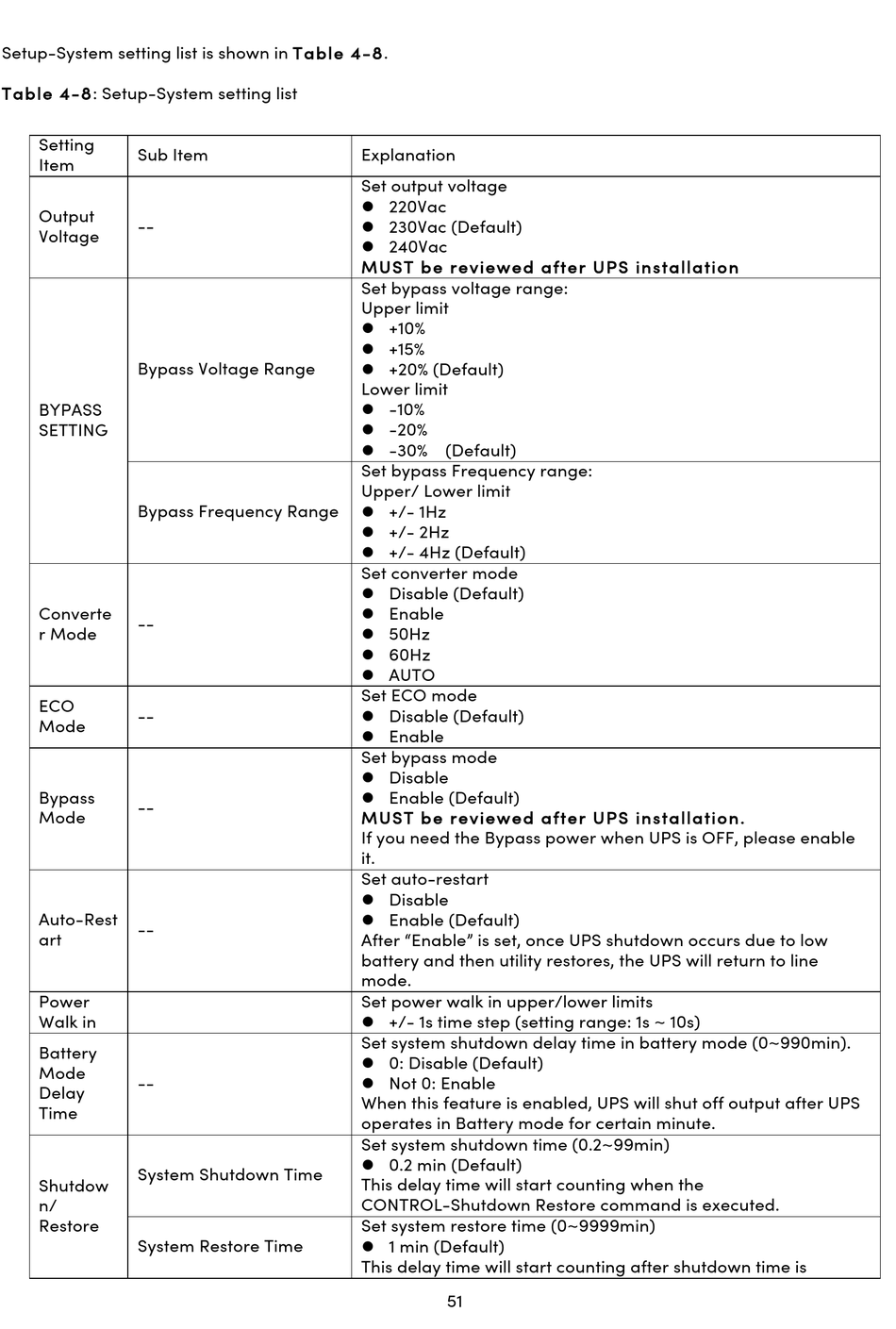

Setup-System setting list is shown in Table 4-8.
Table 4-8: Setup-System setting list
Setting
Sub Item
Item
Output
--
Voltage
Bypass Voltage Range
BYPASS
SETTING
Bypass Frequency Range
Converte
--
r Mode
ECO
--
Mode
Bypass
--
Mode
Auto-Rest
--
art
Power
Walk in
Battery
Mode
--
Delay
Time
System Shutdown Time
Shutdow
n/
Restore
System Restore Time
Explanation
Set output voltage
l 220Vac
l 230Vac (Default)
l 240Vac
MUST be reviewed after UPS installation
Set bypass voltage range:
Upper limit
l +10%
l +15%
l +20% (Default)
Lower limit
l -10%
l -20%
l -30% (Default)
Set bypass Frequency range:
Upper/ Lower limit
l +/- 1Hz
l +/- 2Hz
l +/- 4Hz (Default)
Set converter mode
l Disable (Default)
l Enable
l 50Hz
l 60Hz
l AUTO
Set ECO mode
l Disable (Default)
l Enable
Set bypass mode
l Disable
l Enable (Default)
MUST be reviewed after UPS installation.
If you need the Bypass power when UPS is OFF, please enable
it.
Set auto-restart
l Disable
l Enable (Default)
After "Enable" is set, once UPS shutdown occurs due to low
battery and then utility restores, the UPS will return to line
mode.
Set power walk in upper/lower limits
l +/- 1s time step (setting range: 1s ~ 10s)
Set system shutdown delay time in battery mode (0~990min).
l 0: Disable (Default)
l Not 0: Enable
When this feature is enabled, UPS will shut off output after UPS
operates in Battery mode for certain minute.
Set system shutdown time (0.2~99min)
l 0.2 min (Default)
This delay time will start counting when the
CONTROL-Shutdown Restore command is executed.
Set system restore time (0~9999min)
l 1 min (Default)
This delay time will start counting after shutdown time is
51
