(1) UPS Mode: Current operation mode.
(2) Module Status: It will show active module no. Touch each module icon to enter measurement screen. The
meanings of each icon are listed as below.

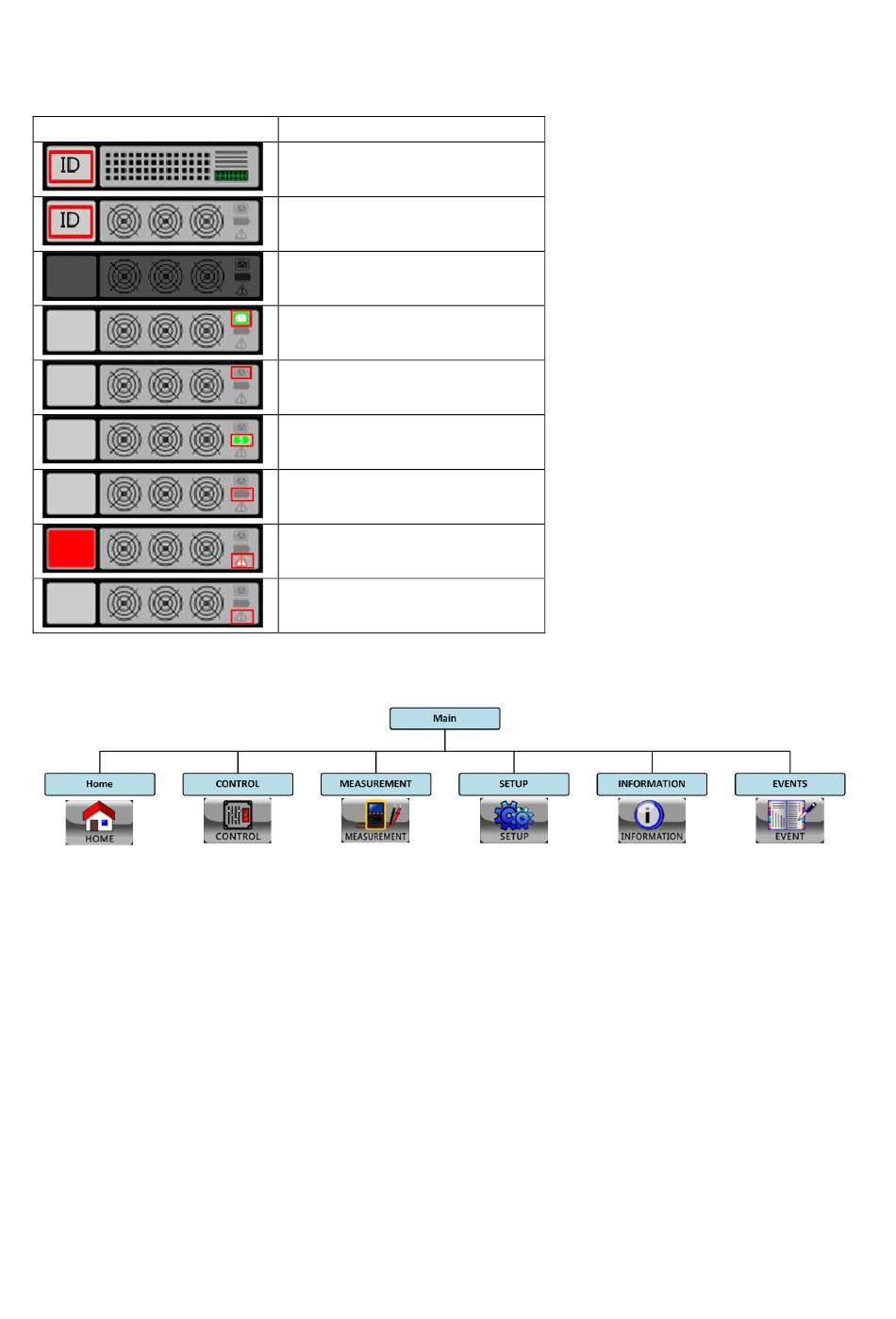

Module icon
(3) Main Menu: Touch icon to enter sub screen.
(4) UPS Flow Chart: Current flow chart and measurement data.
(5) UPS power rating.
(6) Date and Time.
Explanation
STS icon with ID no.
Power module icon with ID no.
No power module
Power module output on
Power module output off
Power module charger on
Power module charger off
Power module fault
Power module is operated
normally.
Figure 4-4 Menu tree
