2-9.1 Communication Interface
For detailed information, please refer to Chapter 5.
No. Item
 SNMP Slot
‚ LCD Port
ƒ RS232 port
„ USB port
… Dry contact ports
100KVA/120KVA
This slot can work with an optional card such as SNMP, AS400 or
Modbus card.
This port connects to Control Panel with an installed cable from factory.
Local communication interface.
Local communication interface.
CN1 & CN2. For detailed information, please refer to Chapter 5.

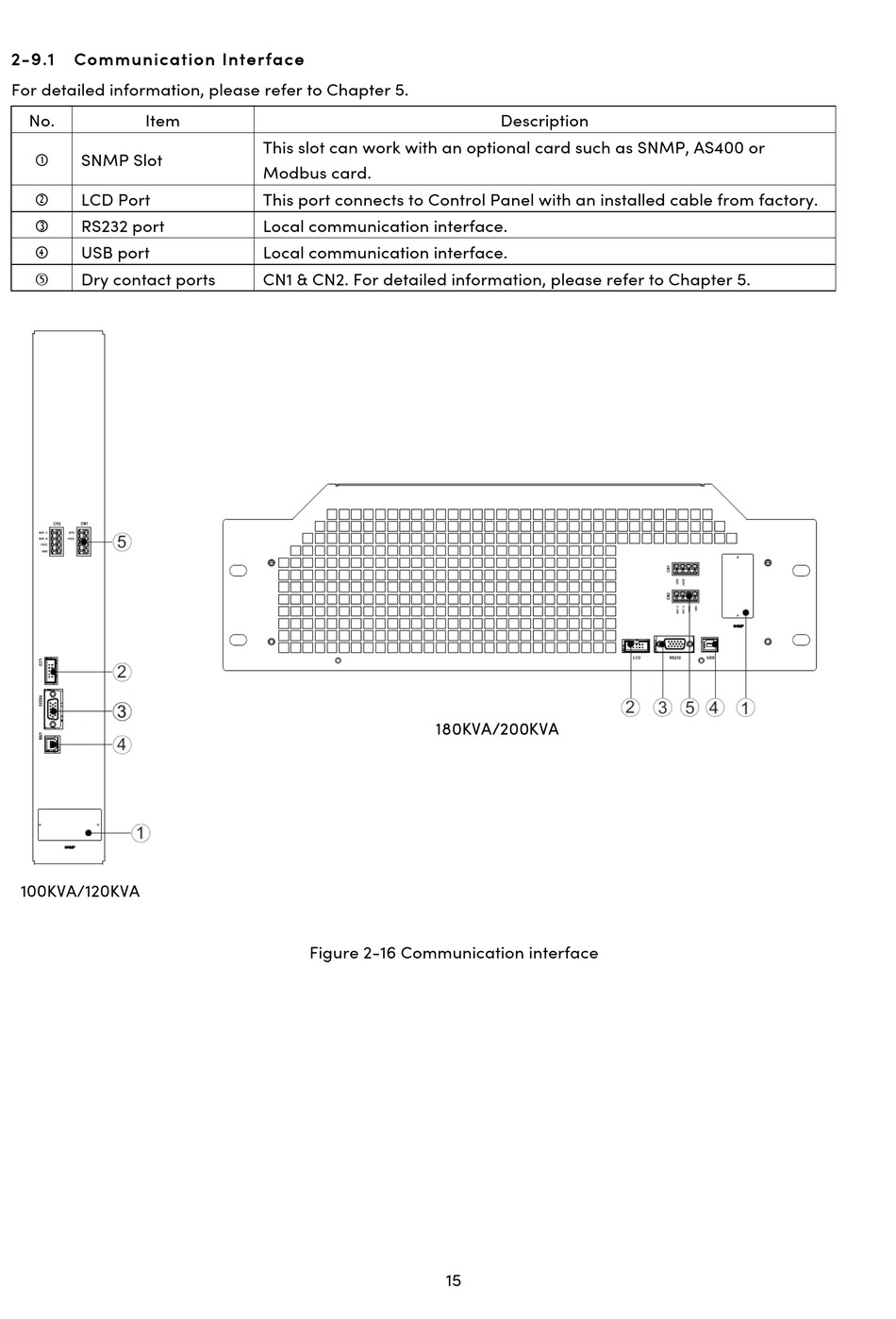

Figure 2-16 Communication interface
Description
180KVA/200KVA
15
