External Battery Cabinet Connection

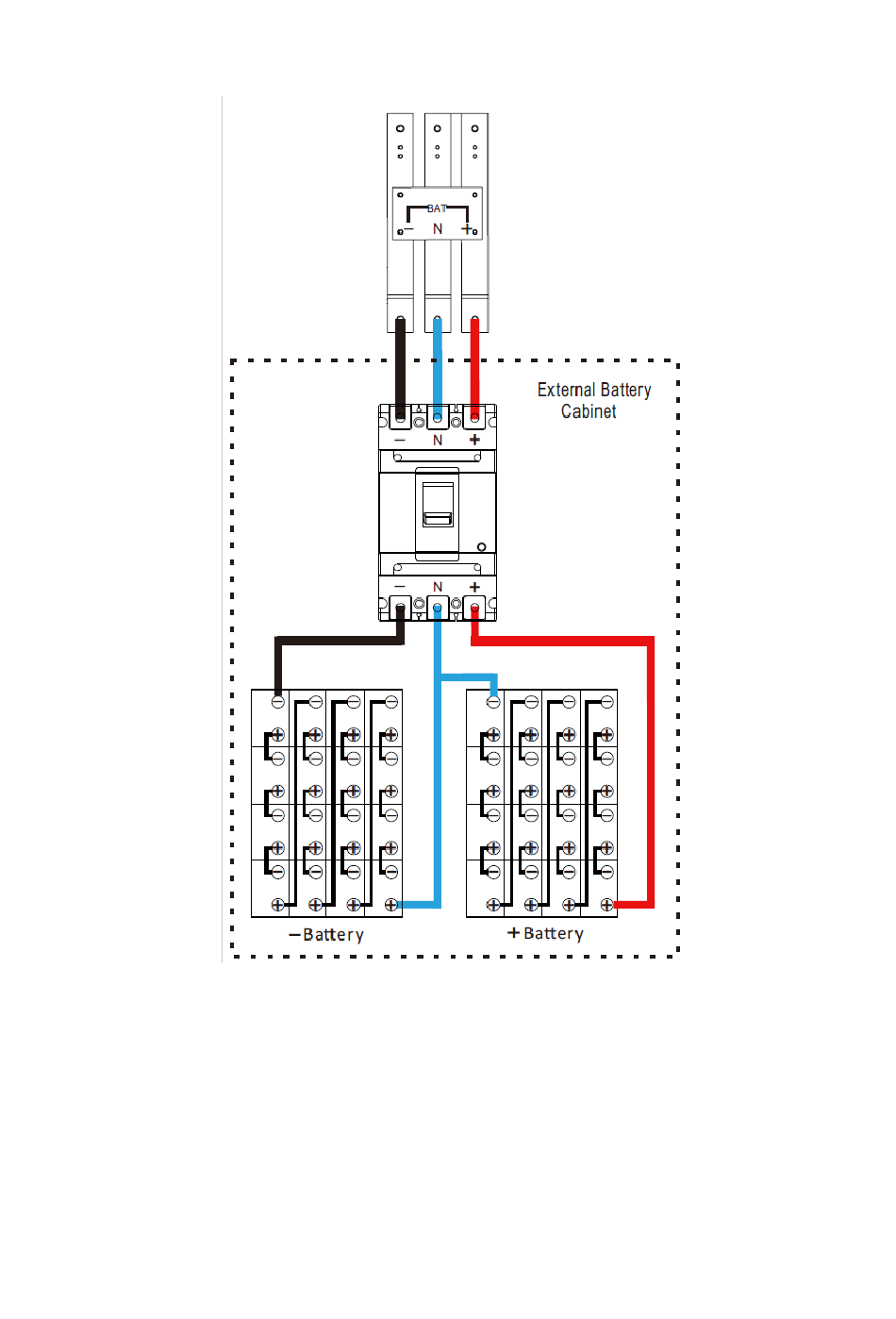

Figure 2-24 External Battery Cabinet Wiring
After the battery is completely installed, be sure to set up nominal battery voltage, battery capacity and maximum
charging current in LCD setting. Otherwise, if battery setting is different from actual installation, the UPS will keep
warning. Please refer to section 4.2.6.3 and Table 4-9 for the details.
