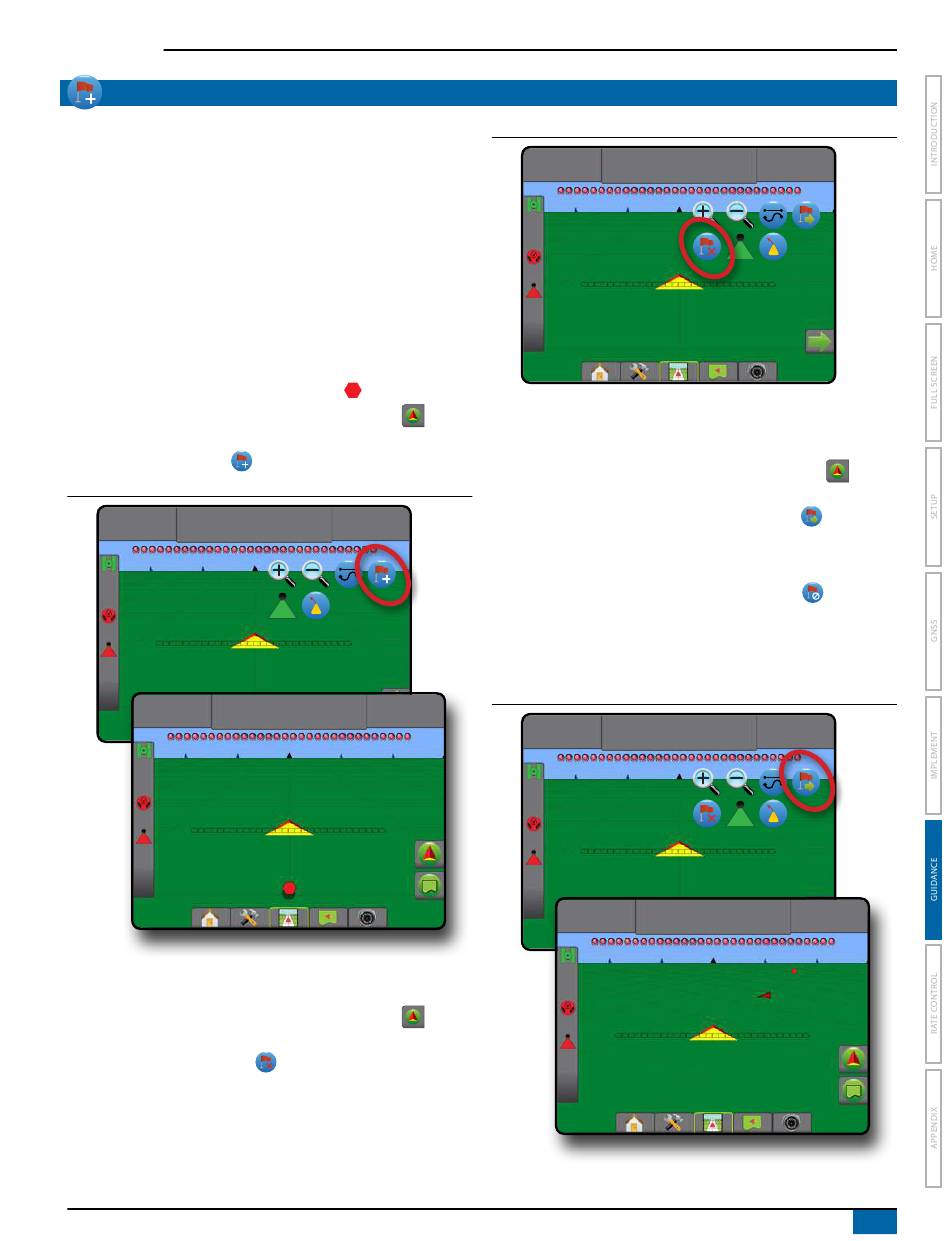

RETURN TO POINT

Return to point provides guidance back to an established point in
Vehicle view and Field view. In Vehicle view an arrow directs the
vehicle back to the established point. In Field view only the point is
displayed.
A return point is job-specific, and will remain active in the active job
until canceled.
NOTE: Return to point guidance may not be available depending on
assisted/automatic steering system installed.

Marking a Return Point

To mark a return point:
1. Drive to the desired location of return point
2. Press NAVIGATION AND GUIDANCE OPTIONS tab
display navigation options.
3. Press ADD POINT icon
Figure 7-21: Return point established – Vehicle View
8:19 AM
8:21 AM

Delete the Return Point

To delete the established return point:
1. Press NAVIGATION AND GUIDANCE OPTIONS tab
display navigation options.
2. Press DELETE POINT icon
Delete Point icon is not available while return to point guidance is
active.
MATRIX
.
to
.
1.7
mph
1.7
mph
to
.
Pro 570GS • MATRIX
®
Figure 7-22: Delete point
9:03 AM

Guidance to a Return Point

To show distance and guidance to the established return point:
1. Press NAVIGATION AND GUIDANCE OPTIONS tab
display navigation options.
2. Press the RETURN TO POINT GUIDANCE icon
The console will begin providing the distance information on the
Guidance bar from the vehicle to the established point.
Use CANCEL RETURN TO POINT GUIDANCE icon
distance and guidance to the established point.
Guidance cannot be calculated when "?" appears in the
guidance bar.
Figure 7-23: Return to point guidance – Vehicle View
8:36 AM
8:53 AM
®
Pro 840GS
1.7
mph
.
to hide
1.7
mph
1.7
45.7 ft
mph
