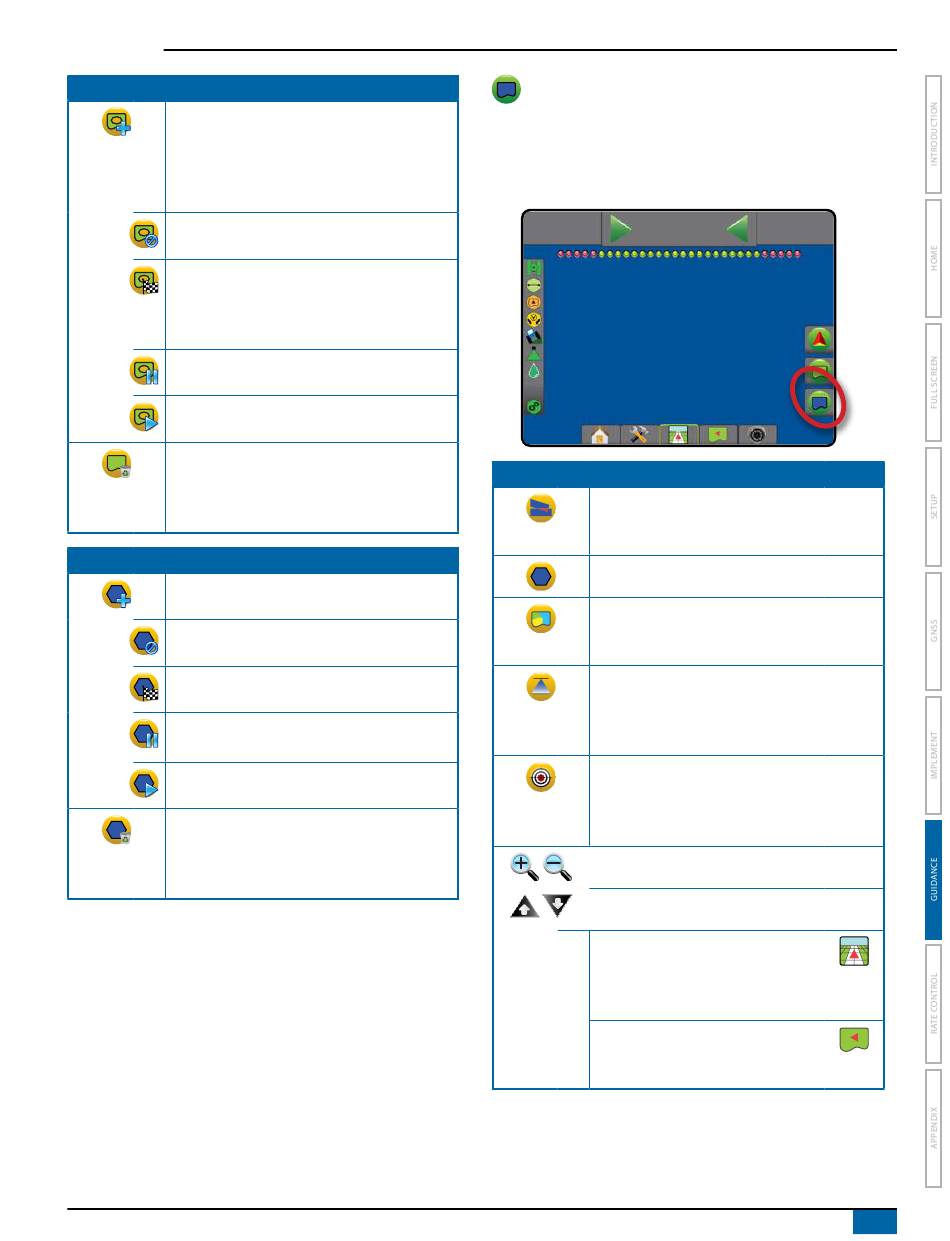

Interior boundaries
Mark Interior Boundary – establishes
application area and determines no-apply
zones. While creating an interior boundary, the
boundary line will be to the interior of the inner-
most section. Grayed = GNSS is unavailable.
Cancel Interior Boundary – cancels current
mark interior boundary process
Finish Interior Boundary – finalizes current
mark interior boundary process. Boundaries
can also be closed by traveling to within a
swath width of the starting point
Pause Interior Boundary – pauses the mark
interior boundary process
Resume Interior Boundary – resumes the mark
interior boundary process
Delete Last Marked Boundary – deletes the last
marked boundary (interior or exterior) from the
current job. Press again to remove additional
boundaries in order from last to first created
Polygons
Mark Polygon – establishes mapping areas.
Grayed = GNSS is unavailable.
Cancel polygon – cancels current mark polygon
process
Finish Polygon – finalizes current mark polygon
process
Pause Polygon – pauses the mark polygon
process
Resume Polygon – resumes the mark polygon
process
Delete Last Marked Polygon – deletes the last
marked polygon from the current job. Press
again to remove additional polygons in order
from last to first created
Pro 570GS • MATRIX
®
MATRIX
On vehicle view or field view guidance screens, displays polygon
maps, coverage maps and application maps.
NOTE: Options are available only when a rate controller is on the
Mapping Options
system or a polygon has been established.
0.0
-13
Coverage Map – shows areas covered by the
implement, regardless of whether product was
applied.
Polygon Map – shows all mapped polygons
Prescription Map – shows pre-loaded map that
provides information to the rate controller for
use in applying product
Application Map – shows where product has
been applied, using color to indicate level in
proportion to preset maximum and minimum
levels
Target Rate Map – shows the application rate
that the rate controller will attempt to achieve
(can be monitored from the Rate Control bottom
tab)
Icons – to be used on the Matrix Pro 570GS
Buttons – to be used on the Matrix Pro 840GS
Vehicle View – icons or buttons adjust
the vehicle's view or perspective to
the horizon from vehicle view to bird's
eye view
Field View – icons or buttons
increase/decrease the area displayed
on the screen
