CONFIGURATION

Configuration is used to configure the system components including implements, guides, steering, monitors and sensors.
NOTE: Feature availability will vary depending on the devices available and unlocked on the Matrix Pro GS system.
1. Press SYSTEM SETUP bottom tab
2. Press CONFIGURATION side tab
3. Select from:
►Implement – used to set (as appropriate) machine type,
GNSS antenna height, implement type, symmetric implement
layout, section output modules, number of implement sections,
application/working width, droplet size monitor, tip selection, tip
spacing, BoomPilot start mode, Reverse Sense Module
● In Straight Mode – in-line/lateral implement offset direction/
distance, overlap percentage, implement delay on/off time
● In Spreader Mode:
TeeJet – antenna to disks distance, lateral implement offset
direction/distance, overlap percentage, delay on/off times,
spread offset distance, section offset distances, section
lengths
OEM – antenna to disks distance, lateral implement offset
direction/distance, start/stop distance, section start/stop
offset distances
● In Staggered Mode – in-line/lateral section 1 offset direction/
distance, overlap percentage, delay on/off times, section
offsets
► Mapping and Guidance – used to configure the mapping
location, guidance width, cross track error shown on the
lightbar

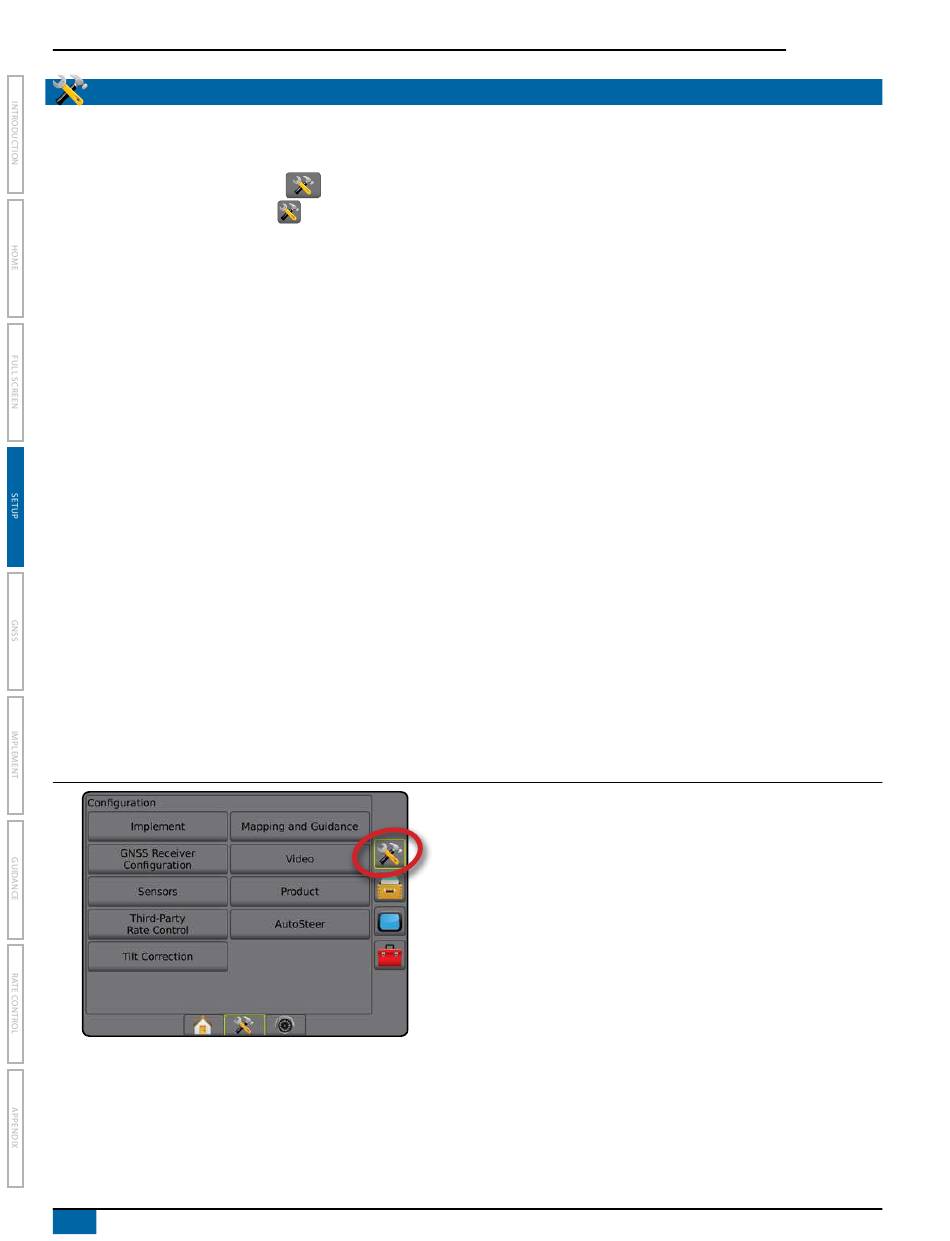

Figure 4-2: Configuration Options
12
www.teejet.com
®
Pro 840GS
.
.
►GNSS Receiver Configuration – used to establish GNSS type,
port, data rate, and PRN, as well as to view GNSS status
information
►Video – used to enable/disable automatic reverse camera
activation and to configure camera settings
►Sensors – used to establish pressure sensor settings
►Product – used to configure product name, color mapping
maximum/minimum rate limits and corresponding display
colors
►Third-Party Rate Control settings – used to configure hardware
interface and communication.
►AutoSteer – used to enable/disable and calibrate assisted/auto
steering
● FieldPilot – used to establish valve setup settings, steering
settings, steering wheel and steering angle sensor settings,
and to perform valve tests or valve diagnostics
● FieldPilot Pro / UniPilot Pro – used to manage vehicle
settings, calibrate sensors, select QI values, as well as
establish transport mode and service mode
►Tilt Correction – used to enable/disable and calibrate the tilt
correction function, and improve application on hilly or sloped
terrain
