GNSS Receiver Configuration

GNSS Receiver Configuration is used to configure GNSS Type,
GNSS Port, GNSS Data Rate, and PRN, as well as to view GNSS
status information.
NOTE: For more information, see the GNSS Receiver Configuration
chapter of this manual.
These settings are required for assisted/auto steering, tilt
sensor operation, and rate control functionality, as well as
proper implement operation.
1. Press CONFIGURATION side tab
GNSS Receiver Configuration
2. Press
3. Select from:
►GNSS Type – sets to accept GNSS source transmissions:
GPS, GLONASS, SBAS (with or without DGPS Required)
►GNSS Port – sets GNSS communication port to either Internal
or External
►GNSS Data Rate – sets the GNSS Port baud rate and
frequency of NMEA messages available on the console
RS232 port.
►GNSS Status Information – displays current GNSS status
information
►Program – only TeeJet support technicians should use this
feature
►PRN – selects the first of two possible SBAS PRN's to provide
SBAS correction data. Set to
selection.
►Alternate PRN – when PRN is not automatic, allows possible
selection of a second SBAS PRN to provide correction data
►Show refresh GNSS position button – establishes if the
refresh GNSS position button is available on the guidance
screens.
4. Press NEXT PAGE arrow
GNSS options.
5. Press RETURN arrow
return to the main Configuration screen.
MATRIX
.
.
for automatic PRN
Automatic
to set up the selected specific
or CONFIGURATION side tab
Pro 570GS • MATRIX
®

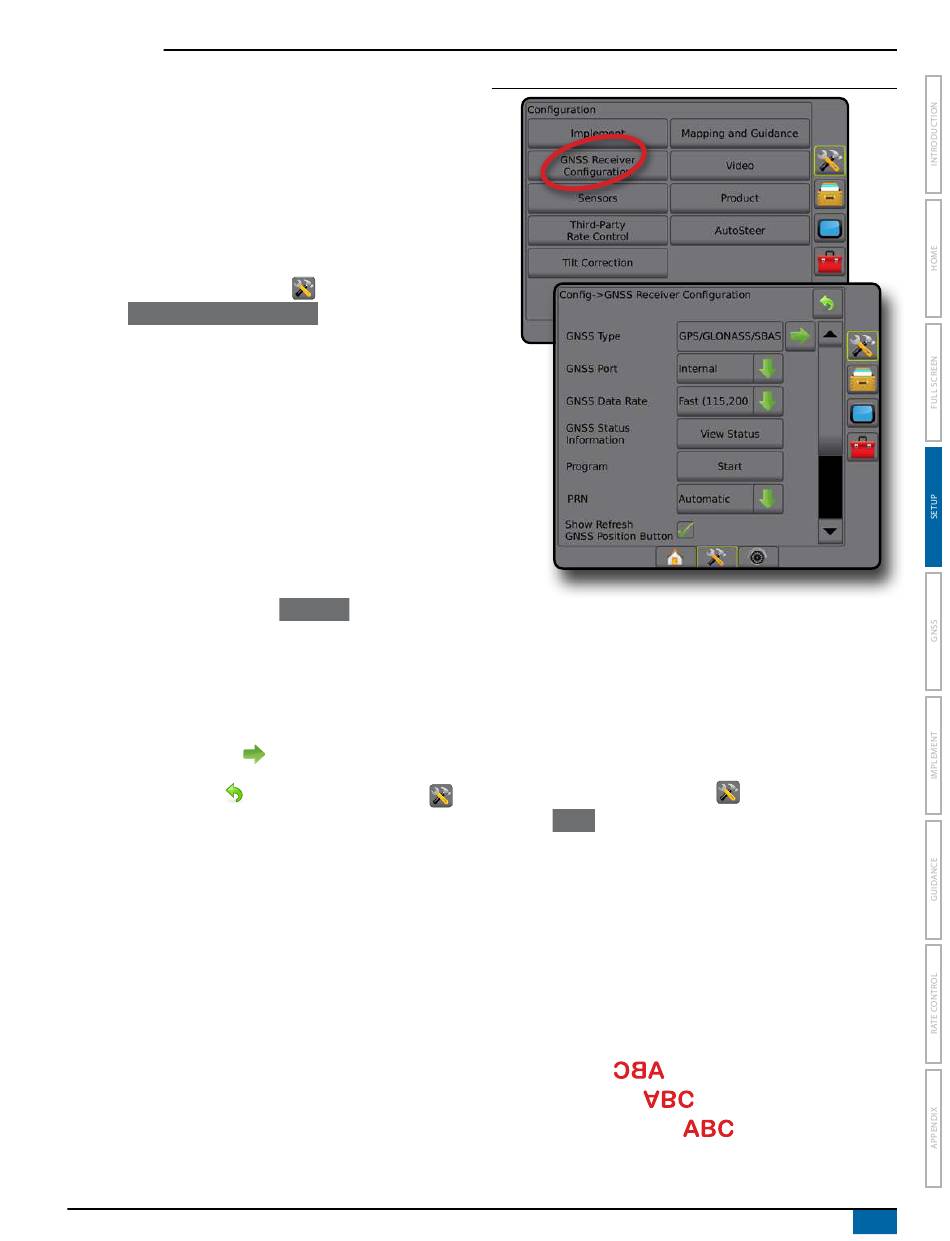

Figure 4-15: GNSS Receiver Configuration Options

PRN Not Shown

PRN options are only available with SBAS GNSS Type selected.

Video

Video Setup is used to enable/disable automatic reverse camera
activation and to configure a single directly connected camera or
individual cameras while using an Eight (8) Channel or Four (4)
Channel Video Selector Module (VSM). Up to 8 cameras can be
configured if a VSM is installed.
1. Press CONFIGURATION side tab
to
Video
2. Press .
3. Select from:
►Reverse Camera - with a reverse sensing device installed,
enable to automatically switch to RealView Camera Video
View or RealView Guidance when in reverse. When forward
motion is detected, previous screen/view will be returned. If a
VSM is detected, the Reverse Camera will be in position A.
►Camera Settings - used to set up a single directly connected
camera or individual cameras (if a VSM is detected) in normal
view, reverse view, upside down view or a combination of two
of the three view options.
– Reverse –
– Upside Down –
– For normal video view
®
