RealView Guidance

RealView Guidance allows live video input to be displayed instead of a computer-generated image. From this screen all setup,
boundary, polygon and navigation options can be accessed via the tabs on the right side of the screen. To adjust the camera view
[reverse, upside down], go to Setup-> Configuration-> Video.
►Single Camera – a single camera is directly attached to the console
►Video Selection Module – if a Video Selection Module (VSM) is installed on the system, two (2) video options are available:
• One Camera View – one of up to eight camera inputs can be selected to change the view of the video input.
• Split Camera View – one of two sets of four camera inputs (A/B/C/D or E/F/G/H) can be selected to divide the screen into four
separate video feeds.
To access the RealView screen:
1. Press REALVIEW GUIDANCE tab

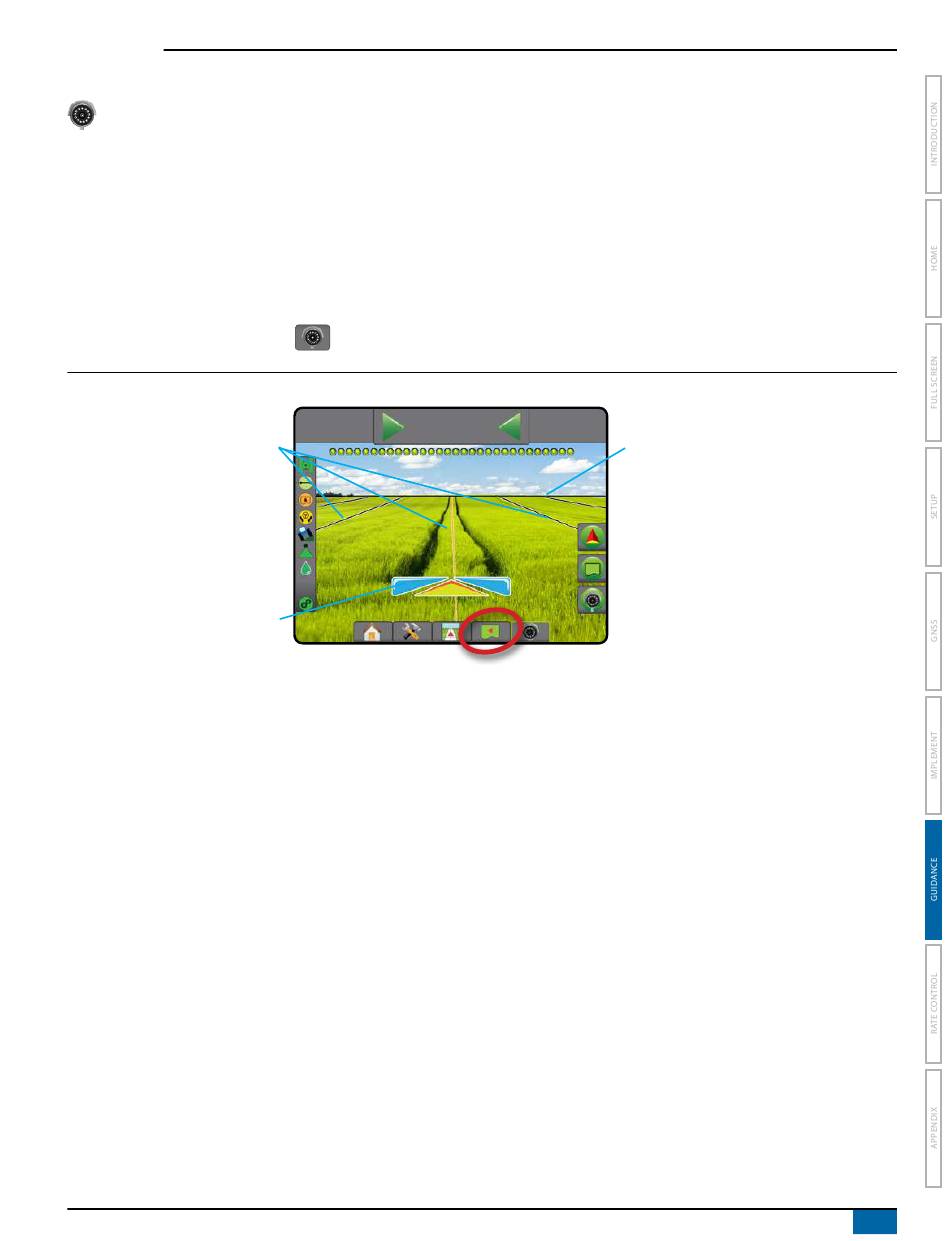

Figure 7-9: RealView Guidance
Navigation Guidelines
Status Bar
Steering Angle
On screen guidance
• Guidelines
◄Orange – active guidance line
◄Black (multiple) – adjacent guidance lines
◄Horizontal Black Line – adjustable horizon line
◄Black – exterior boundary line
◄Gray – interior boundary line
◄Blue – polygon boundary line
Pro 570GS • MATRIX
®
MATRIX
.
Guidance Bar
27.00
0.0
ac
10.0
mph
Horizon Line
Navigation and Guidance Options Tab
Boundary And Polygon Options Tab
RealView Options Tab
