Pro 570GS • MATRIX
®
MATRIX

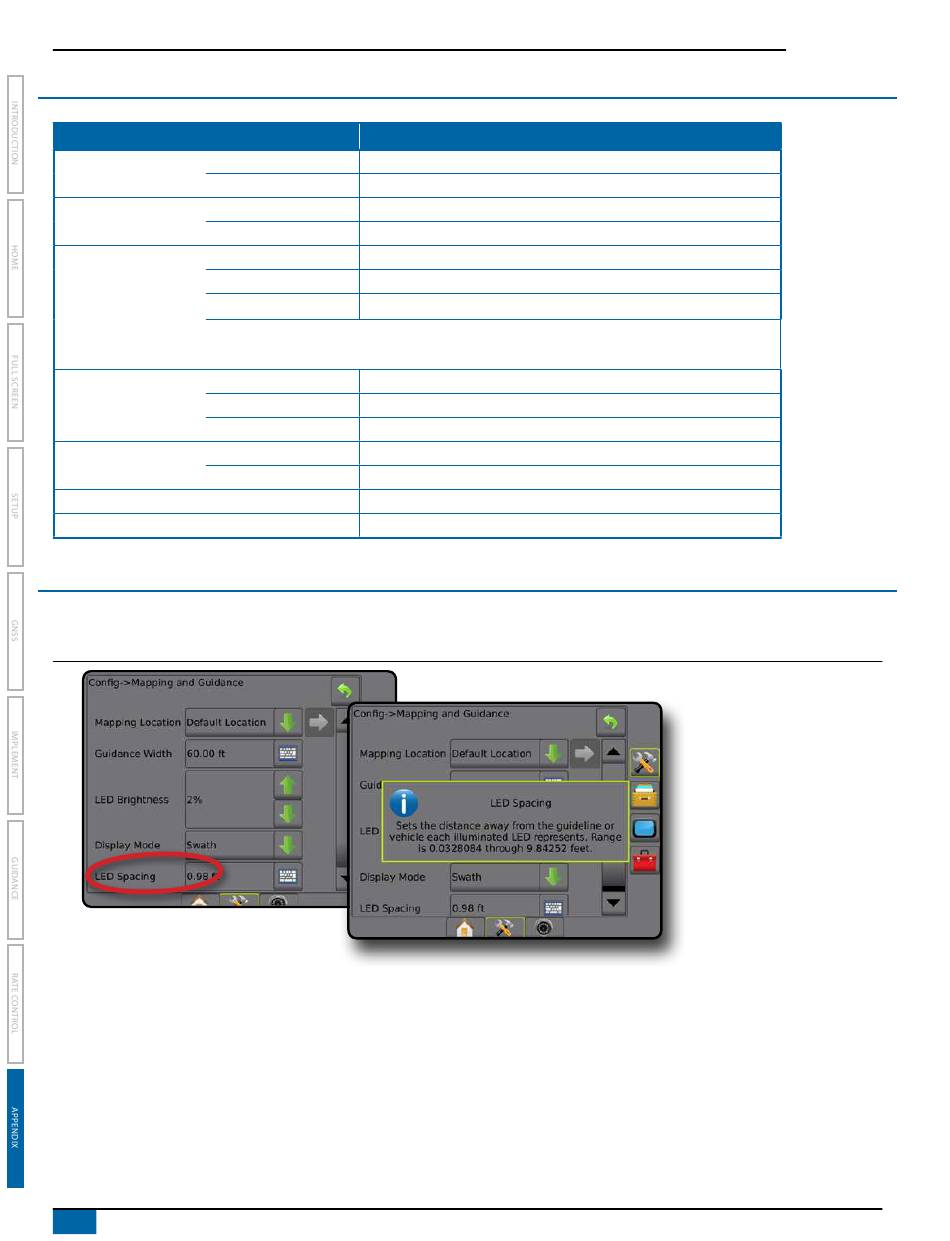

APPENDIX C – UNIT SPECIFICATIONS
Dimensions
Matrix Pro 570GS
Matrix Pro 840GS
Weight Matrix Pro 570GS
Matrix Pro 840GS
Connector Power/CAN
Camera
Speed/Status
WARNING! Some original Matrix consoles have a 4 pin conxall cable connection. The 4-pin and 8-pin cables are NOT
Environmental Storage
Operating
Humidity
Display
Matrix Pro 570GS
Matrix Pro 840GS
Input/output
Power requirement
APPENDIX D – SETTING RANGES
Press the option's name of any menu item to display a definition and range values of that item.
Figure A-3: Example of Information Text Box
102
www.teejet.com
16.15 x 14.91 x 5.84 cm
27.0 x 18.0 x 6.0 cm
0.794 kg
1.06 kg
8 pin Conxall
5 pin Conxall
8 pin Conxall
interchangeable.
+14°F to +158°F / -10°C to +70°C
+32°F to +122°F / 0°C to +50°C
90% non-condensing
320 x 240 resolution, 5.7 in / 14.5 cm
800 x 600 resolution, 8.4 in / 21.3 cm
USB 2.0
< 9 watts @ 12 VDC
®
