Pro 570GS • MATRIX
®
MATRIX

Third-Party Rate Control

When a Third-Party Rate Control system is present and Rate Control
has been unlocked, a Third-party rate control can be enabled/
disabled.
See the Rate Control chapter of this manual for more details.

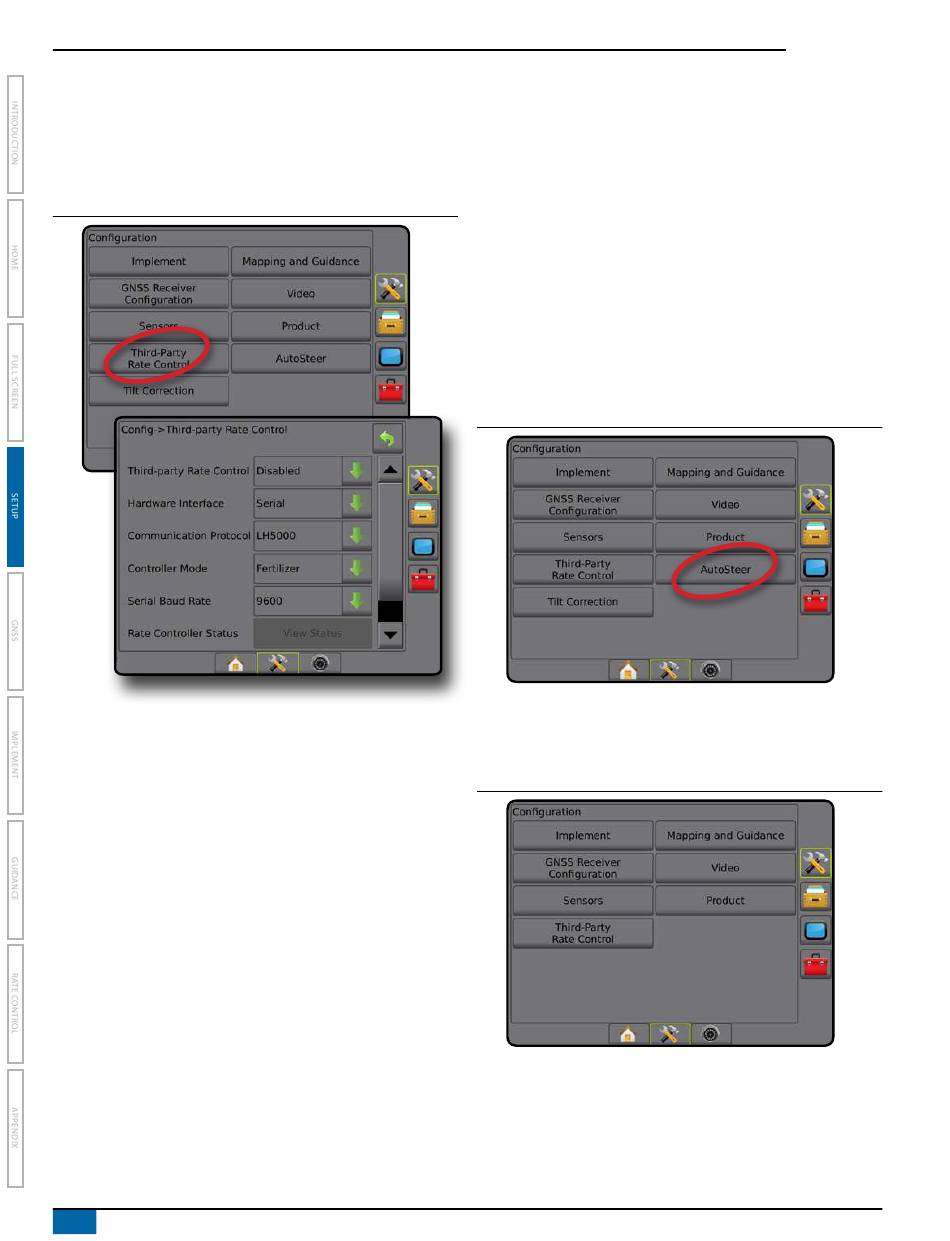

Figure 4-22: Third-Party Rate Control
22
www.teejet.com
®
Pro 840GS

AutoSteer

When a Steering Control Module (SCM or SCM Pro) is present,
Assisted/Auto Steering options will be available.
NOTE: For detailed setup instructions, refer to your specific
assisted/auto steering installation manual.
AutoSteer setup is used to enable/disable and calibrate assisted/
auto steering.
● FieldPilot [using a SCM] – used to establish valve setup
settings, steering settings, steering wheel and steering
angle sensor settings, and to perform valve tests or valve
diagnostics
● FieldPilot Pro / UniPilot Pro [using a SCM Pro] – used to
manage vehicle settings, calibrate sensors, select QI values,
as well as establish transport mode and service mode
Figure 4-23: AutoSteer

Assisted/Auto Steering Unavailable

If an assisted/auto steering system is not installed, setup options will
not be available.
Figure 4-24: Assisted/Auto Steering Not Detected
