About

About/Save screen displays the system software version as well as
the software versions of modules connected to the CAN bus.
To aid when troubleshooting problems in the field, an end user
can use the Save button to download a text file containing current
software information to a USB drive, then e-mail the file to support
personnel.
1. Press CONSOLE side tab
2. Press .
About
3. Select from:
►View Information including Unit Serial Number, Software
Version, and Connected Modules
►With a USB drive in the console, press
About information to the USB drive. Saved version information
to USB drive will confirm the save.
4. Press RETURN arrow
to the main Console Settings screen.
NOTE: The option is not available for selection (grayed out)
Save
until a USB drive is inserted properly.

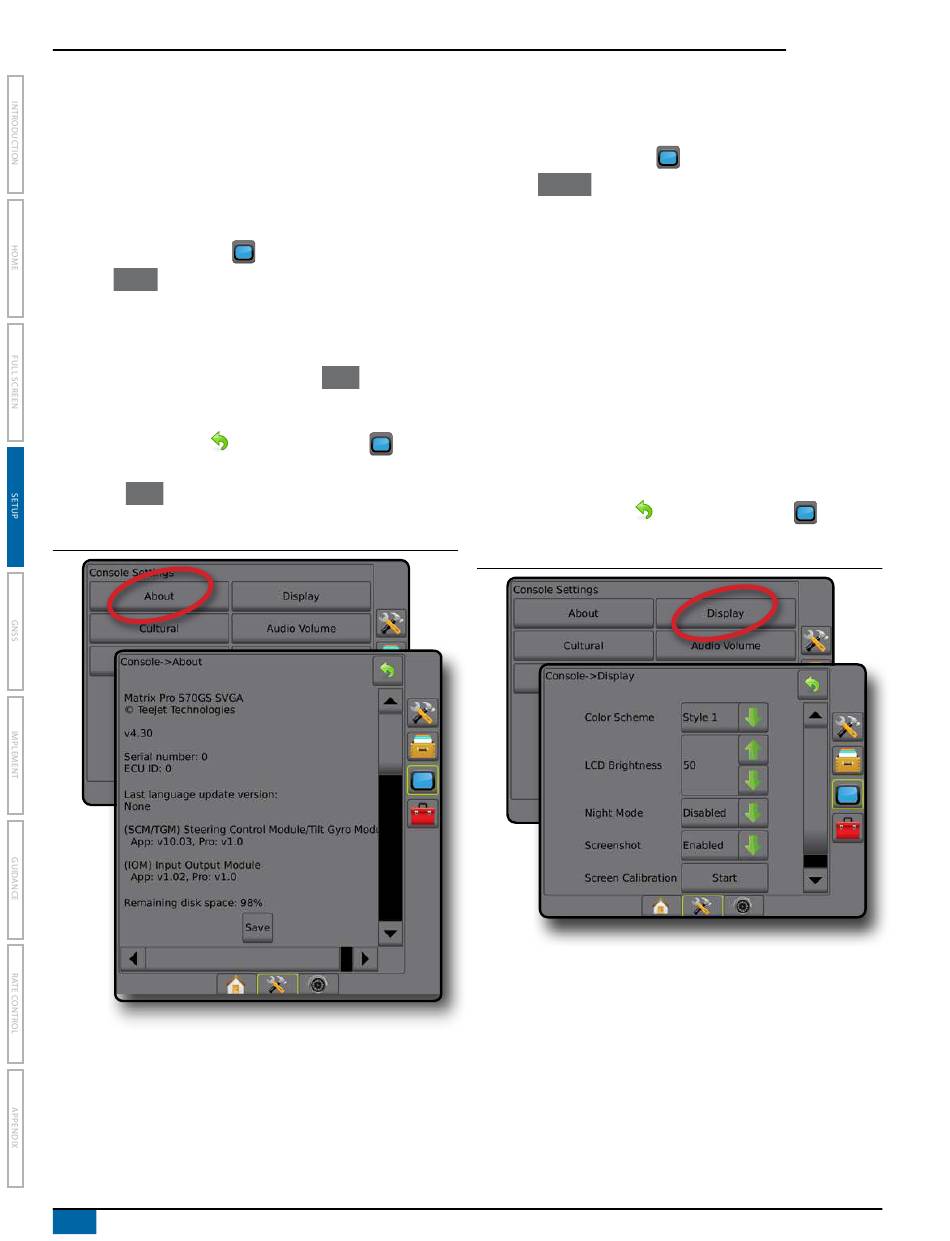

Figure 4-42: About Options
32
www.teejet.com
.
to save the
Save
or CONSOLE side tab to return
®
Pro 840GS

Display

Display is used to configure color scheme and LCD brightness,
establish screenshot availability and calibrate the touchscreen.
1. Press CONSOLE side tab
2. Press .
Display
3. Select from:
►Color Scheme – used to choose the color scheme that is
easiest to read
►LCD Brightness – used to adjust the brightness of the console
display
►Night Mode - used to darken the screen to improve screen
during night usage. Settings change User Interface Color
Scheme to Style 2 and LCD Brightness to 20%. Disable to
return to previous User Interface Color Scheme and LCD
Brightness settings.
►Screenshot – used to allow screen captures to be saved to a
USB drive
►Screen Calibration – used to calibrate the touch screen
4. Press RETURN arrow
to the main Console Settings screen.
Figure 4-43: Display Options
.
or CONSOLE side tab to return
