GETTING STARTED
#1 Turn Power On
Press the POWER button

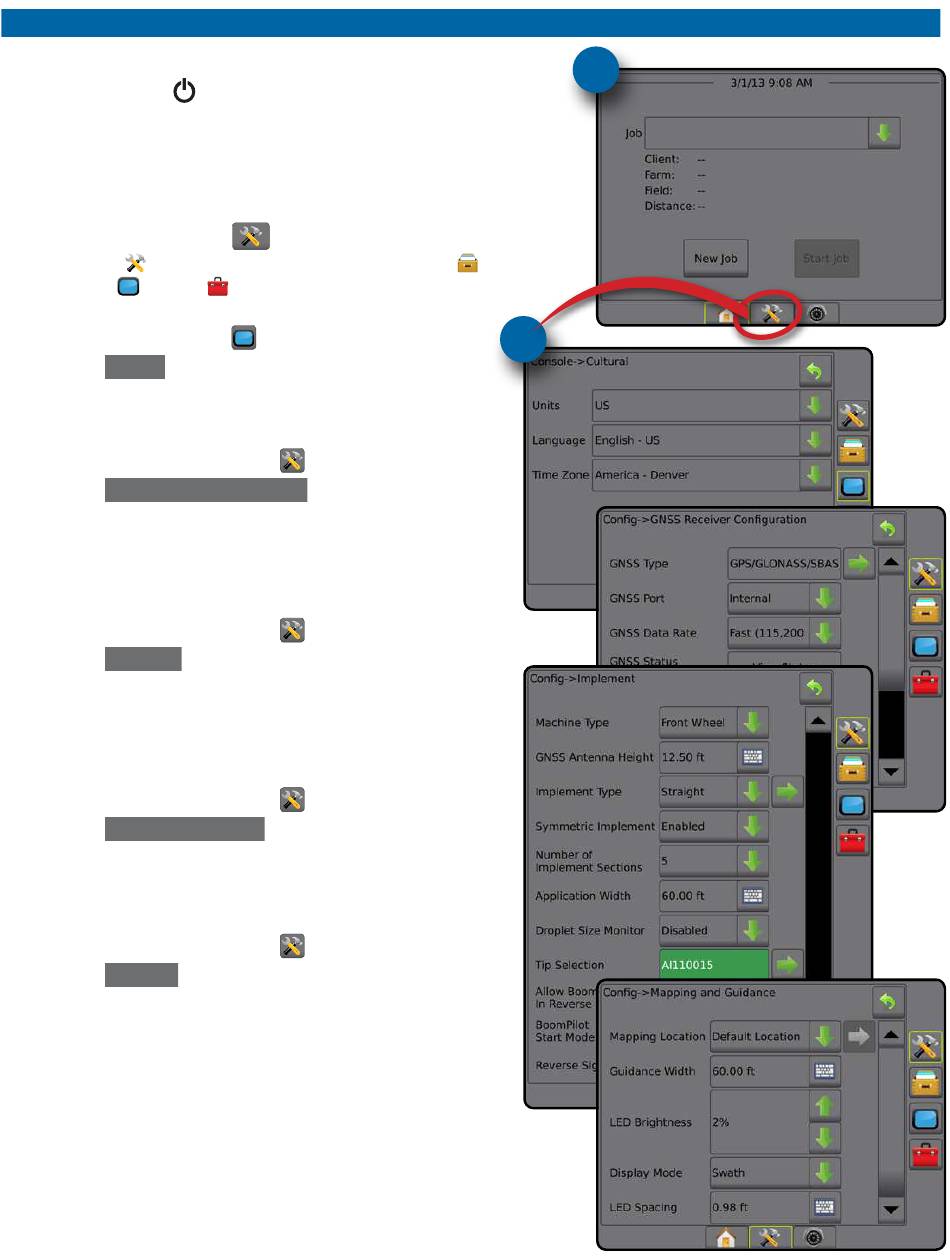

#2 Home Screen
Once the power up sequence has completed, the Home screen will appear with
the option to start a new job or continue an existing job.
#3 Go to Unit Setup
1. Press UNIT SETUP bottom tab
The Configuration options will be displayed first. Data management
Console settings and Tools
Cultural Setup
1. Press CONSOLE side tab
2. Press .
Cultural
Culture is used to configure units, language and time zone settings.
GNSS Receiver Setup
1. Press CONFIGURATION side tab
GNSS Receiver Configuration
2. Press
GNSS Receiver Configuration is used to configure GNSS type, GNSS
port, GNSS data rate, and PRN as well as to view GNSS status
information.
Implement Setup
1. Press CONFIGURATION side tab
2. Press .
Implement
Implement setup is used to establish the various settings associated
with straight mode, spreader mode or staggered mode. Settings will
vary depending on if an AutoSteer or BoomPilot system is present.
Mapping Location Setup
1. Press CONFIGURATION side tab
Mapping and Guidance
2. Press
Mapping location establishes the location from which boundary and
polygon mapping will take place.
AutoSteer Setup
1. Press CONFIGURATION side tab
2. Press .
AutoSteer
When a Steering Control Module (SCM or SCM Pro) is present,
assisted/auto steering options will be available. For detailed setup
instructions, refer to your specific AutoSteer installation manual.
to power on the console.
.
can be accessed through the side tab keys.
.
.
.
.
.
.
.
