Pro 570GS • MATRIX
®
MATRIX

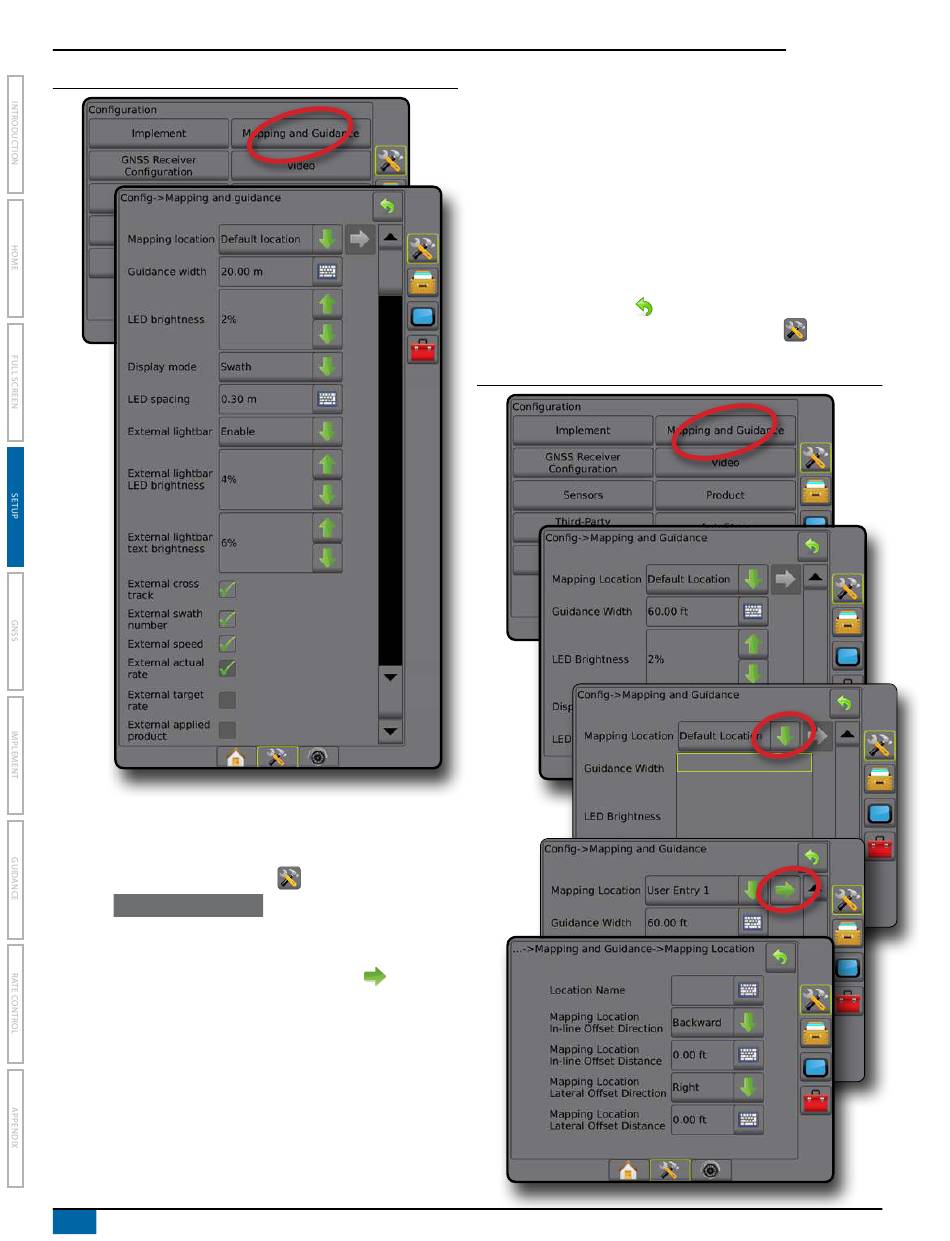

Figure 4-13: Mapping and Guidance with External Lightbar

User Entered Mapping Location

Mapping location establishes the location from which boundary and
polygon mapping will take place.
1. Press CONFIGURATION side tab
Mapping and Guidance
2. Press
3. Select user entry location from the Mapping Locations drop-
down options.
4. Press MAPPING LOCATION NEXT PAGE arrow
the selected specific mapping location options.
5. Select:
►Location Name – used to enter the name of the mapping
location for the current user entry selected
►Mapping Location In-line Offset Direction – used to select
whether the mapping location is located in front of or behind
the GNSS antenna as the vehicle moves in a forward direction
18
www.teejet.com
.
.
to set up
®
Pro 840GS
►Mapping Location In-line Offset Distance – used to define
the in-line distance from the GNSS antenna to the mapping
location
►Mapping Location Lateral Offset Direction – used to select
the lateral direction from the centerline of the machine to
the mapping location while facing in the machine's forward
direction
►Mapping Location Lateral Offset Distance – used to define
the lateral distance from the centerline of the machine to the
mapping location
6. Press RETURN arrow
Guidance screen or CONFIGURATION side tab
the main Configuration screen.
Figure 4-14: User Entered Mapping Location
to return to the Mapping and
to return to
Default Location
User Entry 1
User Entry 2
User Entry 3
User Entry 4
User Entry 5
