Camera Snapshot

RealView Camera Snapshot saves a still photo of the current
view on the screen to a USB drive.
1. Insert USB drive.
2. Press REALVIEW CAMERA FULL SCREEN VIDEO VIEW
bottom tab .
3. Press REALVIEW OPTIONS tab
options.
4. Press CAMERA SNAPSHOT icon

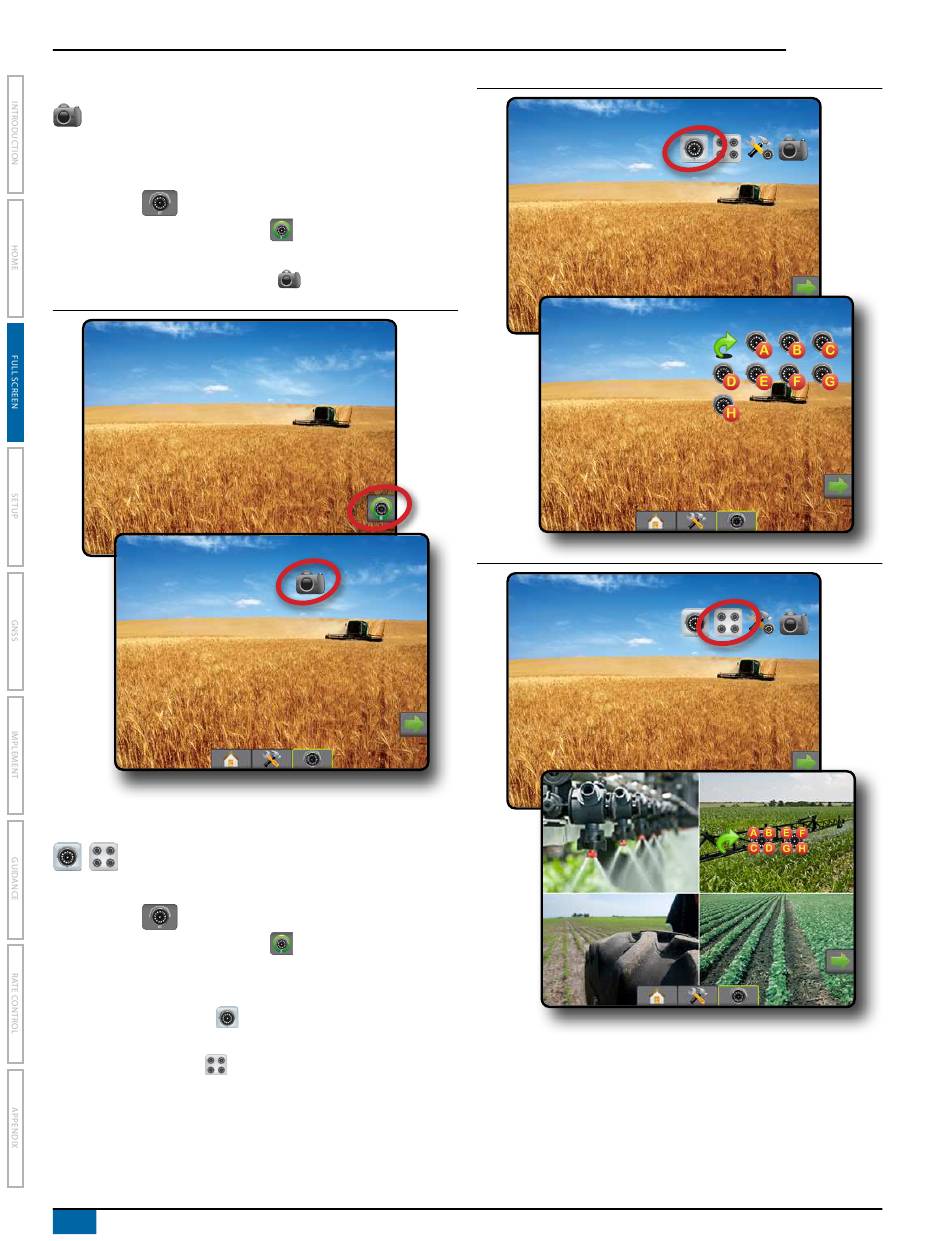

Figure 3-2: RealView Camera Full Screen Video View

VSM Camera Options

If a Video Selection Module (VSM) is installed on the
system, two (2) video options are available:
1. Press REALVIEW CAMERA FULL SCREEN VIDEO VIEW
bottom tab .
2. Press REALVIEW OPTIONS tab
options.
3. Select from:
►Single Camera View
inputs can be selected to change the view of the video input.
►Split Camera View – one (1) of two (2) sets of four (4)
camera inputs (A/B/C/D or E/F/G/H) can be selected to divide
the screen into four separate video feeds.
10
www.teejet.com
to display RealView
.
to display RealView
– one (1) of up to eight (8) camera
®
Pro 840GS
Figure 3-3: Single Camera Selection with VSM
Figure 3-4: Select Split View with VSM
