MAPPING OPTIONS

On vehicle view or field view guidance screens, in any guidance
mode, the mapping options tab displays options to display polygon
maps, coverage maps and application maps.
Polygon and coverage mapping are available when a polygon has
been established.
GNSS-based product application mapping is available when a rate
controller is on the system. Rate control mapping can record areas
covered by the implement (Coverage) or how much product has
been applied and where (Application), and can direct single- and
variable-rate product application (Preset Target rate and Prescription,
respectively).
NOTE: Before using mapping, set or verify product mapping options
under Configuration->Product. Refer to "Product" in the
System setup chapter.

Duplicating and Transferring Maps

Maps are stored in the job data. Using Data-> Job data, job data
containing maps can be duplicated or transferred to Fieldware Link
so the maps can be opened, viewed, edited, and printed, and
transferred back to the console. See "Data management->Job data->
Transfer" and "Data management-> Job data-> Manage" in the
System setup chapter for details.
Using Data-> Reports, reports in multiple formats can be generated
that contain data and any maps from the job.
To access Application mapping:
1. Press VEHICLE VIEW GUIDANCE bottom tab
VIEW GUIDANCE bottom tab
2. Press MAPPING OPTIONS tab
3. Select one or more:

►Coverage map

– shows areas covered by the implement,
regardless of whether product was applied
►Polygons – shows all mapped polygons
►Prescription map – pre-loaded map that provides
information to the rate controller for use in applying product
►Application map – shows how much product has been
applied and where, using color to indicate level in proportion
to preset or automatically set maximum and minimum levels
►Target rate map – shows the application rate that the rate
controller attempted to achieve at each location
NOTE: Application map and Target rate map cannot be selected
simultaneously.
Pro 570GS • MATRIX
®
MATRIX
. or FIELD
.
to display mapping options.

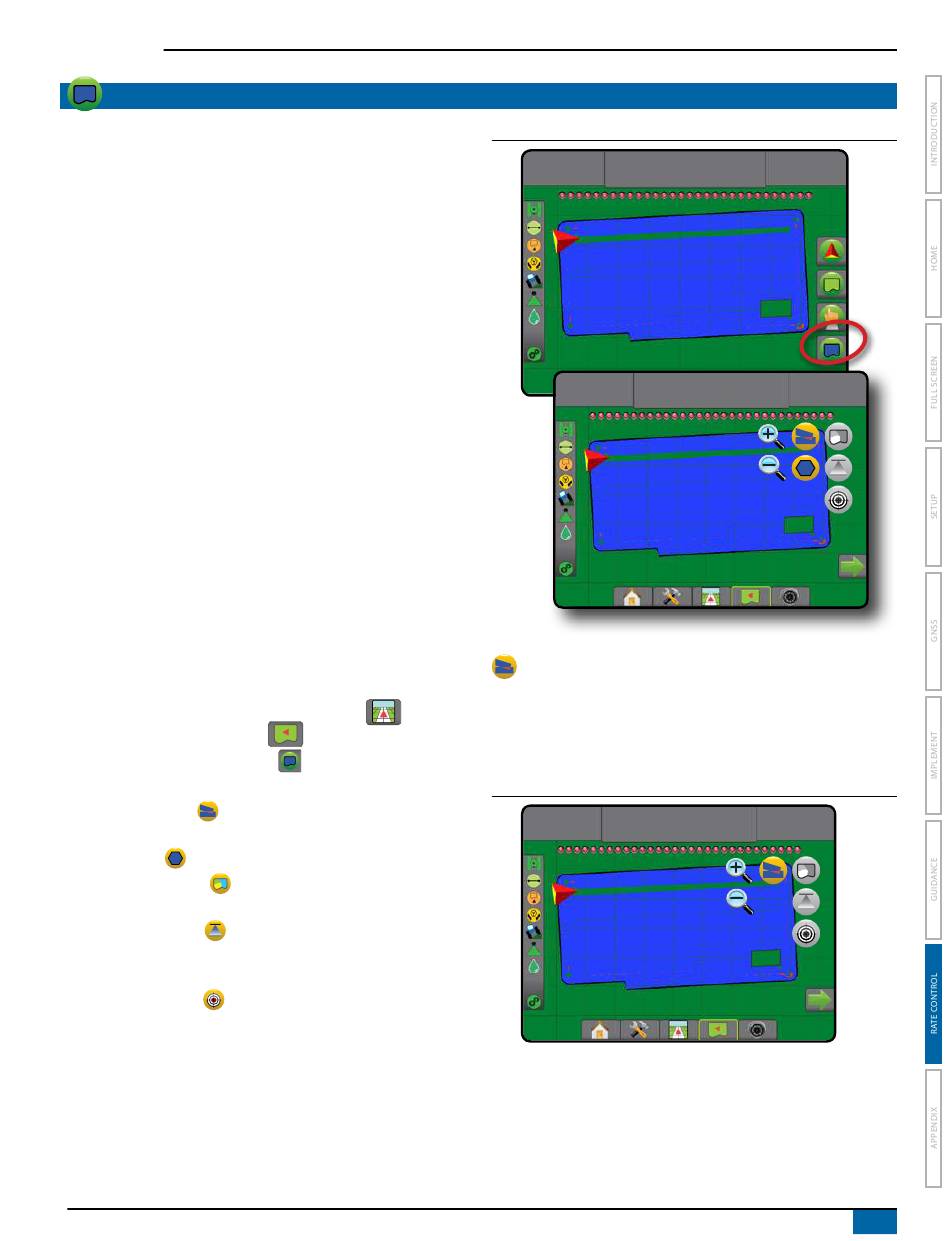

Figure 8-6: Coverage, Polygon and Target Rate Maps
27.00 Mark A
ha
27.00
ha
Coverage Map
Coverage map showing areas covered by the implement.

On Screen Mapping

• Coverage Area – illustrates applied area and overlap:
◄Blue – one application
◄Red – two or more applications
Figure 8-7: Coverage map
27.00 Mark A
ha
®
Pro 840GS
10.0
km/h
10.0
Mark A
km/h
10.0
km/h
