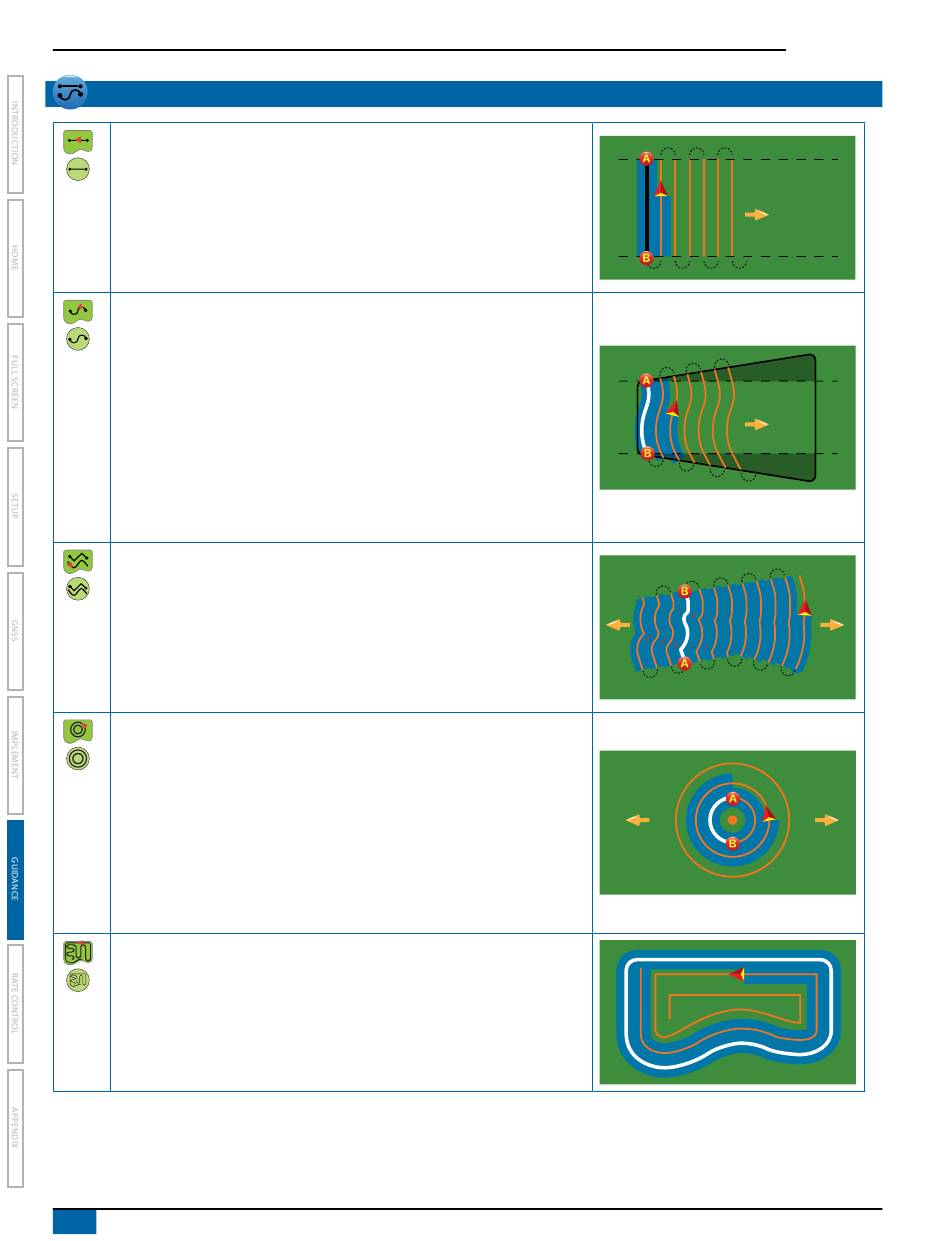

GUIDANCE MODES

Straight AB Guidance

Straight AB Guidance provides straight-line guidance based on A and B
reference points. The original A and B points are used to calculate all other
parallel guidelines.
NOTE: Offset to adjacent guidelines will be calculated using the guidance
width: see "Configuration-> Mapping and guidance" in the System setup
chapter.

Curved AB Guidance

Curved AB Guidance provides guidance along curved lines based on an initial
AB reference line. This initial baseline is used to calculate all other guidelines.
NOTE: Curved guidance is recommended not to exceed 30° within the AB
guideline.
Offset to adjacent guidelines will be calculated using the guidance
width: see "Configuration-> Mapping and Guidance" in the System
setup chapter.
HINT: While working in a bounded area, the guidance pattern extending
beyond the established AB points will be straight-line guidance.

Adaptive Curve AB Guidance

Adaptive Curve Guidance* provides guidance along a curved line based on
an initial AB reference line where each adjacent guideline is drawn from the
projected guidance width and heading.
NOTE: Offset to adjacent guidelines will be calculated using the guidance
width: see "Configuration-> Mapping and Guidance" in the System
setup chapter.

Circle Pivot Guidance

Circle pivot guidance provides guidance around a central location that radiates
inward or outward based on an initial AB reference line. This initial baseline is
used to calculate all other guidelines.
It is used for product application in a center pivot field while being guided along
a circular guideline that matches a center pivot irrigation system radius.
NOTE: Offset to adjacent guidelines will be calculated using the guidance
width: see "Configuration-> Mapping and Guidance" in the System
setup chapter.

Last Pass Guidance

Last pass guidance* offers true last-pass navigation. The console will
automatically detect the nearest applied area and establish parallel guidelines
based on that area.
NOTE: If a boundary is established but no application occurred during the
boundary process, guidance will not initiate.
