UPS5000-E-(30 kVA–180 kVA)
User Manual (Integrated UPS)
Battery parameter settings are critical to battery maintenance, battery lifespan,
and UPS discharge time. When you set battery parameters, note the following:
● When you set parameters, ensure that: Dis. cur. 0.1C EOD (V/Cell) ≥ Dis. curr.
● A cell consists of electrodes and electrolyte and is the basic unit of a battery.

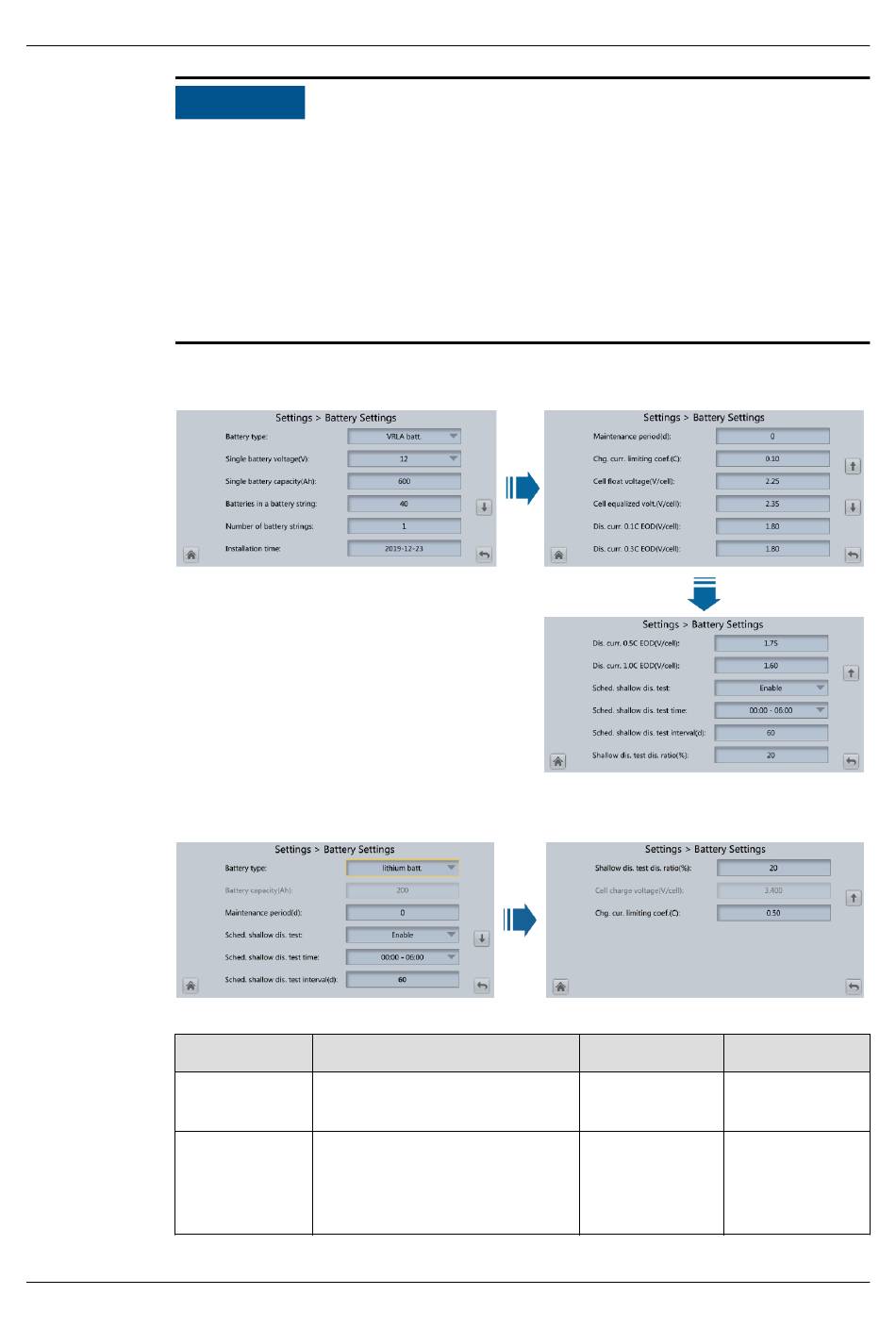

Figure 4-32 Battery Settings (lead-acid battery)
Figure 4-33 Battery Settings (lithium battery)
Item
Battery type
Battery
capacity(Ah)
Issue 02 (2022-12-30)
NO TICE
0.3C EOD(V/cell) ≥ Dis. curr. 0.5C EOD(V/cell) ≥ Dis. curr. 1.0C EOD(V/cell)
Each cell has a nominal voltage of 2 V. A battery is a module consisting of a
single cell or multiple cells assembled in a shell. Each battery has a nominal
voltage of 2 V, 6 V, or 12 V.
Description
Specifies the type of batteries
connected to the UPS.
Specifies the capacity of
lithium batteries connected
to the UPS (the value is
automatically obtained).
Copyright © Huawei Digital Power Technologies Co., Ltd.
4 LCD Interface
Default Value
Value Range
VRLA batt.
VRLA batt.,
Lithium batt.
-
-
107
