The Weight Calibration Scale - General Measure Checkweigher User Manual

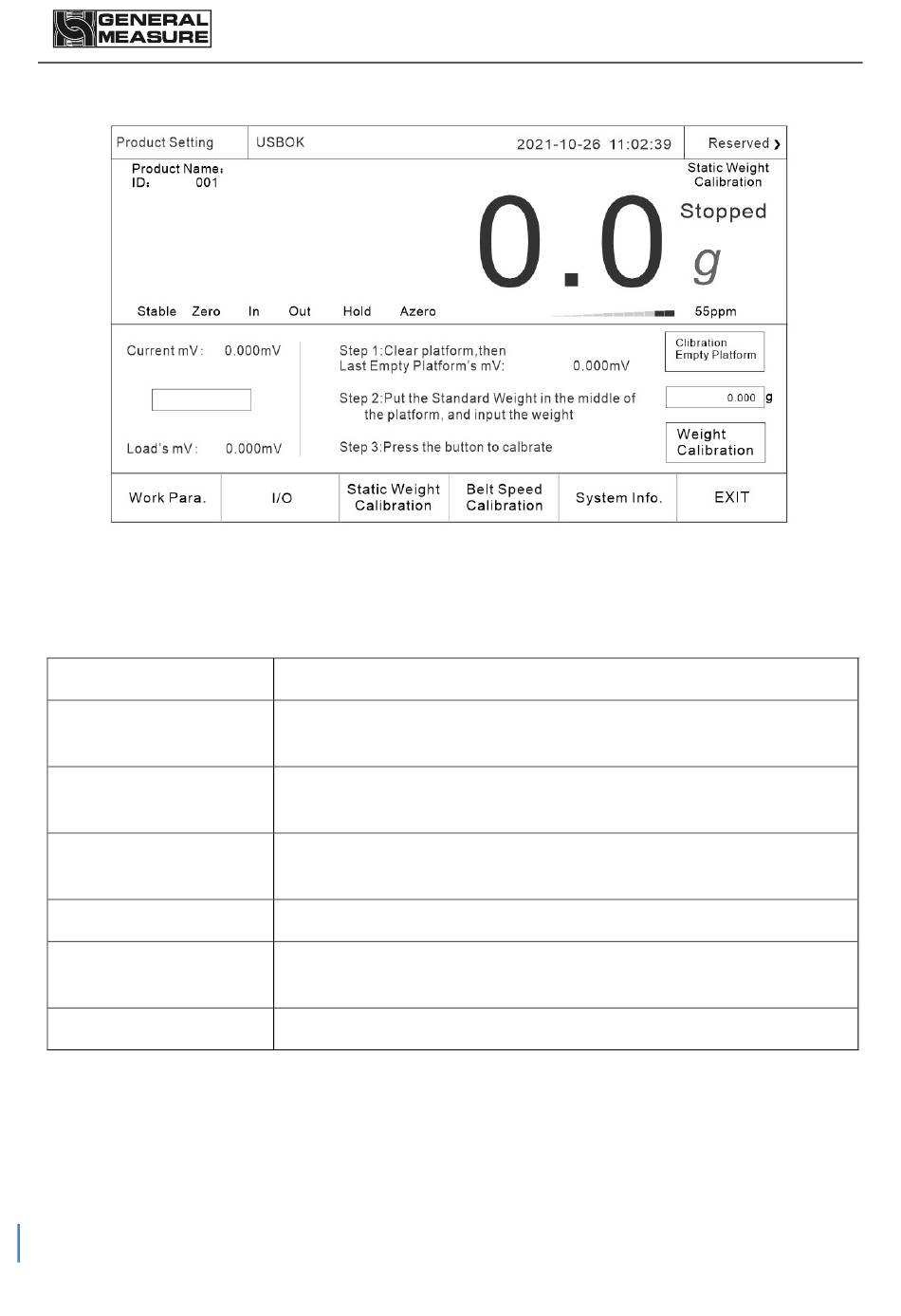

Figure 3-11 shows an example of the weight calibration interface
Description of static calibration parameters:
Name
Calibrate the empty
scale table
Calibrate the scale
weight
The weight calibration
scale
Current voltage value
Empty scale voltage
value
Weight voltage value

3.6.1 The weight calibration scale

In the setting page, click "Static calibration" to enter the interface of weight
calibration, follow the steps on the touch screen to calibrate the scale, and click "Exit" to
return to the main interface after the calibration is completed.For specific operation
methods, please refer to "Operation Instructions on Buttons and Operation Frames" in
Section 3.3.2.
Instructions
Eliminate external interference, the scale table at zero and
stable, can be clicked
Enter the weight of the calibration weight
Put the weight on and after entering the weight of the weight,
click
The current voltage value of the sensor
The voltage value of the sensor when the top of the scale is
emptied
The voltage value of the sensor after placing the weight
