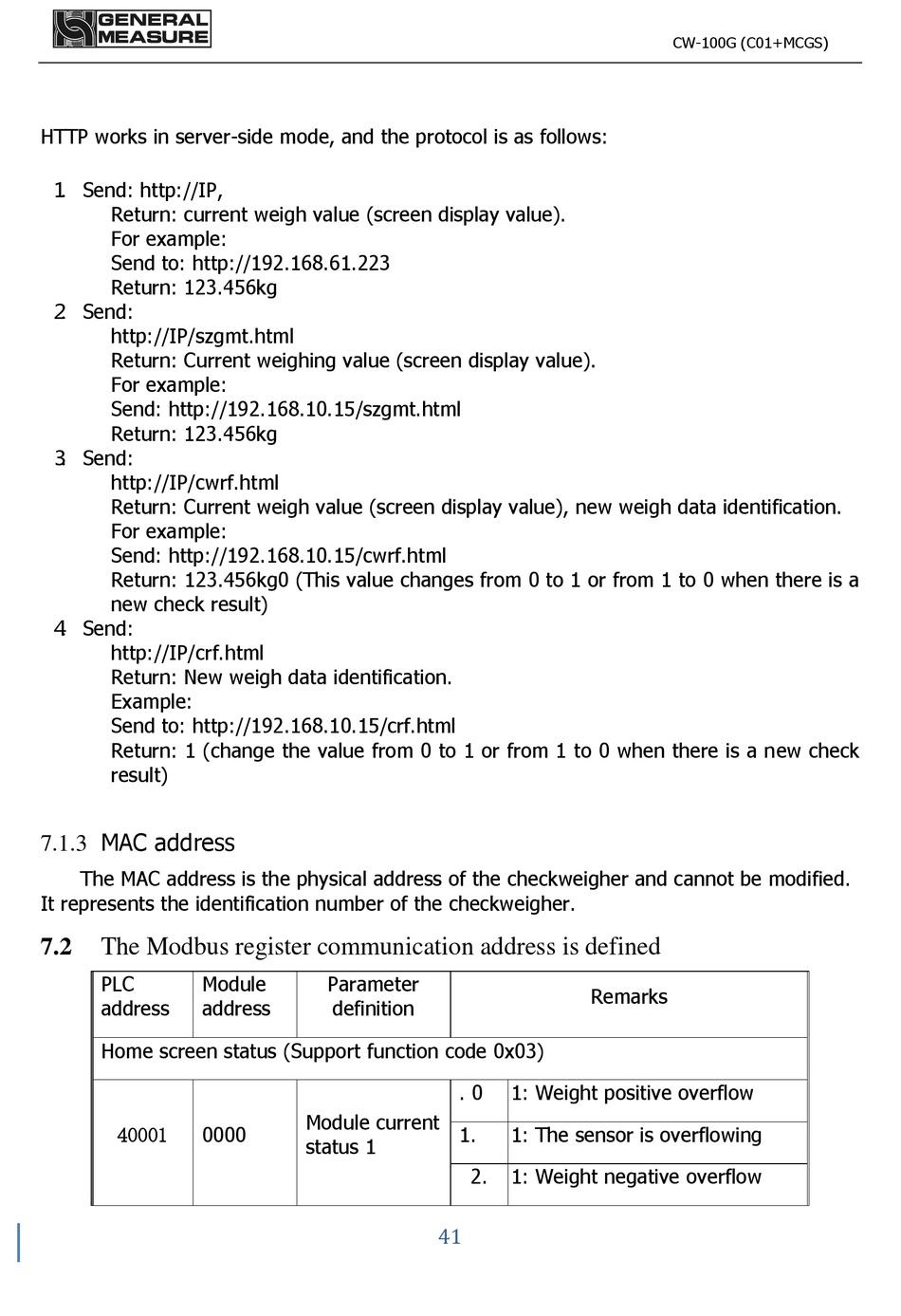

HTTP works in server-side mode, and the protocol is as follows:
⒈ Send: http://IP,
Return: current weigh value (screen display value).
For example:
Send to: http://192.168.61.223
Return: 123.456kg
⒉ Send:
http://IP/szgmt.html
Return: Current weighing value (screen display value).
For example:
Send: http://192.168.10.15/szgmt.html
Return: 123.456kg
⒊ Send:
http://IP/cwrf.html
Return: Current weigh value (screen display value), new weigh data identification.
For example:
Send: http://192.168.10.15/cwrf.html
Return: 123.456kg0 (This value changes from 0 to 1 or from 1 to 0 when there is a
new check result)
⒋ Send:
http://IP/crf.html
Return: New weigh data identification.
Example:
Send to: http://192.168.10.15/crf.html
Return: 1 (change the value from 0 to 1 or from 1 to 0 when there is a new check
result)

7.1.3 MAC address

The MAC address is the physical address of the checkweigher and cannot be modified.
It represents the identification number of the checkweigher.
7.2

The Modbus register communication address is defined

PLC Module
address address
Home screen status (Support function code 0x03)
0000
40001
Parameter
definition
. 0
Module current
1.
status 1
2.
41
CW-100G (C01+MCGS)
Remarks
1: Weight positive overflow
1: The sensor is overflowing
1: Weight negative overflow
