Basic operation

3.3
The main interface of weight inspection is used for daily production, which is used to
start and stop the weight inspection belt, enter the relevant parameter interface and
display the basic information of the tested product and the weight inspection result.

3.3.1 Power-on operation

Power on and turn the knob switch to the "1" position. The power-on touch screen of
the electric cabinet displays the initialization interface. At the top of the interface are USB
insert mark, check scale model and time display; The black display area is the name of the
current production inspection product, the weight display area, the weight unit display area
and the weight check scale status display area; In the middle is the current setting of
weight checking speed, the current actual weight checking speed and the display statistics
of weight checking results; At the bottom are the function keys of the operation of the
weight check scale and the parameters related to the weight check.
 Correct time parameters can effectively help users check the production inspection results,
relevant production parameter changes and alarm information, help to improve the
production pass rate and production speed and reduce production consumption.
 The weight display area of the checkweigher displays the real-time weight value in the
stopped state, and displays the weight test result in the running state until the next
object is effective.
Button and operation frame operation instructions (applicable to all operation interfaces of
the device) :

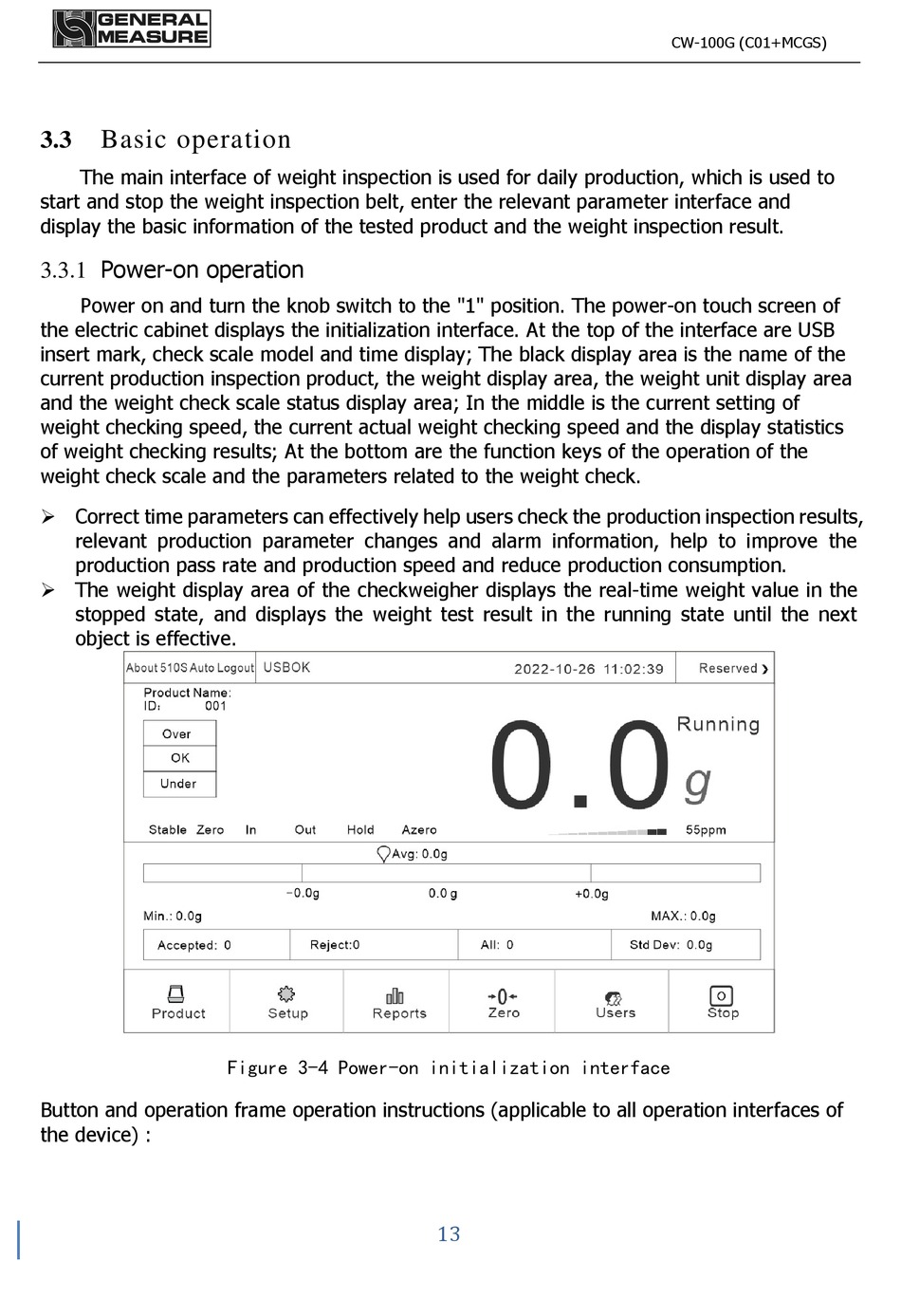

Figure 3-4 Power-on initialization interface
