Product selection with New

3.5

3.5.1 Select product parameters

Click "Product" under the main interface to enter the product list interface. First, click
the product to be checked in the product list, then click "Select Product" to select the
product, click "Exit" to go to the main interface and click "Start" to check the product.
 After the product is successfully selected, the current number will be displayed as the
number of the selected product in the upper right corner of the product list page.
 The new product number cannot be selected during the operation of the weight check
scale;By default, the product number selected by the checkweigher before exit (stop
operation or the checkweigher power off).

3.5.2 New product parameters

On the product list page, click "Add Product" to jump to the "Product Parameters"
interface to add a new product parameter. The new product number will be added to the
existing product in sequence. You do not need to select the product number.For details,
refer to "Operation Instructions on Buttons and Operation Frames" in Section 3.3.2.
★ The new product number cannot be added during the operation of the weight check
scale;The newly added product parameter values are the default initial values of the
system, which need to be set according to the actual product parameters and production
requirements.

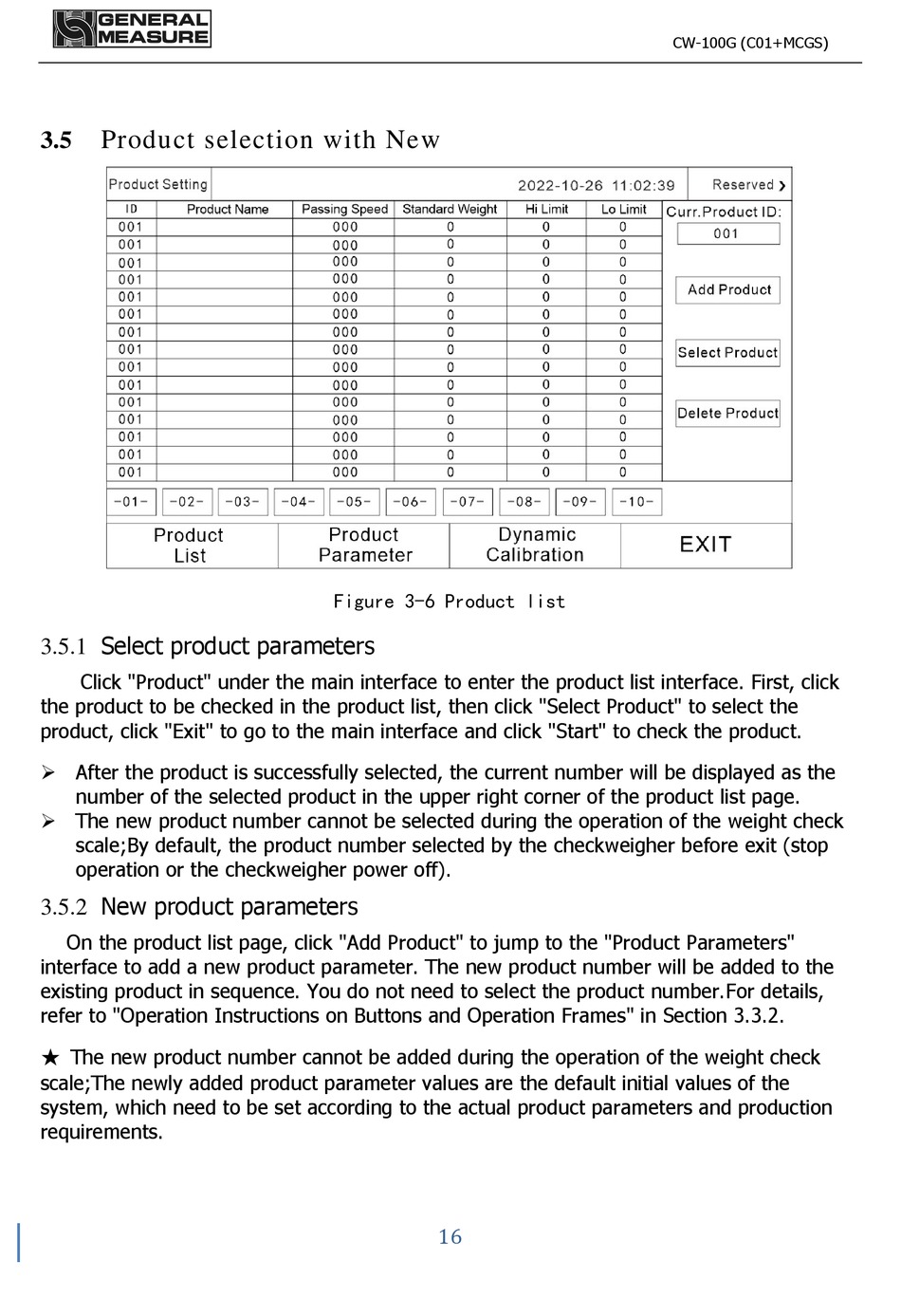

Figure 3-6 Product list
