Assembly
5.4 Mounting the Sunny WebBox on the Top-Hat Rail
1. Determine the mounting location taking into consideration the mounting / installation location
requirements.

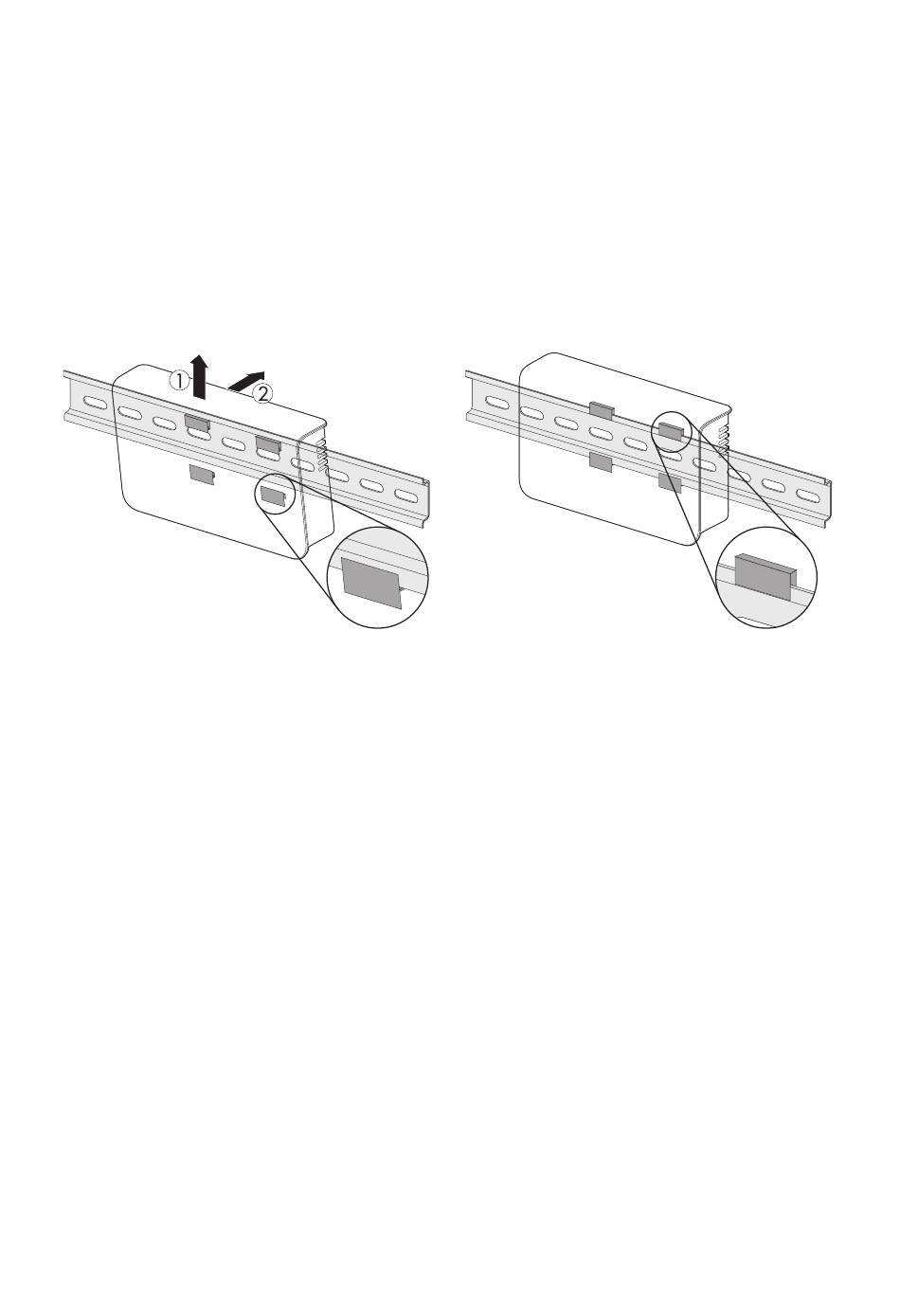

2. Hook the Sunny WebBox with both lower retainers into the lower edge of the top-hat rail.
3. Press the Sunny WebBox upwards and snap it into the upper brackets.
☑ The Sunny WebBox is now mounted on the top-hat rail.
