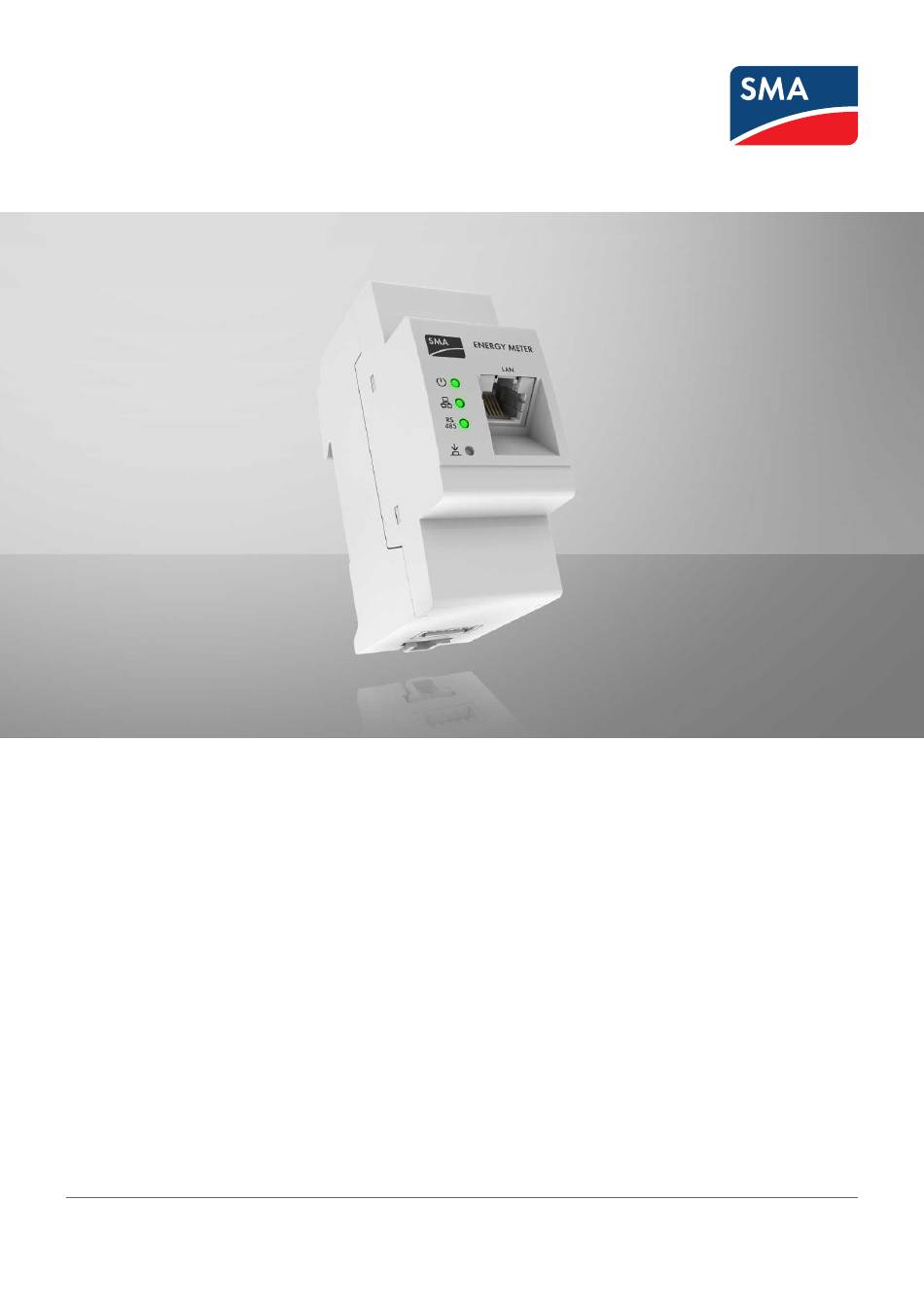

- Page 1 Replacement Manual SMA COMMMERCIAL ENERGY METER COM-EMETER-A-20 / COM-EMETER-B-20 ENGLISH ESSX-20-EMETER-RM-en-10 | Version 1.0...
- Page 2 Legal Provisions The information contained in these documents is the property of SMA Solar Technology AG. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, be it electronic, mechanical, photographic, magnetic or otherwise, without the prior written permission of SMA Solar Technology AG.
-
Page 3: Table Of Contents
SMA Solar Technology AG Table of Contents Table of Contents Information on this Document..................... Validity................................Target Group ..............................Content and Structure of this Document......................Levels of Warning Messages.......................... Symbols in the Document..........................Typographies in the document........................Designations in the Document......................... -
Page 4: Information On This Document
• Knowledge of all applicable laws, regulations, standards, and directives • Knowledge of and compliance with this document and all safety information • Successful participation in a certification training program for the SMA Commercial Storage Solution Content and Structure of this Document This document describes the replacement and firmware update of components. -
Page 5: Typographies In The Document
Mounting, installation, commissioning, operation, troubleshooting, and decom- missioning of the SMA Commercial Energy Meter SMA COMMERCIAL STORAGE SOLUTION 30 / 50 System manual Mounting, installation, commissioning, configuration, operation, troubleshooting, and decommissioning of the SMA Commercial Storage Solution Replacement Manual ESSX-20-EMETER-RM-en-10... -
Page 6: Safety
Any use of the product other than that described in the Intended Use section does not qualify as appropriate. The documentation supplied is an integral part of SMA products. Keep the documentation in a convenient, dry place for future reference and observe all instructions contained therein. -
Page 7: Product Description

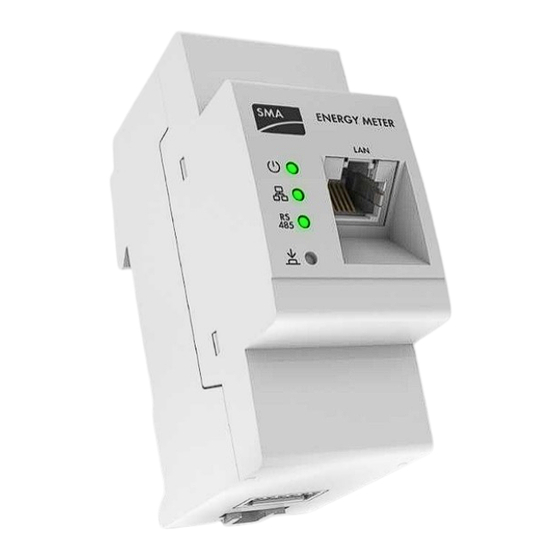

SMA Solar Technology AG 3 Product Description 3 Product Description Figure 1: Design of the Energy Meter Position Designation Status LED Network LED Not used Button Network port Voltage input (L1, L2, L3 and N) Terminal for current transformer (L1, L2 and L3) -
Page 8: Receipt Of A Replacement Device
4 Receipt of a Replacement Device SMA Solar Technology AG 4 Receipt of a Replacement Device Procedure for replacing an Energy Meter Procedure 1. Removing the Energy Meter Section 4.2, page 8 2. Installing the Energy Meter Section 4.3, page 9 3. Including a new Energy Meter in the device administration Section 4.4, page 9... -
Page 9: Installing The Energy Meter
☑ The Device registration function opens. 6. Select SMA Speedwire devices as a first step. ☑ The number of SMA Speedwire devices found is displayed. 7. Select the [Continue] button. 8. Select the new Energy Meter. To do this, use the serial number of the new Energy Meter. -
Page 10: Deleting A Defective Energy Meter From The Device Administration
4 Receipt of a Replacement Device SMA Solar Technology AG Deleting a defective Energy Meter from the device administration Requirements: ☐ The user interface of the inverter must be open and you must be logged in as Installer or Administrator. -
Page 11: Firmware Update
• Procedure for Updating the Firmware ⇒ page 11 Procedure for Updating the Firmware This section describes the procedure for updating the firmware of the Energy Meter in the SMA Commercial Storage Solution. It provides an overview of the steps, which must be performed in the prescribed sequence. -
Page 12: Device Properties Of The Energy Meter
5 Firmware Update SMA Solar Technology AG Device Properties of the Energy Meter Figure 2: Device properties of the Energy Meter relevant to the firmware update Position IP address of the Energy Meter (e.g.: 192.168.178.27) Current firmware version of the Energy Meter (e.g. 1.2.4.R) During the firmware update, some device properties of the Energy Meter must be accessed. -
Page 13: Website On The Firmware Update Of The Energy Meter
SMA Solar Technology AG 5 Firmware Update Website on the firmware update of the Energy Meter Figure 3: Website of the Energy Meter for the firmware update of the Energy Meter (example) A separate website is used for the firmware update of the Energy Meter. This website can be called up via the IP address of the Energy Meter. -
Page 14: Checking The Firmware Update
5 Firmware Update SMA Solar Technology AG 3. When the status LED is no longer flashing, open the web browser on your terminal and enter the IP address of the Energy Meter in the address bar of the web browser. -
Page 15: Contact
SMA Solar Technology AG 6 Contact 6 Contact https://go.sma.de/service Replacement Manual ESSX-20-EMETER-RM-en-10... - Page 16 www.SMA-Solar.com...
