1. Go to Configuration → Event → Smart Event → Unattended Baggage Detection .
2. Check Enable.
3. Select one Region. For the detection region settings, refer to Draw Area .
4. Set rules.
Sensitivity
Sensitivity stands for the percentage of the body part of an acceptable target that enters the
pre-defined region. Sensitivity = 100 - S1/ST × 100. S1 stands for the target body part that
goes across the pre-defined region. ST stands for the complete target body. The higher the
value of sensitivity is, the more easily the alarm can be triggered.
Threshold
It stands for the time of the objects left in the region. Alarm is triggered after the object is left
and stays in the region for the set time period.

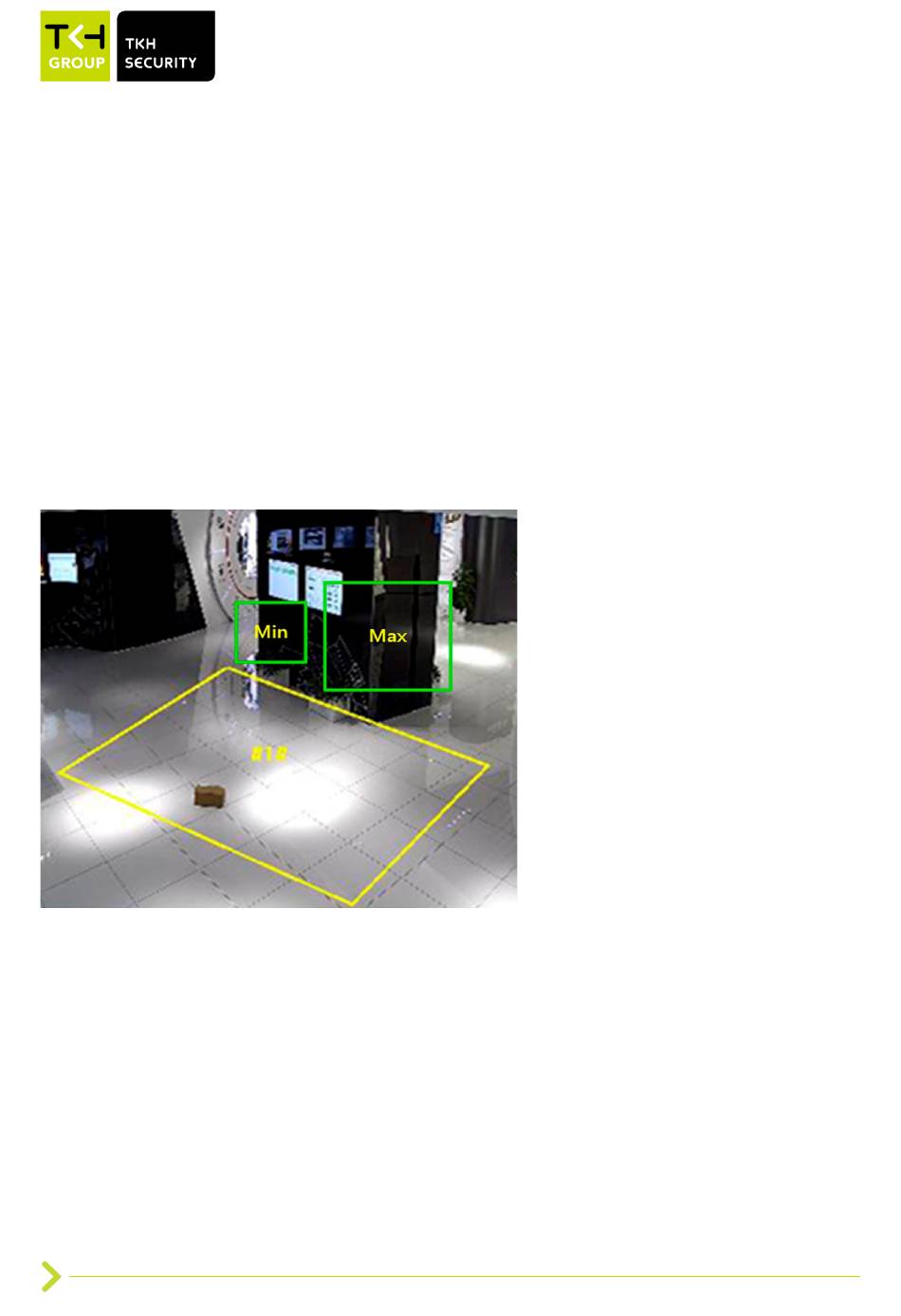

Figure 2-12 Set Rule
5. Optional: You can set the parameters of multiple areas by repeating the above steps.
6. For the arming schedule settings, refer to Set Arming Schedule . For the linkage method
settings, refer to Linkage Method Settings .
7. Click Save.
Set Object Removal Detection
It detects whether the objects are removed from the pre-defined detection region, such as the
exhibits on display. If it occurs, the device can take linkage actions and the staff can take measures
to reduce property loss.
Steps
1. Go to Configuration → Event → Smart Event → Object Removal Detection .
