TKH security BC822v2H3 Quick Start Manual

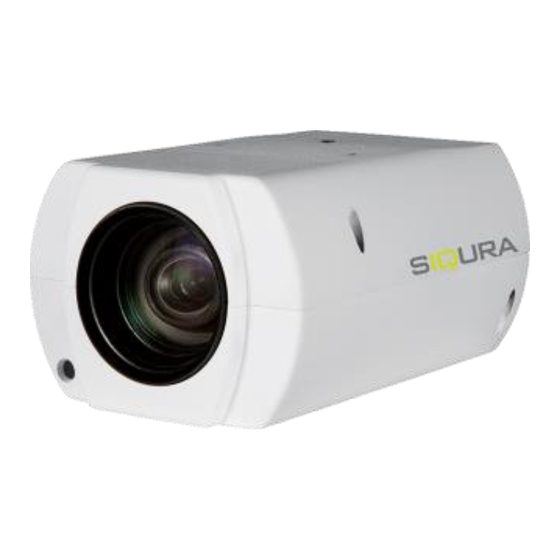

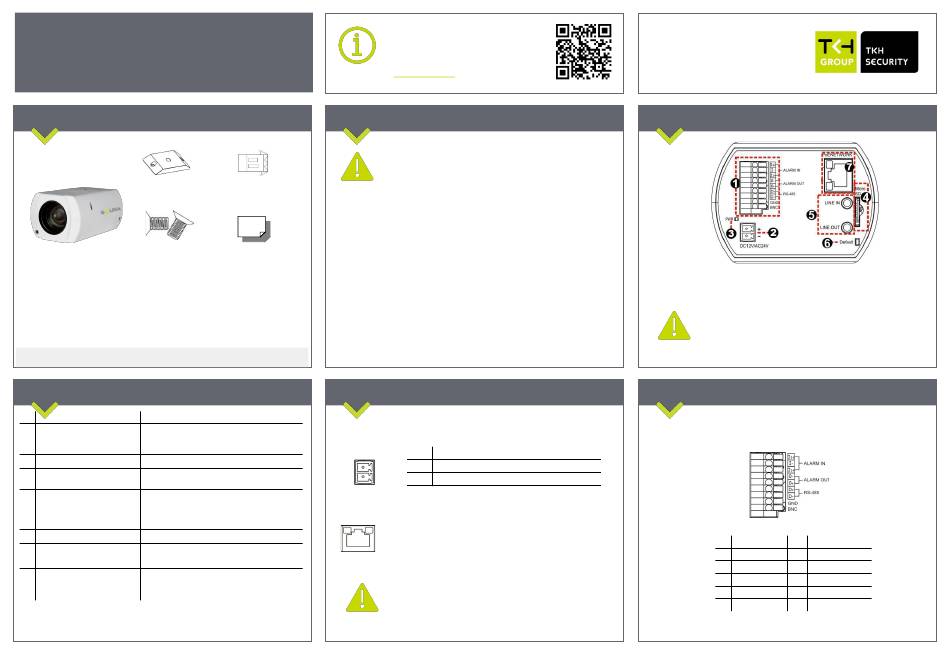

BC822v2H3
3MP IP Box Camera with 33x* zoom lens
Quick Start Guide
Unpack
Bracket Adapter
BC822v2H3 M3 Mechanical
Camera Unit Screw (x2)
33x* : recent models have new zoom block, that is made
backwards compatible
Subject to modification. Actual product and accessories may differ in appearance.
Connector Definition
No. Connector
Audio/Alarm I/O & RS-485 connection.
1 Alarm I/O & RS-485 Do not connect external power to the
alarm I/O connector of the camera.
2 Power (DC12V / AC24V) DC 12V / AC24V power connector
Power LED lights up when the camera is
3 Power LED
powered on.
Insert the microSD card into the card slot
to store videos and snapshots. Do not
4 microSD Card Slot
remove the microSD card when the
camera is powered on.
5 Audio (LINE IN/OUT) Two-way audio transmission
Press the button with a proper tool for at
6 Reset Button
least 20 seconds to restore the system.
Network and PoE connections. Contact
RJ-45
7 TKH Security for a compatible PoE
injector.
Table 1 Connector definitions
© TKH Security B.V. 2024 | Version 2.1 (20240122) | BC822v2H3 QSG
2-pin power terminal
block
Quick Start Guide
Definition
Power Connector (DC 12V)
+ 1
- 2
❑ The green link LED is lit when there is a good
❑ The orange network LED flashes to indicate that
Find additional manuals, the
datasheet, the EU Declaration of
Conformity, and the latest firmware
for this product at:
tkhsecurity.com
Installation Notices
Caution
Installation shall be performed by qualified personnel
only.
Installation shall be in accordance with local
procedures.
The camera contains replaceable batteries. Make sure
you replace them with the right type of batteries in view
of the risk of explosion.
Dispose of used batteries in accordance with local
regulations.
If you use an external power supply, contact TKH
Security to make sure that the power supply has the
proper power specifications.
Make sure that the power supply complies with LPS
requirements.
When installing the camera, hook up the camera with
the anti-drop chain of the pendant to the anti-drop ring
(see figure 1).
For more inforation, contact TKH Security.
Camera Cabling
Pin Definition
1 DC12V +
2 DC12V -
network connection.
there is network activity.
Note
In some cases, an Ethernet crossover cable may be
needed when connecting the camera directly to the
PC. Check the status of the link indicator and the
activity indicator LEDs. If the LEDs are unlit, check the
LAN connection.
Connectors
Figure 1 Camera Connectors
For the connector definitions, see table 1.
Note
It is not recommended to continuously (24/7) record
with the micro SD card, as the camera may not
support long-term continuous data read/write. Contact
the manufacturer of the micro SD card for information
regarding the reliability and the life expectancy.
Alarm I/O and RS-485 Connection
See the diagram and the pin definitions below for the
Audio/Alarm I/O and RS-485 connection.
Figure 2 Diagram of Alarm I/O and RS-485 connection pins
Pin Definition Pin Definition
1 Alarm In 2+ 6 RS-485 D+
2 Alarm In - 7 RS-485 D-
3 Alarm In 1+ 8 GND
4 Alarm Out - 9 BNC
5 Alarm Out +
Table 3 Pin definitions for Alarm I/O and RS-485 connection
