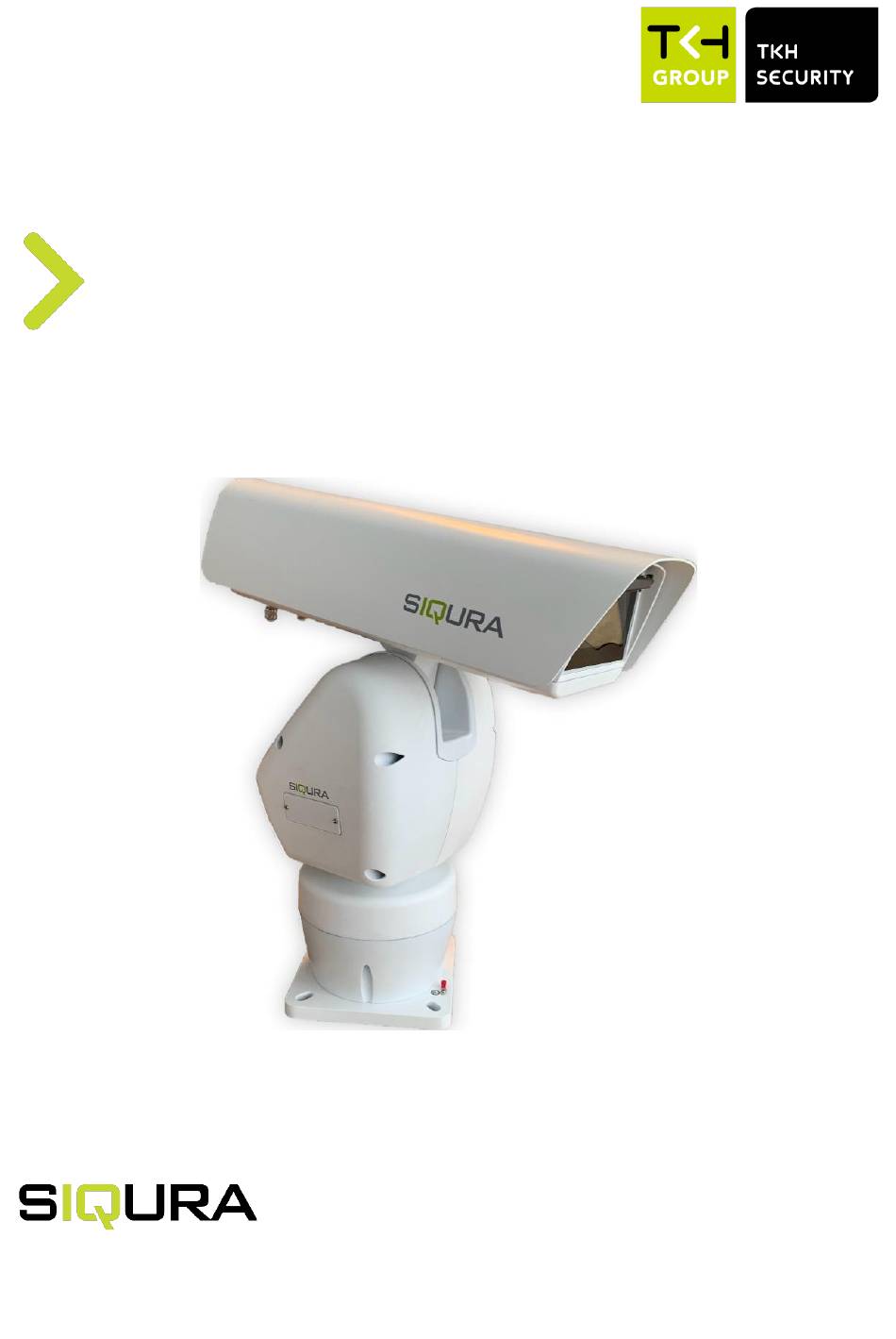

- Page 1 UP Series Installation manual FUP33 and UP36 camera station Copyright © 2021 TKH Security. Version 1.0. DRAFT TKH Security | Siqura UP Series | Installation manual v1.1...
- Page 2 Any brand names mentioned in this manual are registered trademarks of their respective owners. Liability TKH Security accepts no liability for claims from third parties arising from improper use other than that stated in this manual. Although considerable care has been taken to ensure a correct and suitably comprehensive description of all relevant product components, this manual may nonetheless contain errors and inaccuracies.
-
Page 3: Table Of Contents
Contents Contents ..........................3 Important Safety Instructions ....................4 Description & Models ......................6 Installation & Connections ....................7 Installing the washer nozzle ....................14 Maintenance ........................15 TKH Security | Siqura UP Series | Installation manual v1.1... -
Page 4: Important Safety Instructions
Power the unit with 24 Vac / 3 A (75 W) power supply. Incorrect Power Supply Voltage may damage the unit. Do not overload the terminal connection, as it may cause a fire or electrical shock hazard. TKH Security | Siqura UP Series | Installation manual v1.1... - Page 5 Earth cable should be about 10mm longer than the other cables on the connector, in such way that it won't be accidentally disconnected if the cable is stretched or pulled. When leaving the unit unused for long periods, disconnect supply cables. TKH Security | Siqura UP Series | Installation manual v1.1...
-
Page 6: Description & Models
- Upright PTZ, 33x zoom, 24 Vac UP36 - Upright PTZ, 36x zoom, 24 Vac UP-IR200 - IR illumination kit for Upxx, 200m, 25°, 850 nm UP-WM - Wall mount bracket for UPxx TKH Security | Siqura UP Series | Installation manual v1.1... -
Page 7: Installation & Connections
TKH Security Proposal | RFP Name | RFP Number Installation & Connections Overview Sunshield Wiper Main body Base housing Zoombox camera Telemetry card Washer control Not connected Ethernet (RJ45) Camera and IR power TKH Security | Siqura UP Series | Installation manual v1.1... - Page 8 Cable Cabl Connect the IR-illuminator power cables and RS485 control cable with indicated terminals on the telemetry board. TKH Security | Siqura UP Series | Installation manual v1.1...
- Page 9 IR-illuminator to access the DIP switch. The channel is determined by DIP switch 2: Channel 1 (Left) Channel 2 (Right) DIP switches 1 and 3 should always be set to “off”. TKH Security | Siqura UP Series | Installation manual v1.1...
- Page 10 60 kg. (M10x30 is recommended) Washer Anchor bolts (M10x30) Rear gasket Replace the rectangle shaped base-plate from the base housing with the wallmount adapter. Disassemble the wallmount cable management cover TKH Security | Siqura UP Series | Installation manual v1.1...
- Page 11 Mount the UP33 or UP36 on the wallmount bracket. Lead the multicable tail through the cable tray of the bracket. Reassemble the cover of the wallmount bracket. Connections Washer control Not connected Ethernet (RJ45) Camera and IR power TKH Security | Siqura UP Series | Installation manual v1.1...
- Page 12 The washer control is connected by the ALARM-out wires. Cable Label Cable color Remarks ALARM IN Black Not used Brown ALARM OUT NO Normally open (Washer) ALARM OUT NC Orange Normally closed ALARM OUT COM Yellow Common (Washer) TKH Security | Siqura UP Series | Installation manual v1.1...
- Page 13 Define a washer position by setting one of the presets to P=0,T= 90. The camera has to move to this preset before the washer is activated. (Wiper & washer are supported by VDG Sense using the “onvif” driver) TKH Security | Siqura UP Series | Installation manual v1.1...
-
Page 14: Installing The Washer Nozzle
Define a washer position by setting one of the presets to P=0,T= 90. The camera has to move to this preset before the washer is activated. (The wipe/washer are supported by VDG Sense using the “onvif” driver) TKH Security | Siqura UP Series | Installation manual v1.1... -
Page 15: Maintenance
(O-ring grease) to prevent them from getting too dry and to ensure their watertightness. Replace the sealings when necessary. It is recommended to replace the fan inside the top housing every two years. For replacement parts, please, contact TKH Security. TKH Security | Siqura UP Series | Installation manual v1.1... - Page 16 TKH Security Proposal | RFP Name | RFP Number tkhsecurity.com Brands Our Brands © 2020, TKH Security. © 2021, TKH Security. TKH Security | Siqura UP Series | Installation manual v1.1...
