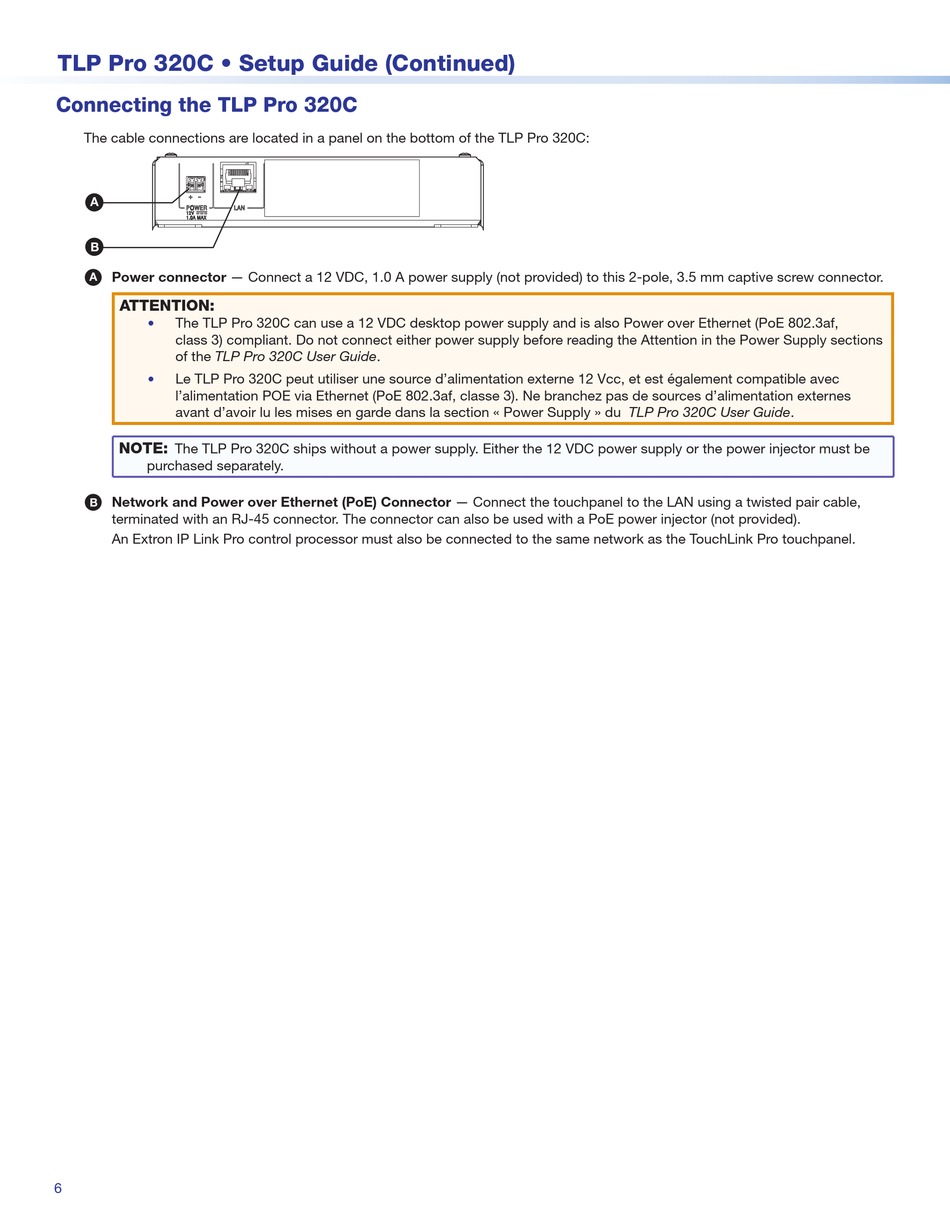

TLP Pro 320C • Setup Guide (Continued)

Connecting the TLP Pro 320C

The cable connections are located in a panel on the bottom of the TLP Pro 320C:
A A
B B
Power connector — Connect a 12 VDC, 1.0 A power supply (not provided) to this 2-pole, 3.5 mm captive screw connector.
A
ATTENTION:
• The TLP Pro 320C can use a 12 VDC desktop power supply and is also Power over Ethernet (PoE 802.3af,
class 3) compliant. Do not connect either power supply before reading the Attention in the Power Supply sections
of the TLP Pro 320C User Guide.
• Le TLP Pro 320C peut utiliser une source d'alimentation externe 12 Vcc, et est également compatible avec
l'alimentation POE via Ethernet (PoE 802.3af, classe 3). Ne branchez pas de sources d'alimentation externes
avant d'avoir lu les mises en garde dans la section « Power Supply » du TLP Pro 320C User Guide.
NOTE:
The TLP Pro 320C ships without a power supply. Either the 12 VDC power supply or the power injector must be
purchased separately.
Network and Power over Ethernet (PoE) Connector — Connect the touchpanel to the LAN using a twisted pair cable,
B
terminated with an RJ-45 connector. The connector can also be used with a PoE power injector (not provided).
An Extron IP Link Pro control processor must also be connected to the same network as the TouchLink Pro touchpanel.
