TLP Pro 320C • Setup Guide (Continued)

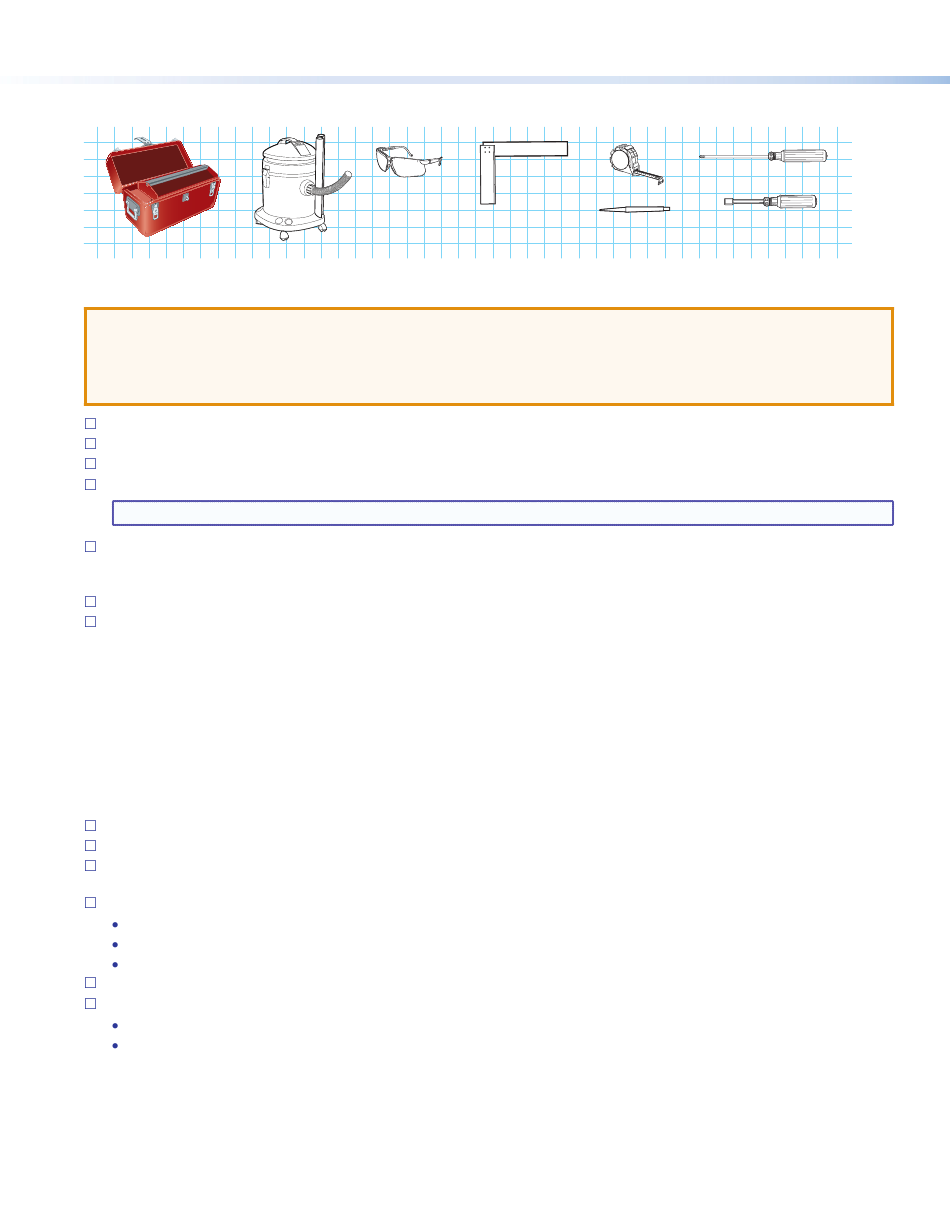

Tools Required for Installation

Mount and Cable All Devices

ATTENTION:
• Do not power on the touchpanels or control processors until you have read the Attention in the Power Supply section
of the TLP Pro 320C User Guide or the IPL Pro User Guide.
• Ne branchez pas les écrans tactiles ou les contrôleurs avant d'avoir lu la mise en garde dans la section « sources
d'alimentation » du TLP Pro 320C User Guide ou du IPL Pro User Guide.
Mount the units (see Mounting).
Install power modules in the cable cubby.
Install AAPs and run cables to the cable cubby.
Connect power and network cables to the touchpanels.
NOTE:
The TLP Pro 320C can use either a 12 VDC power supply or a PoE power injector.
Connect the power cords and power on all devices.
Set up the Touchpanels for Network Communication
Connect the PC that you will use for setup, the control processor, and the touchpanel to the same Ethernet subnetwork.
Use the Setup Menu (see
the DHCP status and, if necessary, the IP address, subnet mask, gateway, and related settings for the touchpanel.
Configure the Touchpanels
The Global Configurator Help File, and the GUI Designer Help File provide step-by-step instructions and more detailed
information. The Global Configurator Help File includes an introduction to the software and sections on how to start a project and
configure it.
Mounting
Planning
Before making any cuts, select the best location for the TLP Pro 320C.
Ensure that the edge that opens on the lid is oriented correctly.
Ensure there is enough space for all the system cables and components, including cable retractors, if they are required. The
space requirements for retractors are shown in the TLP Pro 320C User Guide, which is available at www.extron.com.
Decide on the method for cutting a hole in the table:
Hand router and template
CNC wood router
Jigsaw and paper template
Verify that you have the correct template or dimensions.
Check all relevant regulations.
Ensure that the installation complies with local, state, and national building and electrical codes.
Ensure that the installation complies with the Americans with Disabilities Act or other accessibility requirements.
2
Safety Glasses
Vacuum Cleaner
Setup Menu on page 8) or the Toolbelt feature of Global Configurator Plus and Professional to set
Square
Tape Measure
Marking Pen
Phillips Screw Driver
1/4" Hex Nut Driver
