Adjusting the Cutting Height
WARNING: Adjusting the cutting-height could bring your hands into contact with a moving blade, and
result in serious injury.
•
Shut off the machine, remove the electric-start button, remove the battery pack, and wait for all
movement to stop before adjusting the cutting height.
•
Do not put your fingers under the housing when adjusting the cutting height.
Always select a cutting height to suit the operating conditions. Prevent motor overload and blockages by
avoiding low cuts in long grass. Be prepared to make two cuts when the grass is long.

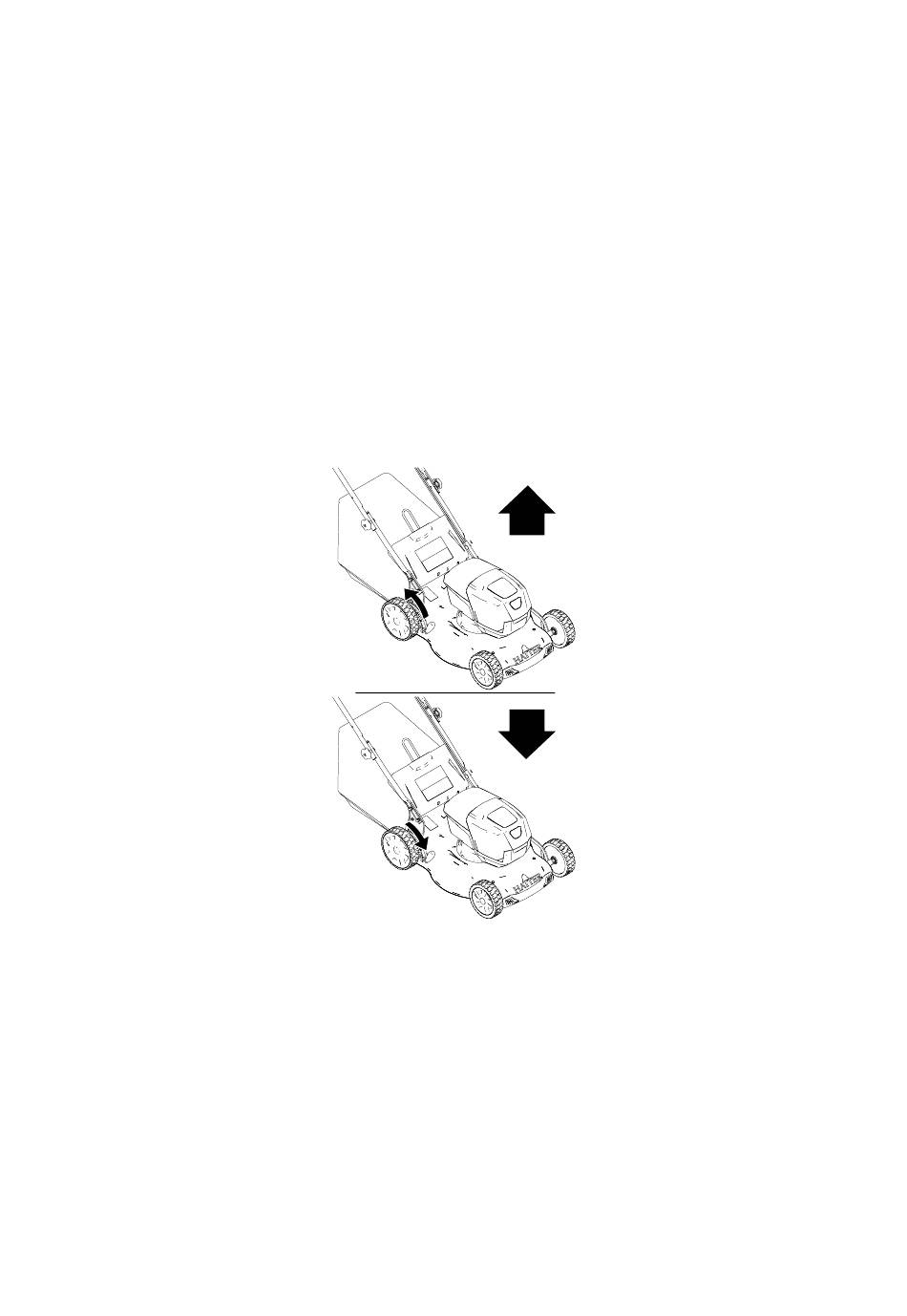

To adjust the cutting height, grip the lever, and pull it sideways to disengage it from the locking notch.
•
Pull the lever backwards to raise the cutting height
•
Push the lever forwards to lower the cutting height.
Finally release the lever at the required position and ensure it locks firmly into one of the setting notches.
Figure 12.
Figure 12
18
EN
