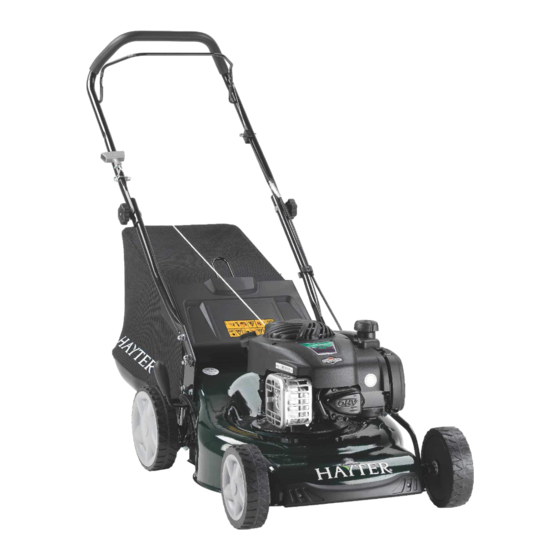

Hayter CODE610B Operator's Manual

46cm lawn mower
Hide thumbs Also See for CODE610B:
Table of Contents

Advertisement

Quick Links

Download this manual
BY APPOINTMENT TO
HER MAJESTY THE QUEEN
MANUFACTURERS OF HAYTER
HORTICULTURAL MACHINERY
TORO U.K. LIMITED, SPELLBROOK,
BISHOPS STORTFORD, HERTS
Operator's Manual
46cm Lawn Mower
Model No. CODE610B - Serial No. 323000001 and Up
Model No. CODE611B - Serial No. 323000001 and Up
Register at www.hayter.co.uk
Original Instructions (EN)
Form No. 3459-652 Rev A

Advertisement

Table of Contents
loading

Related Manuals for Hayter CODE610B

Summary of Contents for Hayter CODE610B

  • Page 1 MANUFACTURERS OF HAYTER HORTICULTURAL MACHINERY TORO U.K. LIMITED, SPELLBROOK, BISHOPS STORTFORD, HERTS Operator’s Manual 46cm Lawn Mower Model No. CODE610B - Serial No. 323000001 and Up Model No. CODE611B - Serial No. 323000001 and Up Register at www.hayter.co.uk Original Instructions (EN)
  • Page 3 Whenever you need service, genuine Hayter parts, or additional information, contact an Authorised Service Dealer or Customer Service and have the model and serial numbers of your product ready. Figure 1 identifies the location of the model and serial numbers on the product.
  • Page 4 This manual uses two other words to highlight information. Important: calls attention to special mechanical information and Note emphasises general information worthy of special attention. This product complies with all relevant European directives; for details, please see the separate product specific Declaration of Conformity (DOC) sheet.

  • Page 5: Table Of Contents

    Contents Safety - General Safety ..............7 Safety and Instructional Decals ..........8 Setup ................... 9 - 14 - Assembling the Handle ............. 9 - 10 - Installing the Recoil-Starter Rope in Guide ......11 - Filling the Engine with Oil ..........12 - Assembling Grass Bag............
  • Page 6 After Operation..............24 - 25 - After Operation Safety ........... 24 - General Safety ............. 24 - Hauling Safety ............. 24 - Cleaning under the Machine ........... 24 - 25 - Folding the Handle ............25 Maintenance ................ 26 - 32 - Recommended Maintenance Schedule(s) ......

  • Page 7: Safety

    Safety This machine has been designed in accordance with EN ISO 5395. General Safety This product is capable of amputating hands and feet and of throwing objects. Always follow all safety instructions to avoid serious personal injury or death. • Read, understand, and follow the instructions and warnings in this Operator’s Manual and on the machine and attachments before starting the engine.

  • Page 8: Safety And Instructional Decals

    Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or missing. 111-9937 Easy-wash port. 134-0084 Warning:—read the Operator’s Manual. Thrown object hazard—keep bystanders away from the machine.

  • Page 9: Setup

    Setup Important: Remove and discard the protective plastic sheet that covers the engine and any other plastic or wrapping on the machine. Assembling the Handle Parts needed for this procedure: Lower handle Short bolt Flat washer Split washer Upper handle Handle knob Curved washer Long bolt...
  • Page 10 2. Attach the upper handle to the lower handle using 2 handle knobs, 2 curved washers, and 2 bolts. Tighten the handle knobs securely by hand. Figure 4. Figure 4 Handle knob (2) Upper handle Curved washer (2) Lower handle Long bolt (2) 3.

  • Page 11: Installing The Recoil-Starter Rope In Guide

    Installing the Recoil-Starter Rope in the Guide No Parts Required Procedure Important: To start the engine safely and easily whenever you use the machine, install the recoil-starter rope in the rope guide. Hold the blade-control bar to the upper handle and pull the recoil-starter rope through the rope guide on the handle.

  • Page 12: Filling The Engine With Oil

    Filling the Engine with Oil No Parts Required Procedure Important: Your machine does not come with oil in the engine. Before starting the engine, fill the engine with oil. Engine oil capacity: 0.47 L Oil viscosity: SAE 30 or SAE 10W-30 detergent oil API service classification: SJ or higher 1.

  • Page 13: Assembling Grass Bag

    Assembling the Grass Bag Parts needed for this procedure: Grass Bag Grass-bag Frame Procedure 1. Slide the grass-bag frame into the grass bag. Figure 8. 2. Position all 6 grass-bag clips over the grass-bag frame. Figure 8. Figure 8 Grass-bag Frame Grass-bag Clip...

  • Page 14: Product Overview

    Product Overview Figure 9 Cutting-height lever Blade-control bar Grass-bag assembly Handle knob Recoil-start handle Easy wash port Self-propel-drive bar Air filter Handle Spark plug Specifications Model Weight* Length Width Cutting Width Height CODE610B 1400 1050 CODE611B...

  • Page 15: Operation

    Operation Note: Determine the left and right sides of the machine from the normal operating position. Before Operation Before Operation Safety General Safety • Always shut off the machine, wait for all moving parts to stop, and allow the machine to cool before adjusting, servicing, cleaning, or storing it.

  • Page 16: Filling The Fuel Tank

    Filling the Fuel Tank • For best results, use only clean, fresh, unleaded Petrol with an octane rating of 87 or higher ((R+M)/2 rating method). • ETHANOL: Petrol with up to 10% ethanol (gasohol) or 15% MTBE (methyl tertiary butyl ether) by volume is acceptable.

  • Page 17: Checking The Engine-Oil Level

    Checking the Engine-Oil Level Service Interval: Before each use or daily. 1. Move the machine to a level surface. 2. Remove the dipstick by rotating the cap counterclockwise and pulling it out. Figure 11. Figure 11 3. Wipe the dipstick clean with a clean cloth. 4.

  • Page 18: Adjusting The Cutting Height

    Adjusting the Cutting Height Warning: Adjusting the cutting height could bring your hands into contact with a moving blade, and result in serious injury. • Shut off the engine and wait for all movement to stop. • Do not put your fingers under the housing when adjusting the cutting height. There are 7 cutting-height settings from 25 to 70 mm.

  • Page 19: During Operation

    • Check the grass catcher components and the discharge chute frequently for any wear or deterioration and replace them with genuine Hayter parts when necessary. Slope Safety • Mow across the face of slopes; never up and down. Use extreme caution when changing direction on slopes.

  • Page 20: Starting The Engine

    Starting the Engine Important: This machine comes with a rubber boot over the end of the spark plug. Ensure that the metal loop on the end of the spark-plug wire (inside the rubber boot) is fastened securely on the metal tip on the spark plug.

  • Page 21: Using The Self-Propel Drive

    Using the Self-Propel Drive To operate the self-propel drive, squeeze the self-propel-drive bar (1) toward the handle and hold it. Figure Note: The machine has a fixed maximum speed of approximately 1.86 m/h. Figure 16 Self-propel-drive bar To disengage the self-propel drive, release the self-propel lever. Shutting off the Engine To shut off the engine, release the blade-control bar.

  • Page 22: Bagging The Grass Clippings

    Warning: A worn grass bag could allow small stones and other similar debris to be thrown toward you or bystanders, resulting in serious personal injury or death. Check the grass bag frequently. If it is damaged, install a new Hayter replacement bag. Warning: The blade is sharp; contacting the blade can result in serious personal injury.

  • Page 23: Rear-Discharging The Grass Clippings

    • For best performance, install a new blade before the cutting season begins. • Replace the blade when necessary with a Hayter replacement blade. Cutting Grass • Cut only about a third of the grass blade at a time. Do not cut below 51 mm (2 inches) unless the grass is sparse or it is autumn when grass growth begins to slow down.

  • Page 24: After Operation

    After Operation After Operation Safety General Safety • Always shut off the machine, wait for all moving parts to stop, and allow the machine to cool before adjusting, servicing, cleaning, or storing it. • Clean grass and debris from the machine to help prevent fires. Clean up oil or fuel spills. •...

  • Page 25: Folding The Handle

    7. Start the engine and run it until the clippings no longer come out from under the machine. 8. Shut off the engine. 9. Shut off the water and disconnect the garden hose from the machine. 10. Start the engine and run it for a few minutes to dry the underside of the machine to prevent it from rusting.

  • Page 26: Maintenance

    Run the engine dry or remove the fuel with a hand pump; never siphon the fuel. • To ensure optimum performance of the machine, use only genuine Hayter replacement parts and accessories. Replacement parts and accessories made by other manufacturers could be dangerous, and such use could void the product warranty.

  • Page 27: Replacing The Spark Plug

    3. After performing the maintenance procedure(s), connect the spark-plug wire to the spark plug. Important: Before tipping the machine to change the oil or replace the blade, allow the fuel tank to run dry through normal usage. If you must tip the machine prior to running out of fuel, use a hand fuel pump to remove the fuel.

  • Page 28: Servicing The Air Filter

    Servicing the Air Filter Service Interval: Every 25 hours 1. 1. Unclip the top of the air-filter cover. Figure 23. Figure 23 Centre electrode Air gap (not to scale) Side electrode 2. Remove the air-filter cover. Figure 23. 3. Remove the air-filter element. 4.

  • Page 29: Changing The Engine Oil

    Changing the Engine Oil Changing the engine oil is not required, but if you desire to change the oil, use the following procedure. Engine oil capacity: 0.47 L Oil viscosity: SAE 30 or SAE 10W-30 detergent oil API service classification: SJ or higher Note: Run the engine a few minutes before changing the oil to warm it.

  • Page 30: Replacing The Blade

    5. After draining the used oil, return the machine to the operating position. 6. Carefully pour about 3/4 of the engine capacity of oil into the oil-fill tube. 7. Wait about 3 minutes for the oil to settle in the engine. 8.

  • Page 31: Blade Sharpening

    5. Install the new blade and all mounting hardware. Figure 27. Important: Position the curved ends of the blade to point toward the mower housing. Figure 27 6. Use a torque wrench to tighten the blade bolt to 45 N∙m. Important: A bolt torqued to 45 N∙m is very tight.

  • Page 32: Lubricating The Wheels

    Ensure that the blade is balanced. Use a screwdriver with a round shaft to support the blade through its centre hole. Hold the blade horizontal and then release. A balanced blade will remain horizontal. Figure 29. Figure 29 If the blade is not balanced the heavy end will rotate downwards. Sharpen the heavy end until the blade is correctly balanced.

  • Page 33: Storage

    Storage Store the machine in a cool, clean, dry place. Storage Safety Always shut off the machine, wait for all moving parts to stop, and allow the machine to cool before adjusting, servicing, cleaning, or storing it. Preparing the Machine for Storage 1.

  • Page 34: Warranty

    Hayter Authorised Service Dealer for assistance when making these adjustments. Making a Claim To make a warranty claim, return the unit to a Hayter Authorised Service Dealer, along with proof of purchase stating the machine serial number and date of purchase and the service receipt(s) or stamped service card.

  • Page 35: Privacy Notice

    EEA/UK Privacy Notice Our Use of Your Personal Information Toro U.K. Limited , and its parent, The Toro Company, respect your privacy. When you purchase our products, we may collect certain personal information about you, either directly from you or through your local retail outlet.
