One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluating TxVGAs for Use with RF DACs and Transceivers

FEATURES

Full featured evaluation board for the or
SPI control via
SDP-S
board
5.0 V single-supply operation

EVALUATION KIT CONTENTS

ADL6316-EVALZ evaluation board

ADDITIONAL HARDWARE REQUIRED

Analog signal generator
Analog signal analyzer
Power supplies (6 V, 5 A)
PC with Windows® XP, Windows 7, or Windows 10 operating
system
USB 2.0 port, recommended (USB 1.1-compatible)
EVAL-SDP-CS1Z
(SDP-S) controller board

ADDITIONAL SOFTWARE REQUIRED

Analysis | Control | Evaluation
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
ADL6316
(ACE) software

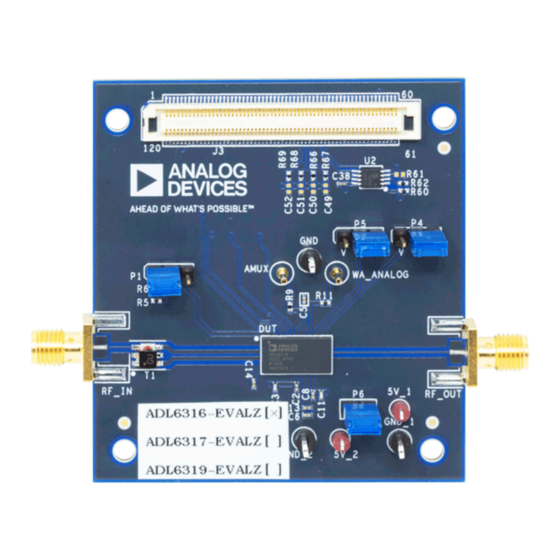

EVALUATION BOARD PHOTOGRAPH

Figure 1. ADL6316-EVALZ
ADL6316-EVALZ

GENERAL DESCRIPTION

The
ADL6316
transmit variable gain amplifier (TxVGA) provides
an interface for radio frequency (RF) digital-to-analog converters
(DACs), transceivers, and systems on a chip (SoC) to power
amplifiers (PAs). Integrated balun and hybrid couplers allow
high performance RF capability over a frequency range of
0.5 GHz to 1.0 GHz.
To optimize performance vs. power level, the
a voltage variable attenuator (VVA), high linearity amplifiers, and
a digital step attenuator (DSA). The devices integrated into the
ADL6316
are programmable via a 4-wire serial port interface (SPI).
This user guide describes the evaluation board and software for
the ADL6316. For full details, see the
which must be consulted when using the evaluation board. The
ADL6316-EVALZ evaluation board is fabricated with FR-370HR,
Rogers 4350B in four layers.
Rev. 0 | Page 1 of 8
User Guide
UG-1663
ADL6316
includes
ADL6316
data sheet,

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADL6316-EVALZ and is the answer not in the manual?

Questions and answers

Related Manuals for Analog Devices ADL6316-EVALZ

Summary of Contents for Analog Devices ADL6316-EVALZ

  • Page 1: Features

    USB 2.0 port, recommended (USB 1.1-compatible) which must be consulted when using the evaluation board. The EVAL-SDP-CS1Z (SDP-S) controller board ADL6316-EVALZ evaluation board is fabricated with FR-370HR, Rogers 4350B in four layers. ADDITIONAL SOFTWARE REQUIRED Analysis | Control | Evaluation...

  • Page 2: Table Of Contents

    UG-1663 ADL6316-EVALZ User Guide TABLE OF CONTENTS Features ....................1 RF Input ..................3 Evaluation Kit Contents ..............1 RF Outputs ..................3 Additional Hardware Required ............1 Signal Path Modes Selection ............3 Additional Software Required ............1 Evaluation Board Software ...............4 General Description .................

  • Page 3: Evaluation Board Hardware

    POWER SUPPLY ADL6316 has two signal path modes. This feature allows The ADL6316-EVALZ evaluation board requires a single, 5.0 V two predefined modes of operation to be controlled by the logic power supply. level on TXEN, a real-time external pin (Pin 37), without SPI RF INPUT latency.

  • Page 4: Evaluation Board Software

    ADL631x.1.2019.34200 folders are located inside the Figure 5. Chip View C:\ProgramData\Analog Devices\ACE\Plugins folder. ACE SOFTWARE SUITE Power up the ADL6316-EVALZ evaluation board and connect the USB cable to the PC and to the SDP-S board mounted on the ADL6316-EVALZ evaluation board.

  • Page 5: Configuration And Programming Sequence

    ADL6316-EVALZ User Guide UG-1663 CONFIGURATION AND PROGRAMMING After changing the block in the software as directed in Step 3, click Apply Changes (Label K, see Figure 7) to SEQUENCE update the ADL6316. To configure and program the evaluation board, take the...
  • Page 6 UG-1663 ADL6316-EVALZ User Guide Figure 7. ADL6316-EVALZ Chip View After Chip Initialization Figure 8. ADL6316-EVALZ Memory Map View Rev. 0 | Page 6 of 8...

  • Page 7: Evaluation Board Schematic

    ADL6316-EVALZ User Guide UG-1663 EVALUATION BOARD SCHEMATIC Figure 9. ADL6316-EVALZ Evaluation Board Schematic Rev. 0 | Page 7 of 8...
  • Page 8 By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
