8-/10-Lead PulSAR User Guide
UG-340
WAVEFORM CAPTURE

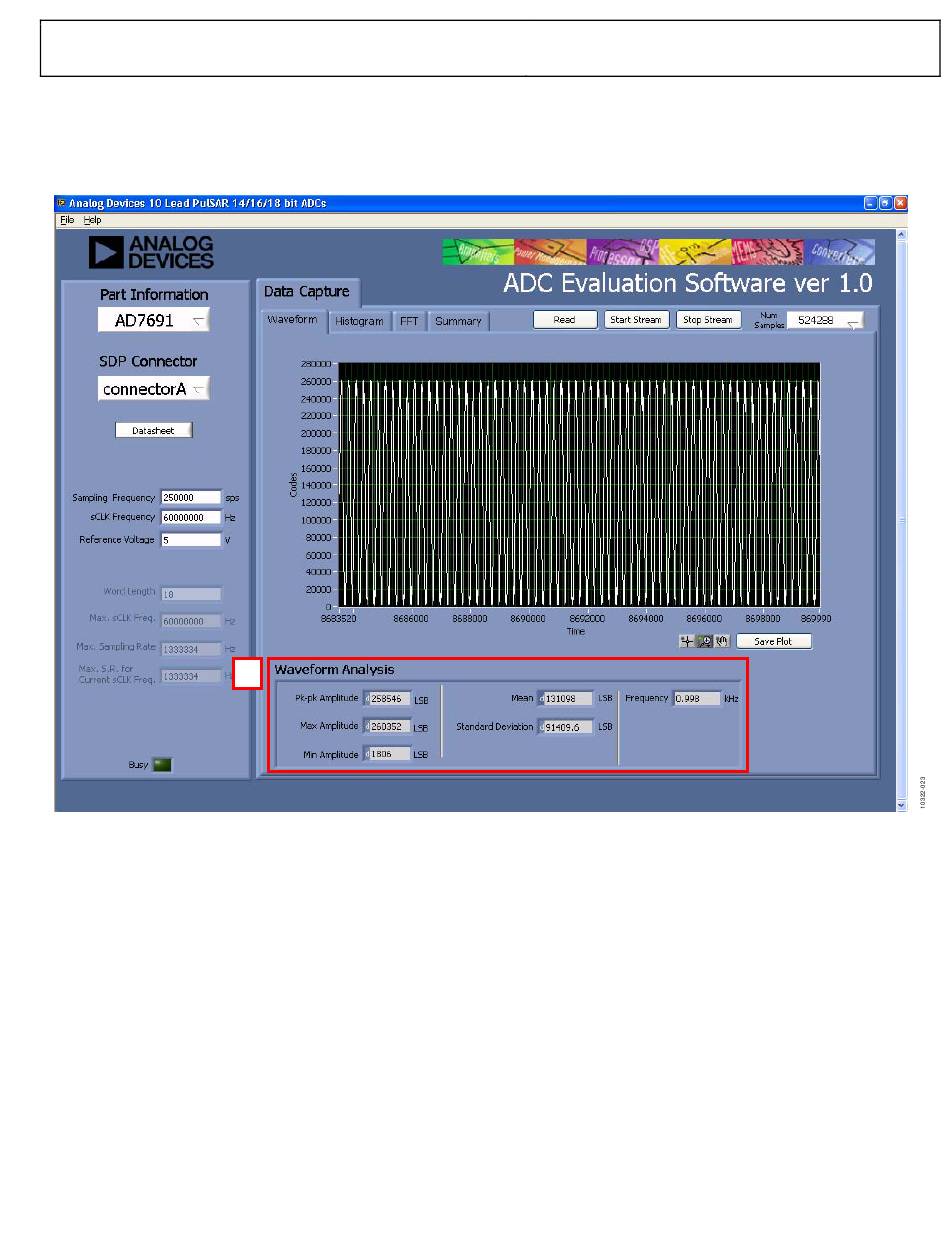

Figure 22 illustrates the waveform capture. The input signal is a 1 kHz sine wave. The waveform analysis reports the amplitudes recorded
from the captured signal in addition to the frequency of the signal tone.
1
Figure 22. Waveform Tab
Rev. C | Page 11 of 31
