UG-745

WAVEFORM CAPTURE

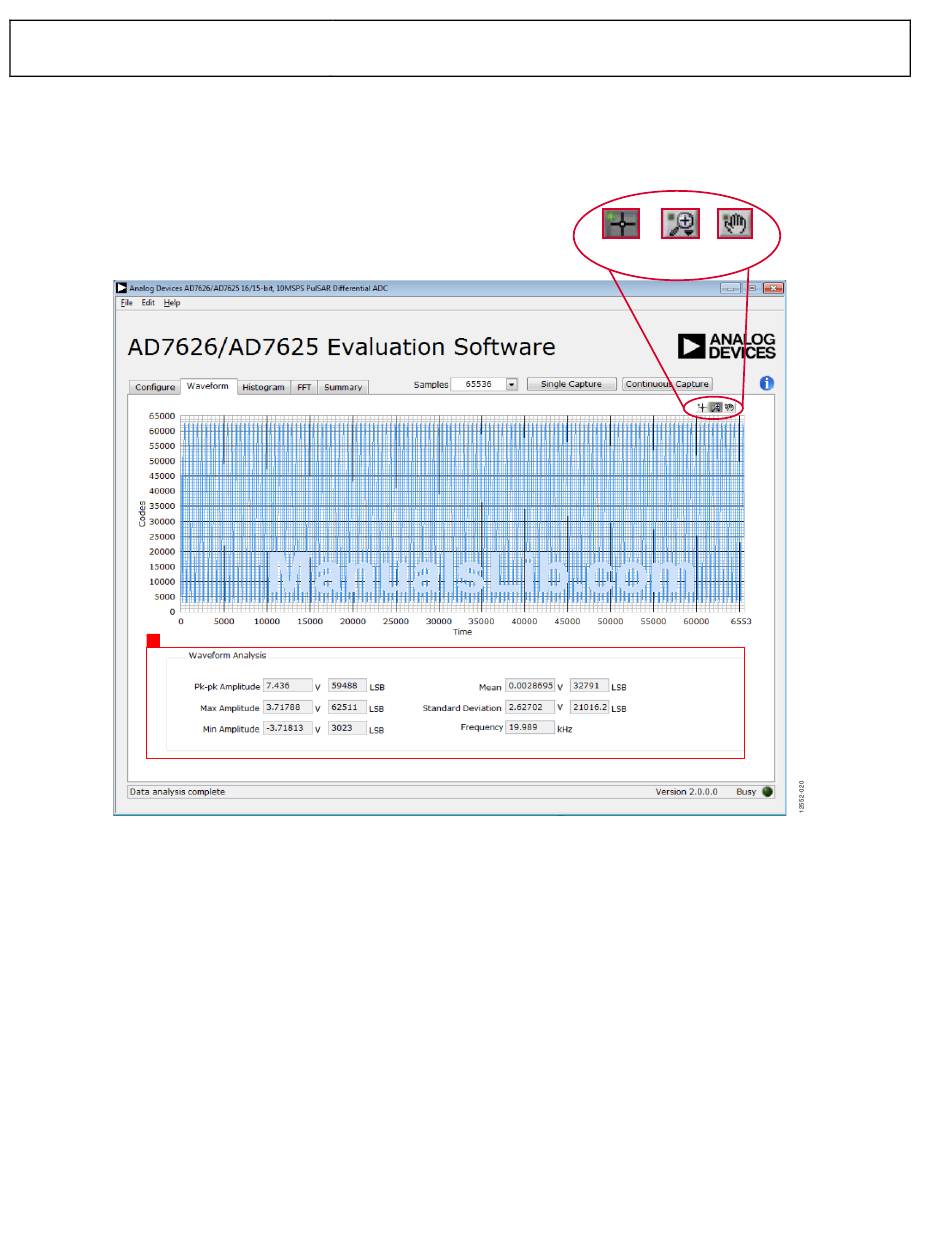

Figure 20 shows the Waveform tab. A 20 kHz sine-wave input

signal was used along with an on-board 4.096 V external

reference.

EVAL-AD7625FMCZ/EVAL-AD7626FMCZ User Guide

The Waveform Analysis boxes, Label 1 in Figure 20, show the

amplitudes recorded from the captured signal in addition to the

frequency of the signal tone.

Figure 20. Waveform Capture Tab

Rev. A | Page 12 of 28

CONTROL

CURSOR

ZOOMING

PANNING
