Easy to Use AD4000 Series 16-/18-/20-Bit Precision SAR ADCs User Guide
UG-1042
WAVEFORM CAPTURE
Figure 21 illustrates the waveform capture. The input signal is a
1 kHz sine wave. The waveform analysis reports the amplitudes
recorded from the captured signal in addition to the frequency of
the signal tone.

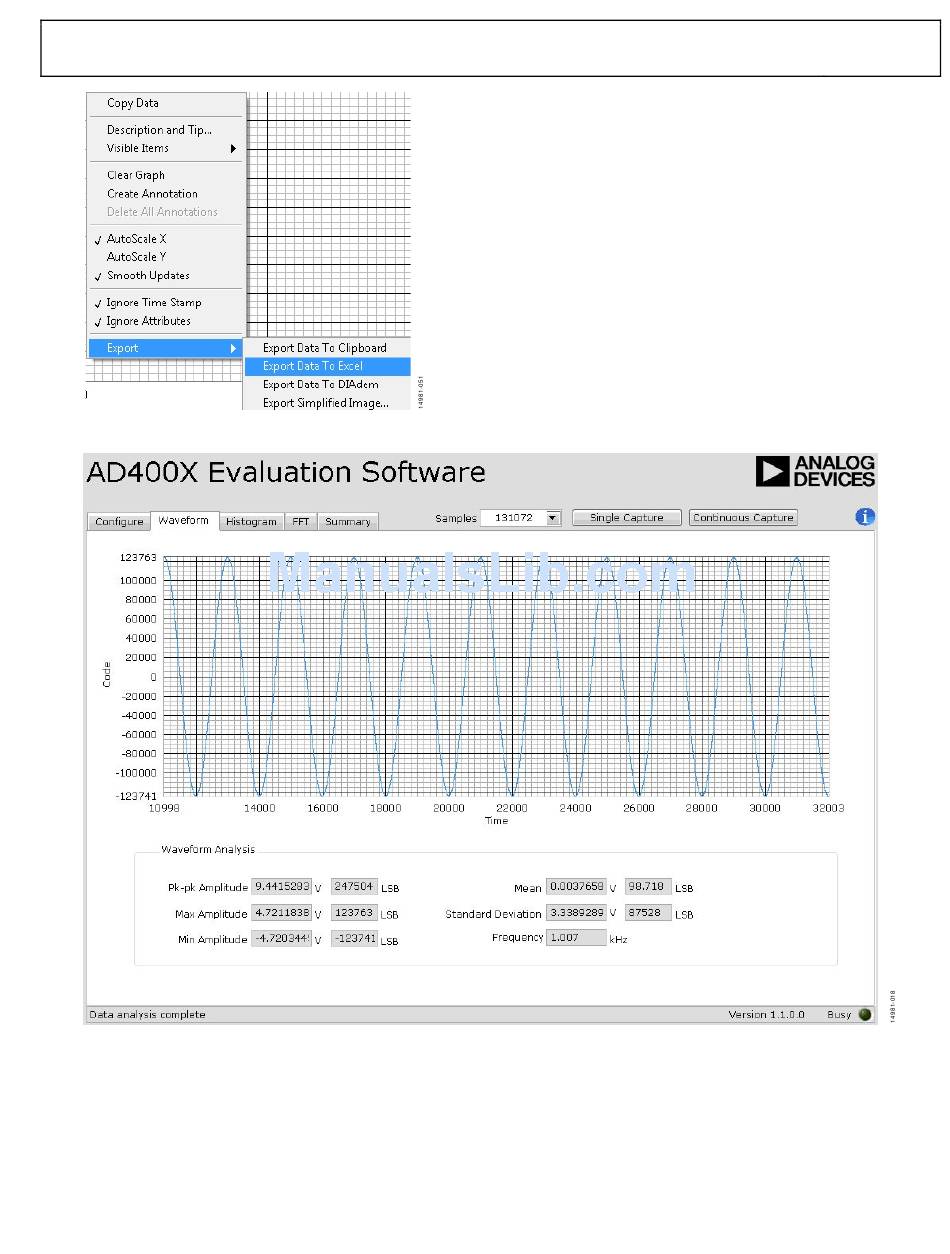

Figure 20. Export Raw Data or Image
Figure 21. Waveform Tab
Rev. E | Page 11 of 25
