EVAL-AD7492SDZ User Guide
4. Sample: to perform a single capture.
5. Continuous: to perform a continuous capture from the
ADC. Press a second time to stop sampling.
6. Select the number of samples to analyze.
7. There are four tabs available that display the data in different
formats. These are listed here and described in more detail in
the Data Capture/Waveform, AC Testing—Data
Capture/Histogram, DC Testing—Data
Capture/Histogram, AC Testing—Data Capture/FFT, and
Data Capture/Summary sections.
a. Waveform
b. Histogram
c. FFT
d. Summary
To exit the software, go to File/Exit.
1

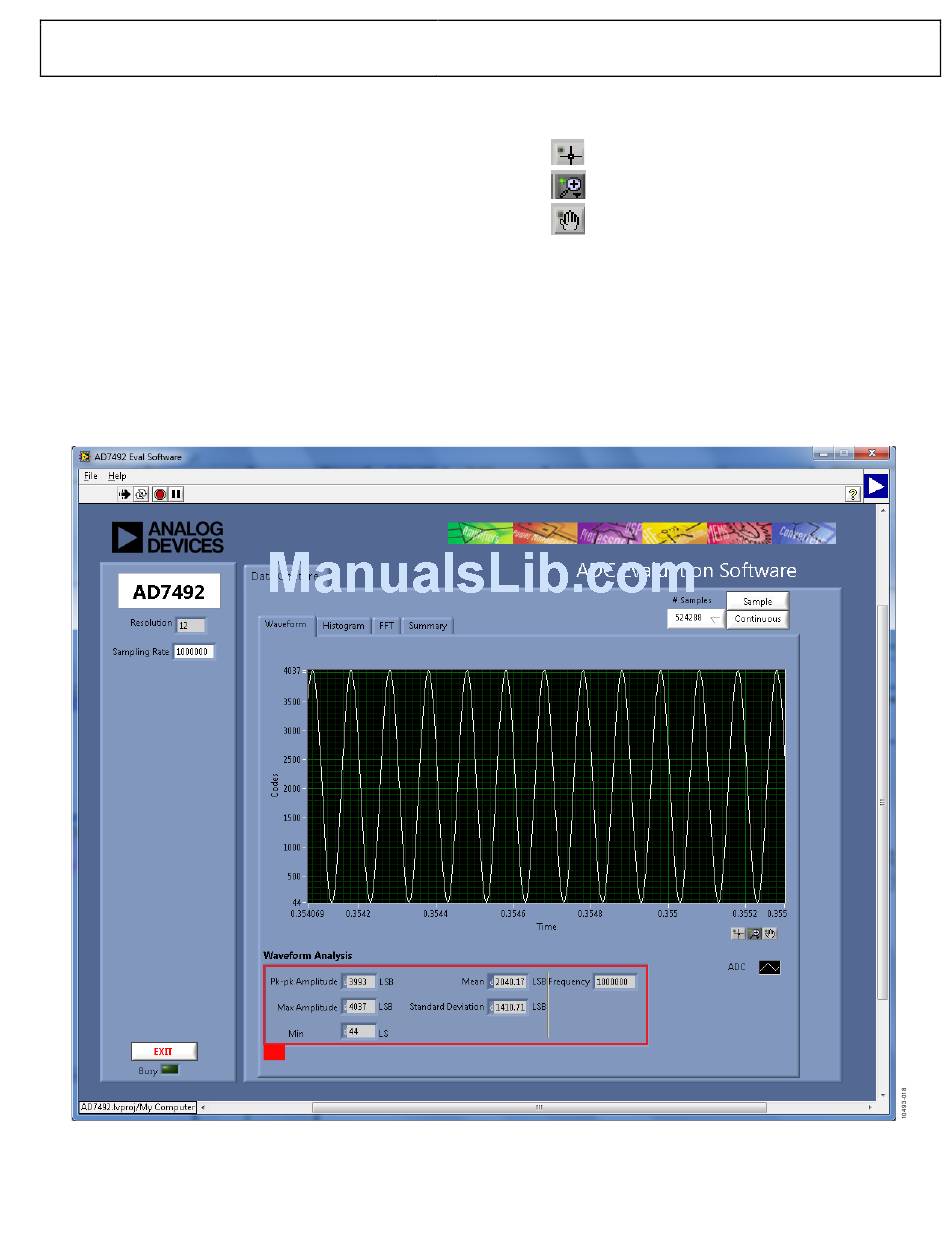

Figure 17. Data Capture/Waveform Tab
Rev. 0 | Page 11 of 24
Within any of the chart panels, the following tools allow user
control of the different chart displays:
•
is used for controlling the cursor, if present.
•
is used for zooming in and out.
•
is used for panning.
To save plots, click on File > Save plot.

DATA CAPTURE/WAVEFORM TAB

Figure 17 shows the Data Capture/Waveform tab. The input
signal here is a 1 kHz sine wave.
The waveform analysis reports back the amplitudes recorded
from the captured signal in addition to the frequency of the
signal tone.
UG-371
