UG-1533

EVAL-ADAQ4003FMCZ

Evaluation Board User Guide

WAVEFORM CAPTURE

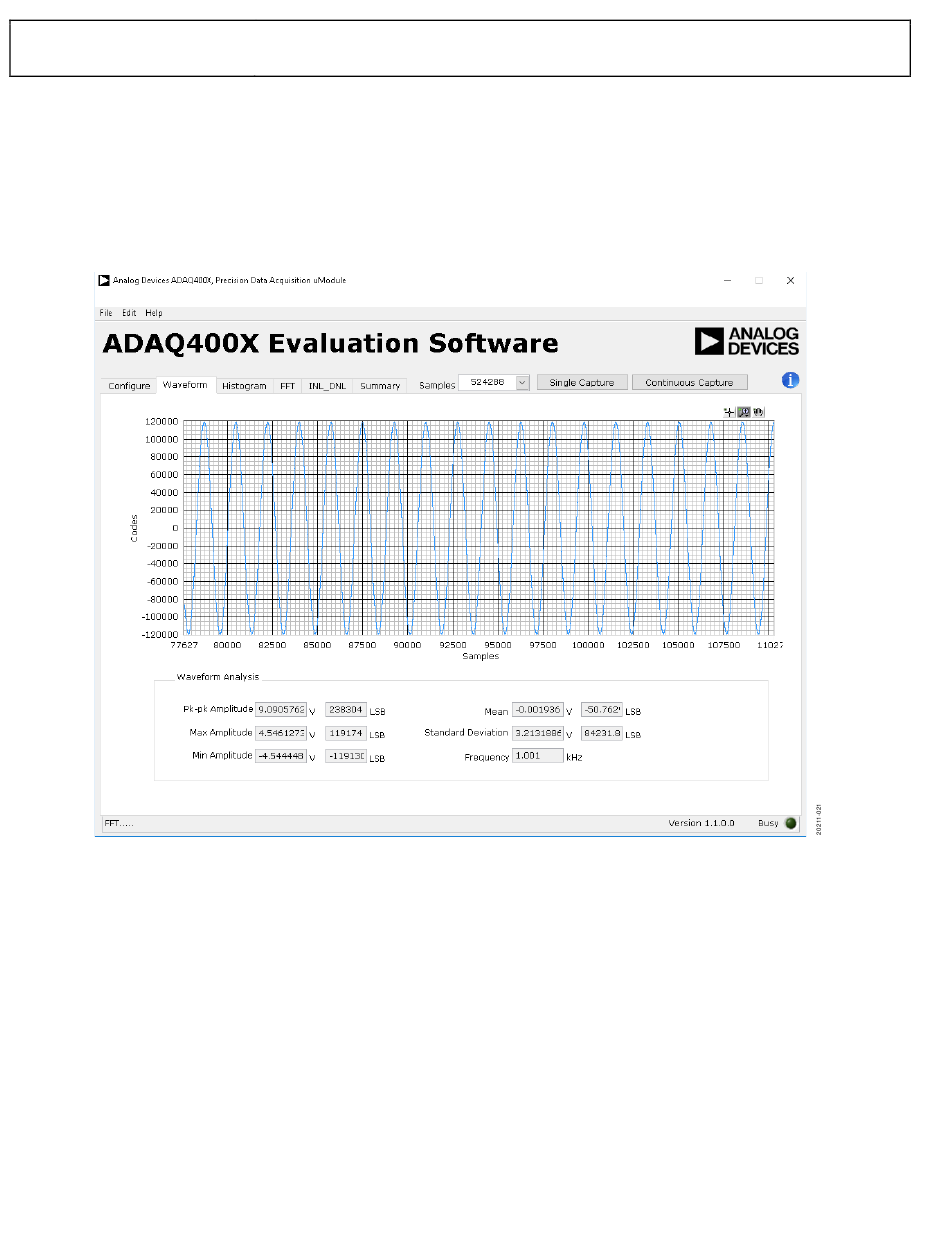

Figure 28 shows the waveform capture. The input signal is a

1 kHz sine wave. The waveform analysis reports the amplitudes

recorded from the captured signal in addition to the frequency of

the signal tone.

Figure 28. Waveform Tab

Rev. 0 | Page 14 of 31
