WAVEFORM CAPTURE

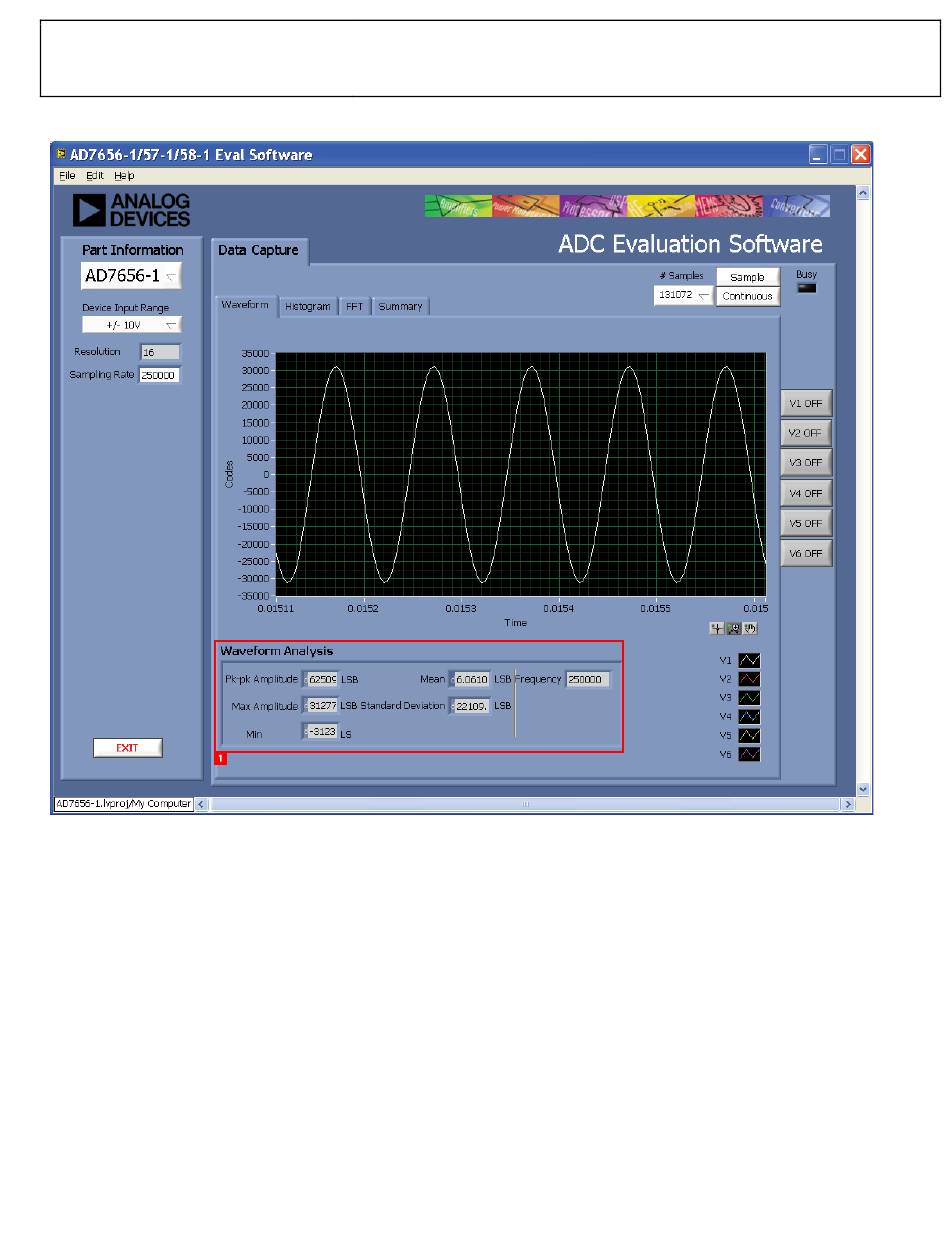

Figure 16 illustrates the waveform capture tab. The input signal
here is a 10 kHz sine-wave.
Figure 16. Waveform Capture Tab
The waveform analysis reports back the amplitudes recorded
from the captured signal in addition to the frequency of the
signal tone.
