DDI-10E INSTALLATION AND OPERATION MANUAL
In addition, during initialization the SYSTEM 3505 will print an error message if it
discovers duplicate zones.
When all zone data is entered, press CLEAR to return to the Set Up Mode screen. At
this time the English Equivalents should be set. Press FUNC to select Cust/Config
screen. At the Cust/Config screen, enter 2 to select the Zone/English Equivalent screen.

2.4 SET ENGLISH EQUIVALENTS

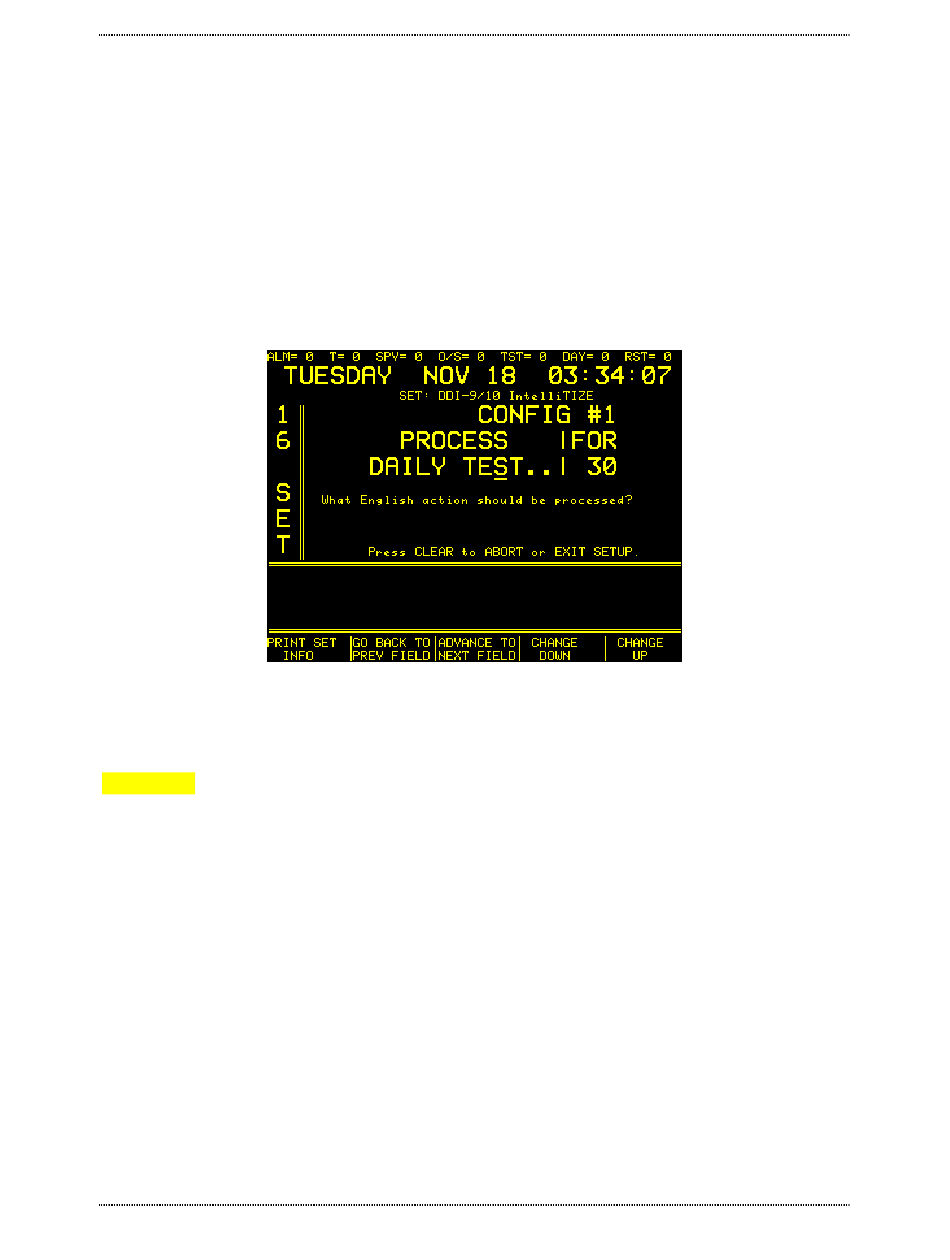

At the ZONE/ENGLISH EQUIV. Screen, Enter 2 (ENGLISH EQUIV.) and the display will
read:
Pressing the PRINT button will print the Alarm Code table and the English Equivalent
(Process : For) table.
WARNING! Never duplicate codes within a Configuration. The SYSTEM 3505 will only
recognize the first occurrence of the code. It is strongly recommended that you print the
Configuration Table and thoroughly check for any code repetitions.
If a mistake is made while entering data, use the - key to back up and reenter the data.
To make the field blank, press the shift button and then the F button (No. 6 on keypad)
and then repeat the procedure to enter the next 'F'. Typing 'FF' returns the field to a
blank line. The shift button must be pressed each time, it does not lock into place.
700280-0001 Rev. B 5/11 Digitize, Inc.
2-5
