DDI-10E INSTALLATION AND OPERATION MANUAL
USB Port: Not Used
Telephone Inputs
Battery Connection:
Not Used

4.2 LED INDICATORS

4.2.1 Power (White LED)

A steady illumination (ON) indicates 6-12 VDC power applied. Since the DDI-10E is
powered from the 12VDC output of the SYSTEM 3505 via the 11VDC MSP power input,
the DDI-10E depends on the SYSTEM 3505 to report an AC failure.

4.2.2 Line 1/Line 2 (Green/Red LED)

Green illumination indicates the connected phone line is OK (also checks for dial tone).
A flashing Green illumination indicates DDI-10E is answering the phone.
A RED LED indicates phone line problems. Failure of both phone lines will cause LED
indicators to flash in unison.
Line 1 and Line two LED's flashing alternately indicates SYSTEM 3505 commanded
DDI-10E not to answer the phone. This feature is used when redundant SYSTEM 3505
are in service (i.e. one DDI-10E is on line, while the backup DDI-10E is off Line).
700280-0001 Rev. A 11/09
Main Power:
From System 3505,
12 vdc @ 500 mA max.
Rest Button

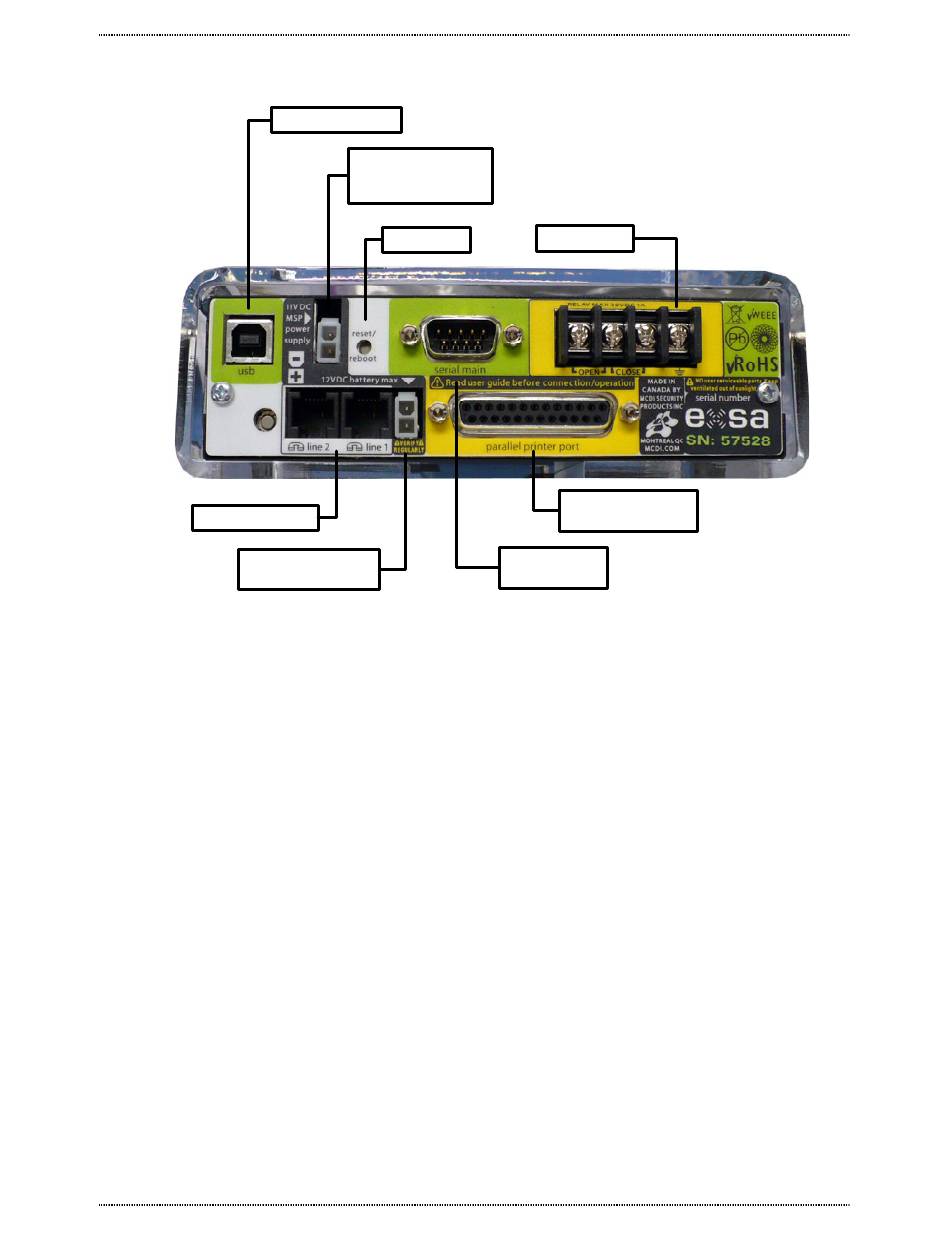

Figure 4-2, DDI-10 Rear View
Digitize, Inc.
Specifications Subject to Change Without Notice
Ground Strap
Parallel Printer Port:
Not Used
Serial Port:
To System 3505
4-3
