DDI-10E INSTALLATION AND OPERATION MANUAL

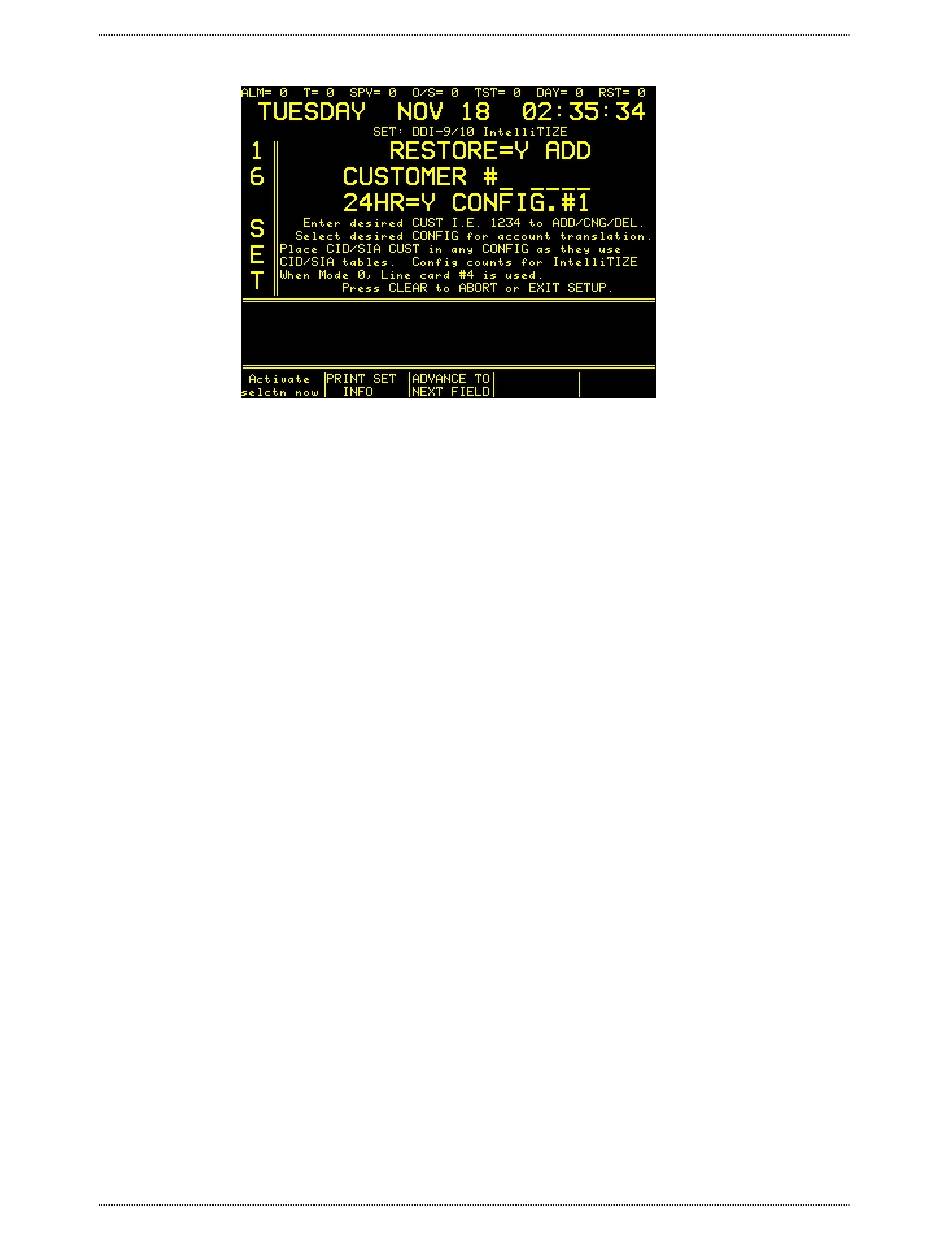

Select ADD/24HR/CONFIG/RESTORE, Enter desired CUSTOMER Number (i.e., 1234).
DO NOT INCLUDE ZONE #. Press SET to ADD or DELETE selection. Press PRINT for
CUSTOMER list.
After the operator enters the Customer number and presses the SET button the printer
will print the following message:
Press the FUNC button to move to the next field (24 HR= ). The revolving message will
change to:
XX.X/24 HR= Dialer tests in every XX.X or 24 hr. Use ↑↓ keys to change. Use FUNC to
move to next field.
(Where XX.X represents a user defined global value. For instance, if XX.X = 22.5 hrs
and there are 100 dialers, when XX.X is changed, the value will change at once for
every dialer.)
Press FUNC to move to the next field . Y Indicates dialer tests in. N = No daily test. Use
FUNC to move to next field.
If the user selects 24 HR=Y (Yes) and the dialer fails to report, in an error message will
be displayed on the screen and printed by the thermal printer.
The following message will appear on the screen:
(Where YYY= Total number of dialers that have failed to report and ZZZZZZ = Last
dialer customer that failed to report).
700280-0001 Rev. B 5/11
ADD CUSTOMER # XXXX
24 HR TST= Y RST = Y CONF. # X
YYY DIALER(S) NO
TST, LAST=ZZZZZZ
CHK REPORT
Digitize, Inc.
Specifications Subject to Change Without Notice
2-9
