DDI-10E INSTALLATION AND OPERATION MANUAL

2.3 TRANSLATE ALARM CODES TO ZONES

To change the default settings on Configuration 1 or 2 or to set up new Configuration

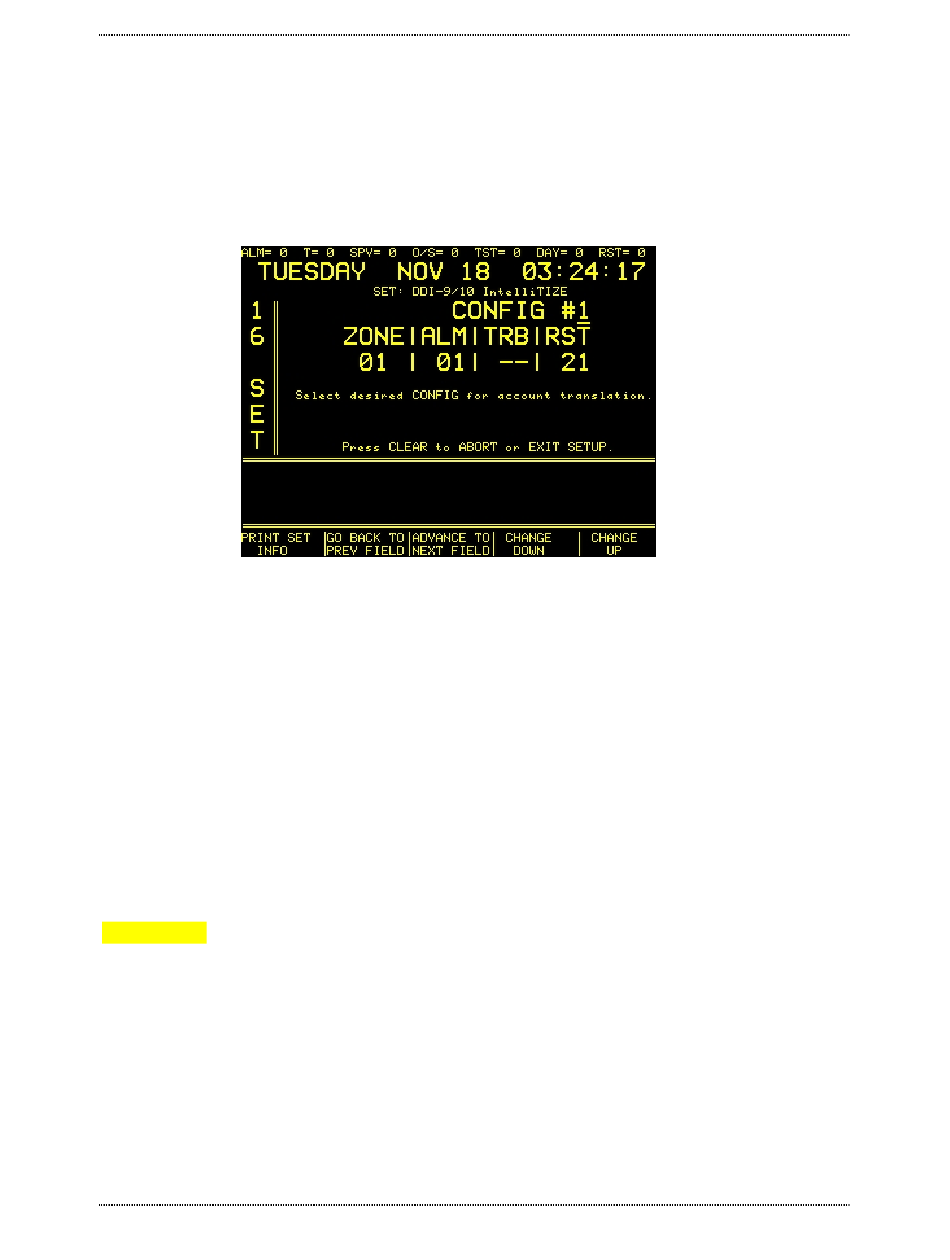

Tables, enter 1 (ZONE) and the display will read:
The cursor is on the first field (CONFIG # ).
After entering the CONFIG number, use the FUNC button to move to the next field
(ZONE).
NOTE: Zone number selection is arbitrary. Zone numbers do not always correspond to
actual zones. With some dialers Alarm and Trouble conditions must each have a
separate Restoral (Secure) code. As a result, the Trouble code is usually assigned to a
phantom zone number. The User Text information will spell out the actual zone in Alarm
or Trouble. In Configuration Table 7.2.2(a) Zones 1 - 8 have Alarm codes assigned to
them. Zones 11 - 18 have Trouble codes assigned. Zones 11 - 18 are phantom zones.
The Trouble codes assigned to Zones 11 - 18 actually pertain to Zones 1 - 8.
Moving to the next fields (ALM, TRB or SEC) will change the revolving message to read:
WARNING ! Never duplicate codes within a Configuration. The SYSTEM 3505 will only
recognize the first occurrence of the code. It is strongly recommended that you print the
Configuration Table and thoroughly check for any code repetitions.
Please note: As soon as you exit the Dialer menu, the SYSTEM 3505 checks for
duplicate codes. An error message such as the following prints:
2-4
Duplicate Code(s) ??
You must correct for
Proper Operation of
DDI Config. Tables
CNFIG #1 DUP CODE 01
