DDI-10E INSTALLATION AND OPERATION MANUAL
The factory default password is 2222. Password can be changed via the keyboard.
Refer to the Password Menu in the SYSTEM 3505 Installation and Operation Manual for
more detail. If the password for this level has already been changed, enter the new
password.
Once the password has been entered at this level the operator can move between
screens without reentering the password. Enter password and then press SET and the
Main Menu screen will appear.

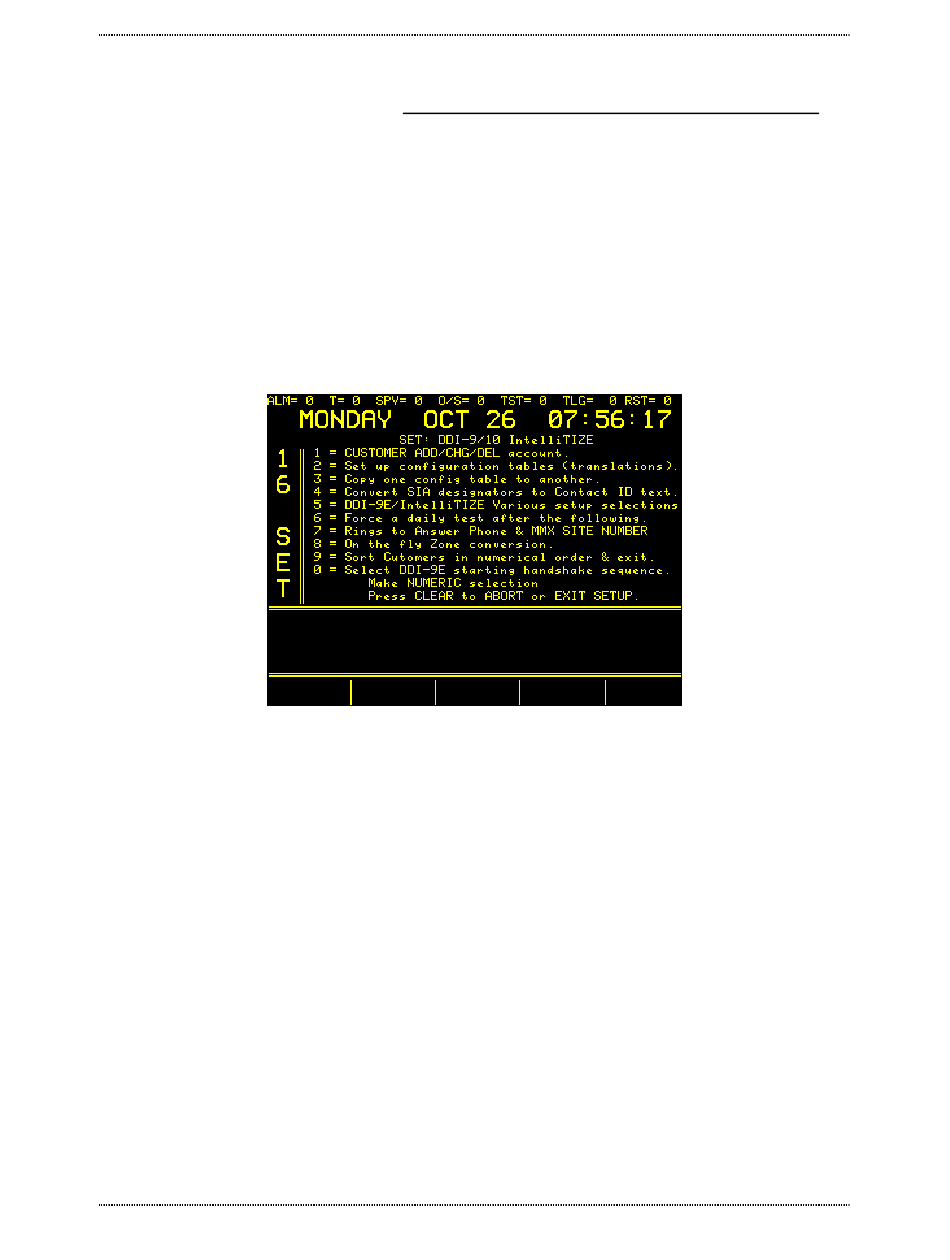

2.1 MAIN MENU

After the password has been entered and the SET button has been pressed, the menu
screen will appear and the display will read:
(Use numeric keys to make menu selections; menu options 1-0 will be described in
detail shortly.)
Selecting and setting up Configuration Tables must be done prior to setting up customer
numbers (dialer account numbers). See Section Configuration Tables. Configuration
tables spell out the alarm, trouble and secure codes applicable to each zone. The
SYSTEM 3505 will accept up to eight different configurations. Each configuration will
accept codes for one - 99 zones. After your Configuration tables are set up, specific
customer numbers may be entered for each Configuration.
2-2
1=CUSTOMER ADD/CHG/DEL account
2=Set up configuration tables (translations)
3=Copy one config table to another
4=Convert SIA designators to Contact ID text
5=DDI-9E/IntelliTIZE Various setup selections
6=Force a daily test after the following
7=Rings to Answer Phone & MMX SITE NUMBER
8=On the fly Zone Conversion
9=Sort Customers in numeric order & exit
0=Select DDI-9E starting handshake sequence
Digitize, Inc.
Specifications Subject to Change Without Notice
700280-0001 Rev. B 5/11
