ZYNQ Ultrascale + FPGA Core Board ACU3EG User Manual

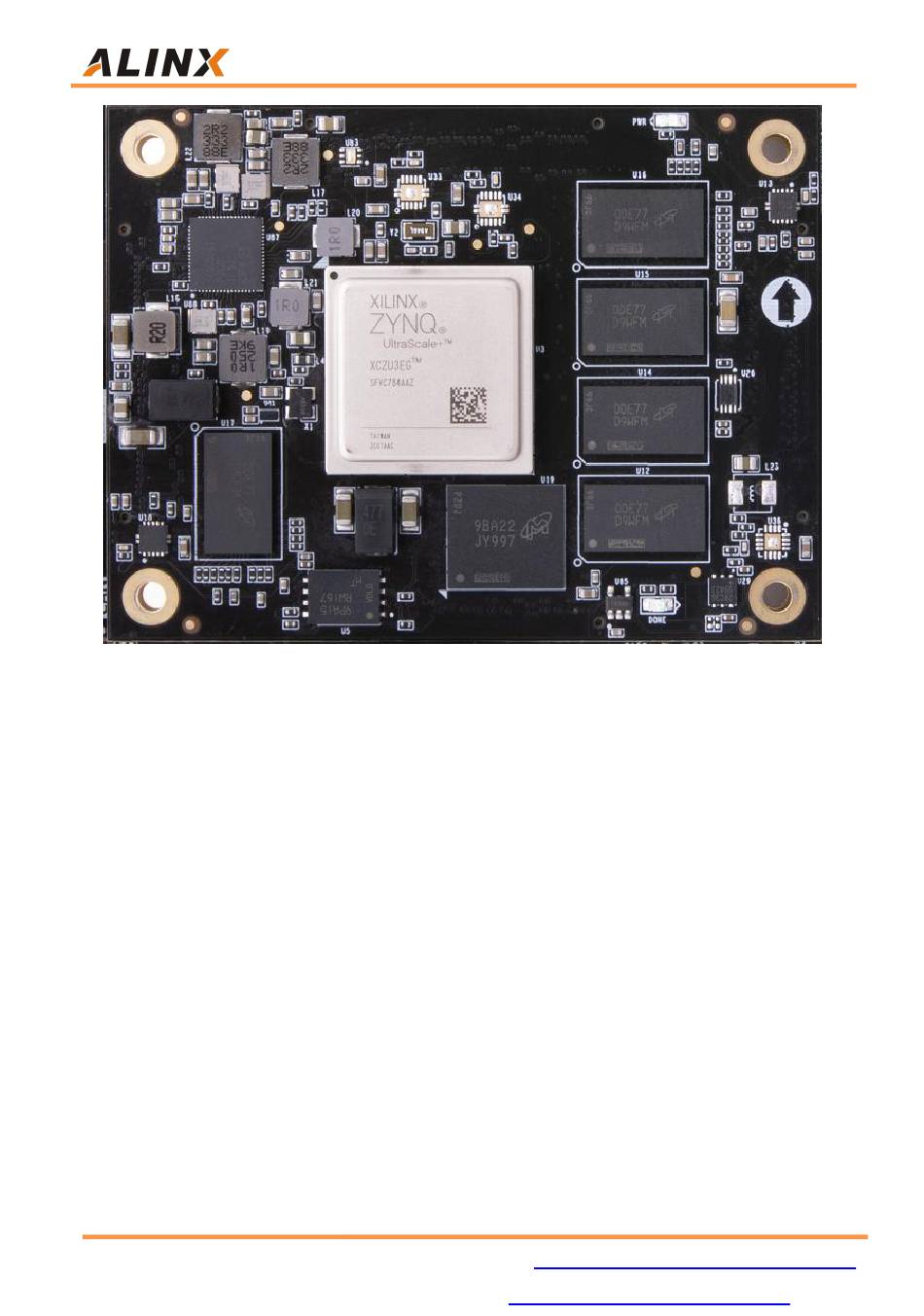

Figure 1-1: ACU3EG Core Board (Front View)

Part 2: ZYNQ Chip

The FPGA core board ACU3Eg uses Xilinx's Zynq UltraScale+ MPSoCs
EG series chip, module XCZU3EG-1SFVC784I. The PS system of the ZU3EG
chip integrates 4 ARM Cortex™-A53 processors with a speed of up to 1.2Ghz
and supports Level 2 Cache; it also contains 2 Cortex-R5 processors with a
speed of up to 500Mhz
The ZU3EG chip supports 32-bit or 64-bit DDR4, LPDDR4, DDR3, DDR3L,
LPDDR3 memory chips, with rich high-speed interfaces on the PS side such as
PCIE Gen2, USB3.0, SATA 3.1, DisplayPort; it also supports USB2.0 , Gigabit
Ethernet, SD/SDIO, I2C, CAN, UART, GPIO and other interfaces. The PL end
contains a wealth of programmable logic units, DSP and internal RAM. .
Figure 2-1 detailed the Overall Block Diagram of the ZU3EG Chip.
