Configuring an I/O Station for PROFINET Communication
4.1.7
To configure I/O station, add a GE-IP PROFINET master module at the desired slot in the
RX3i PME project. Ensure that you have the latest GSDML file imported. Right click on
master module and choose "Add IO Device". Select "STXPNS" for PROFINET Network
adapter and Select "OK". For latest GSDML file, please visit GE-IP support site.

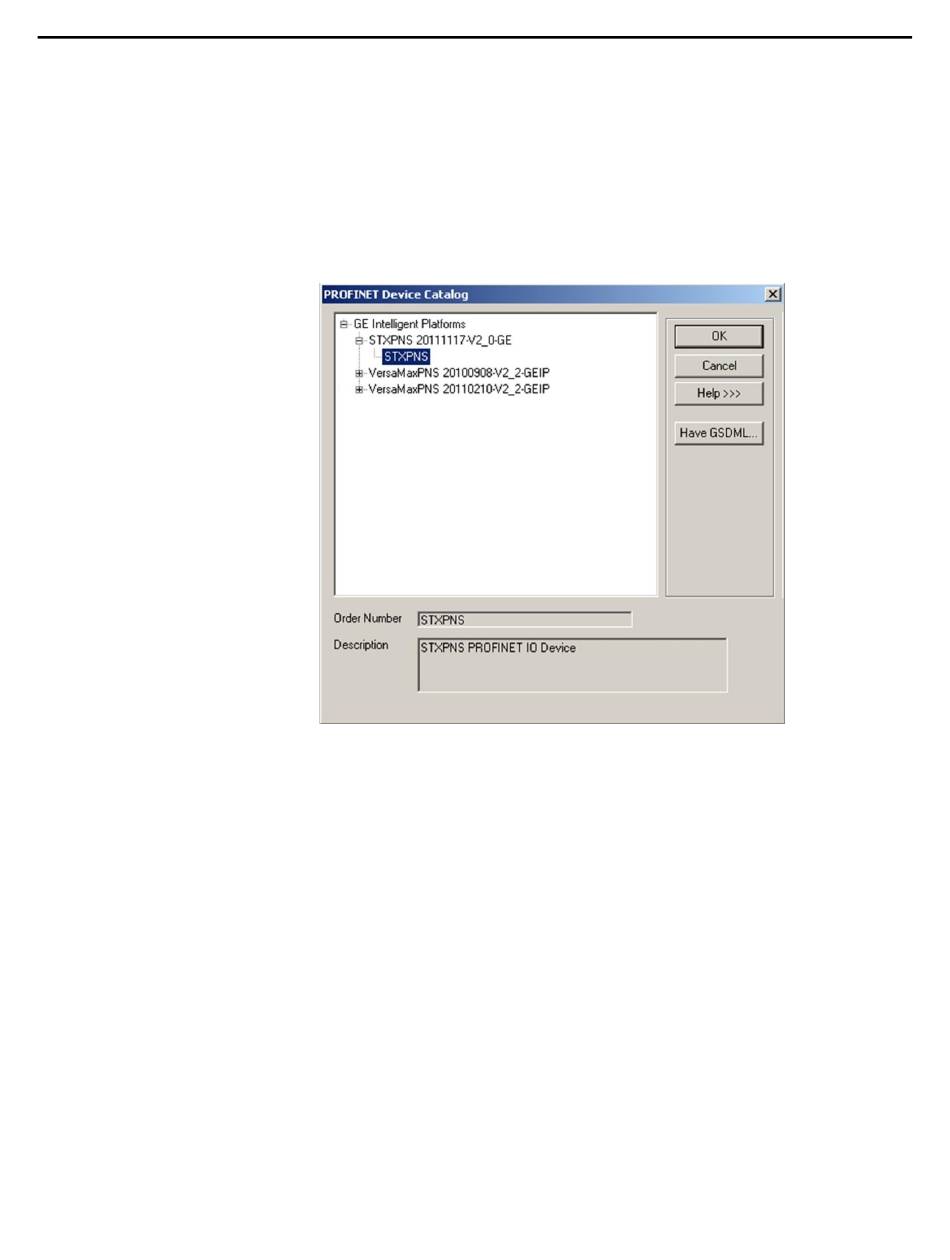

Figure 42: PROFINET Device Catalog
GFK-2746B
PACSystems* RSTi PROFIBUS and PROFINET Network Adapter–August 2013
Chapter 4. PROFINET Network Adapter
77
