STXPNS001 Dimension
4.1.4

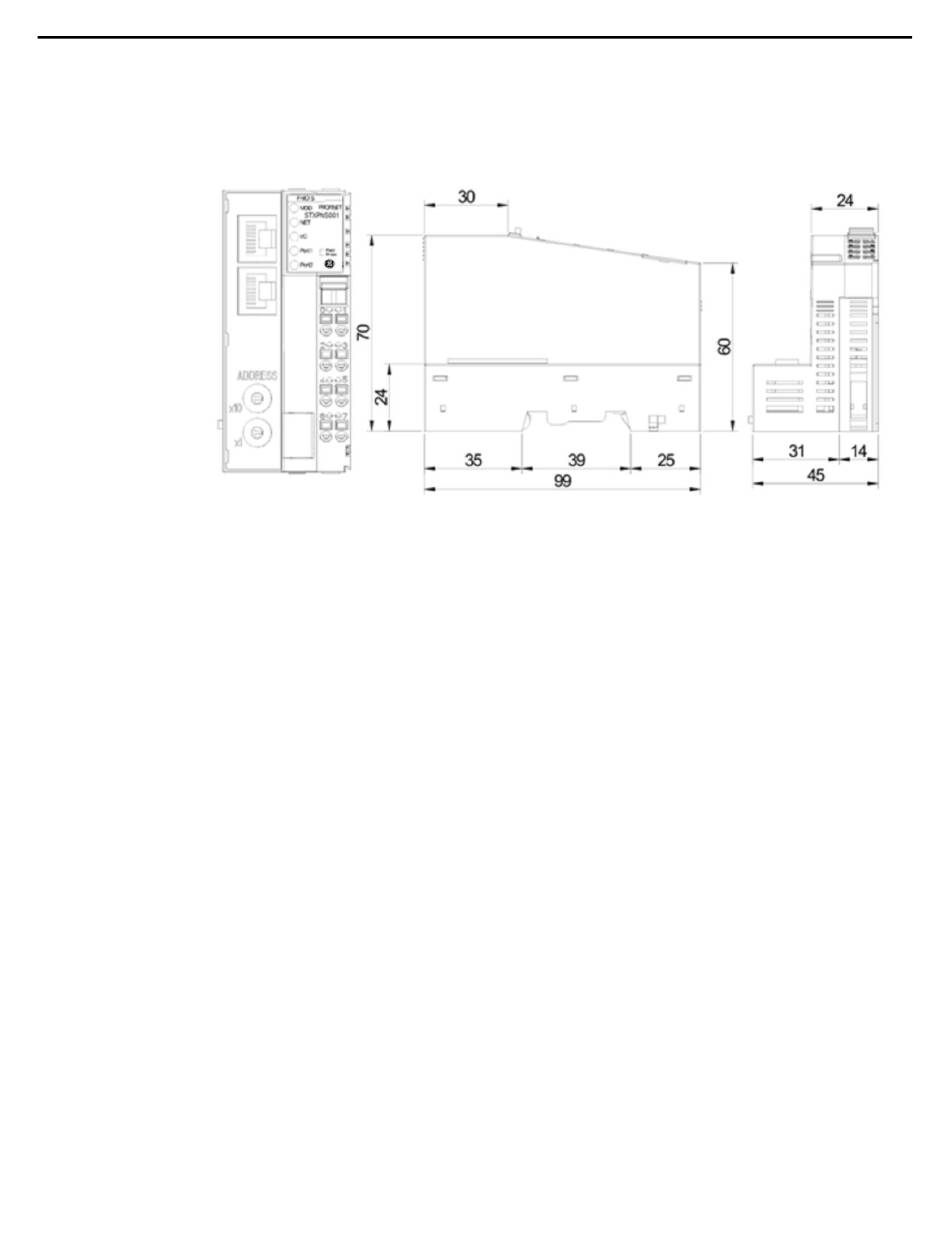

The following figure displays the dimension for STXPNS001.
Figure 38: Dimension for STXPNS001
4.1.4.1 Total IO
The number of the module assembly that can be connected is 32. The maximum length is
426mm. (These maximum length figures are considering all single wide modules. These
values need to be adjusted if double wide modules like ST-2748 are considered)
GFK-2746B
PACSystems* RSTi PROFIBUS and PROFINET Network Adapter–August 2013
Chapter 4. PROFINET Network Adapter
71
